LG LFC25760SW - REPLACING REFRIGERATOR DOOR

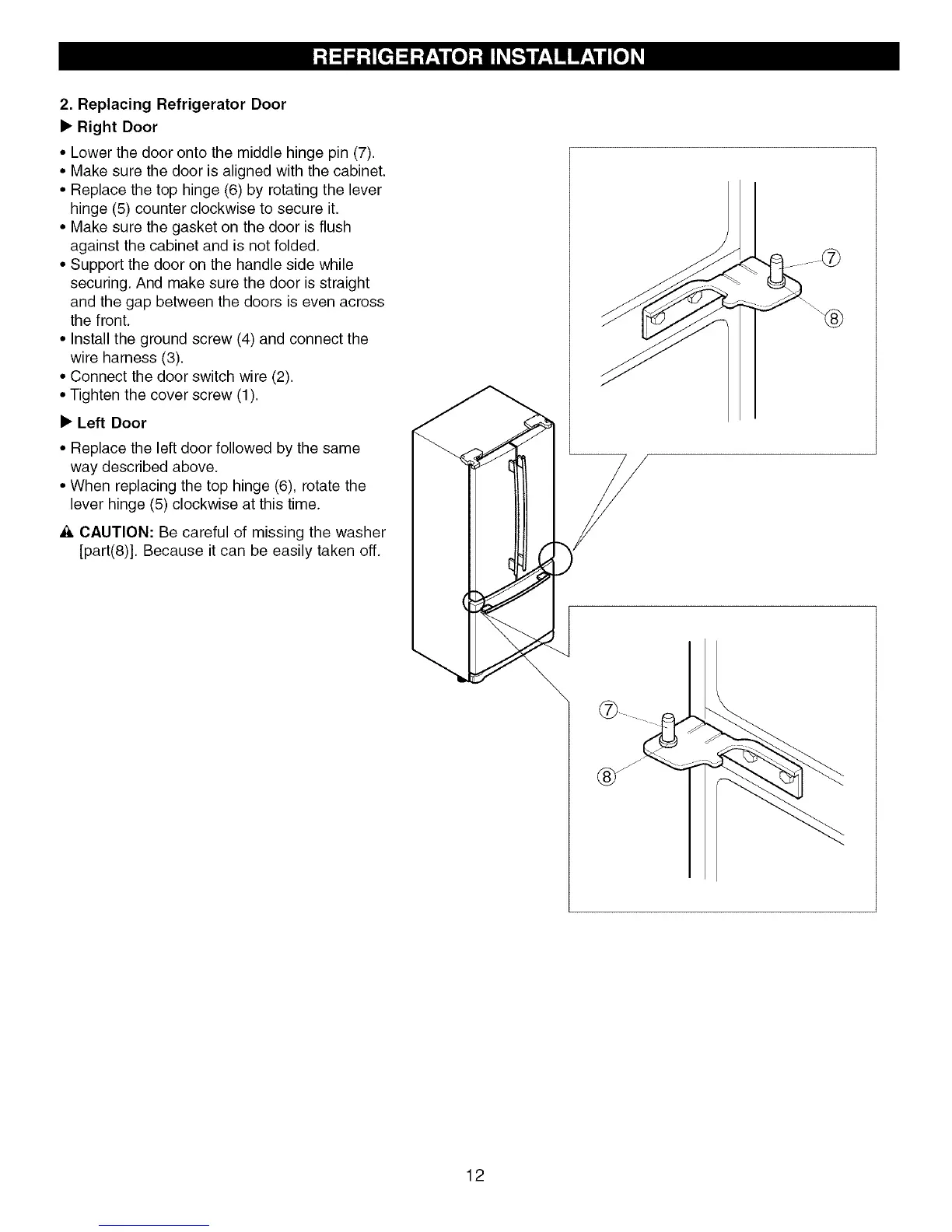

2. Replacing Refrigerator Door
• Right Door
• Lower the door onto the middle hinge pin (7).
• Make sure the door is aligned with the cabinet.
• Replace the top hinge (6) by rotating the lever
hinge (5) counter clockwise to secure it.
• Make sure the gasket on the door is flush
against the cabinet and is not folded.
• Support the door on the handle side while
securing. And make sure the door is straight
and the gap between the doors is even across
the front.
• Install the ground screw (4) and connect the
wire harness (3).
• Connect the door switch wire (2).
• Tighten the cover screw (1).
• Left Door
• Replace the left door followed by the same
way described above.
• When replacing the top hinge (6), rotate the
lever hinge (5) clockwise at this time.
_, CAUTION: Be careful of missing the washer
[part(8)]. Because it can be easily taken off.
®
