9

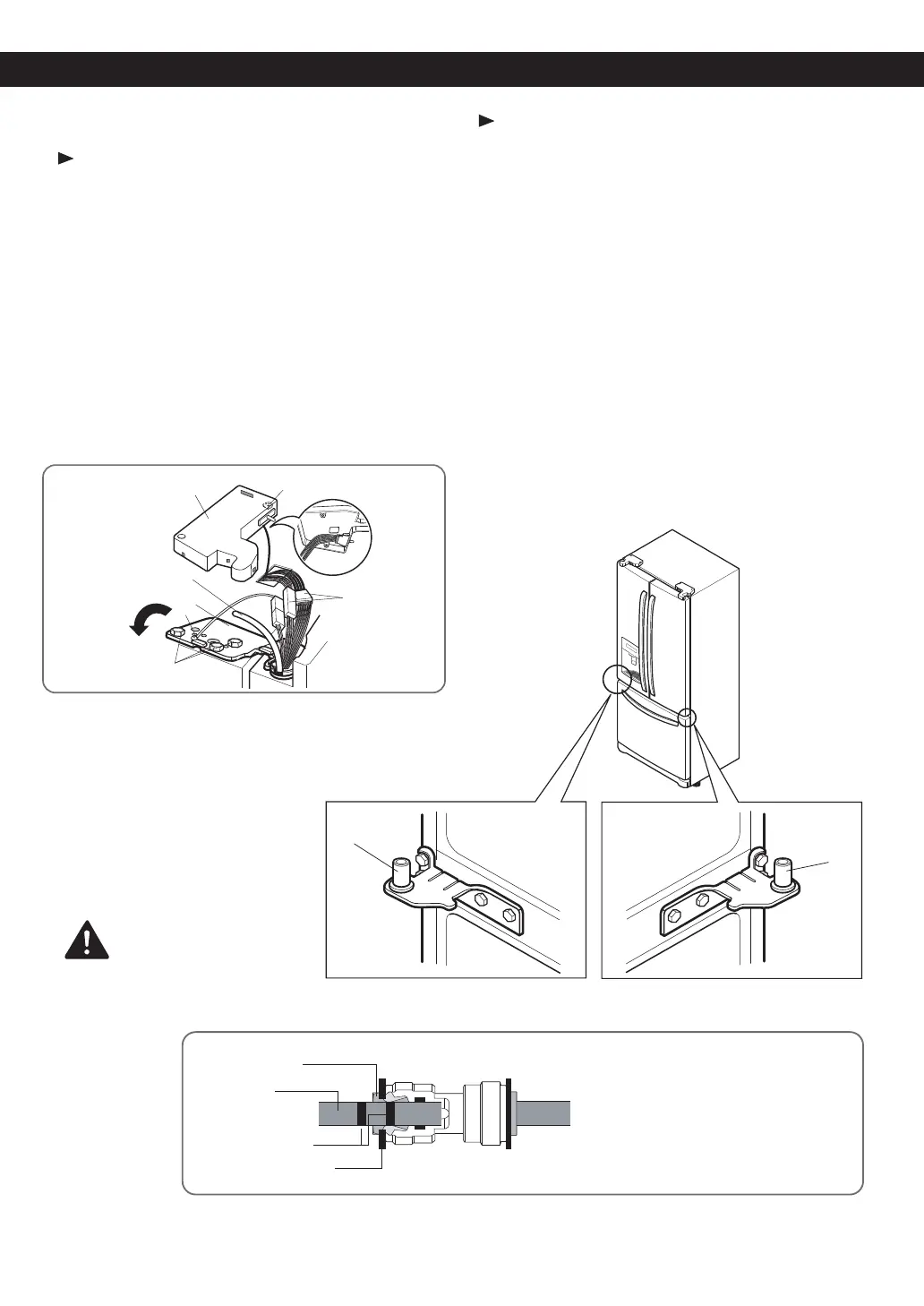

Reinstalling the Refrigerator Door
Left Door
1. Lower the door onto middle hinge pin (10).
2. Line up the holes in the top hinge with the holes in
the top of the refrigerator. Insert and tighten the
three Bolts (6) in the hinge.
3. Install the grounding screw (5) and connect the two
wire harnesses (4).
4. Push the water tube (3) located at the top of the left
door into the hole beside the left hinge on the top of
the cabinet until it exits through the back.
5. Insert the water supply tube (3) into the connector
until you see only one scale mark. Fully insert the tube
over 5/8 in. (15 mm).
6. Hook tabs on left side of hinge cover (1) under the
edge of the top hinge (7) and position the cover in
place. Insert and tighten the cover screw (1).
CAUTION
Right Door
1. Lower the door onto middle hinge pin (9).
2. Line up the holes in the top hinge with the holes in
the top of the refrigerator. Insert and tighten the three
Bolts (6) in the hinge.
3. Hook the tabs on right side of hinge cover (2) under
the edge of the top hinge (4) and position the cover in
place. Insert and tighten the cover screw (1).
REFRIGERATOR INSTALLATION
After inserting, pull the tube to
make sure that it is secure and
reinsert the clip.
Tube
Scale Mark
Collet
Clip
(9)
(10)
To Next Page
