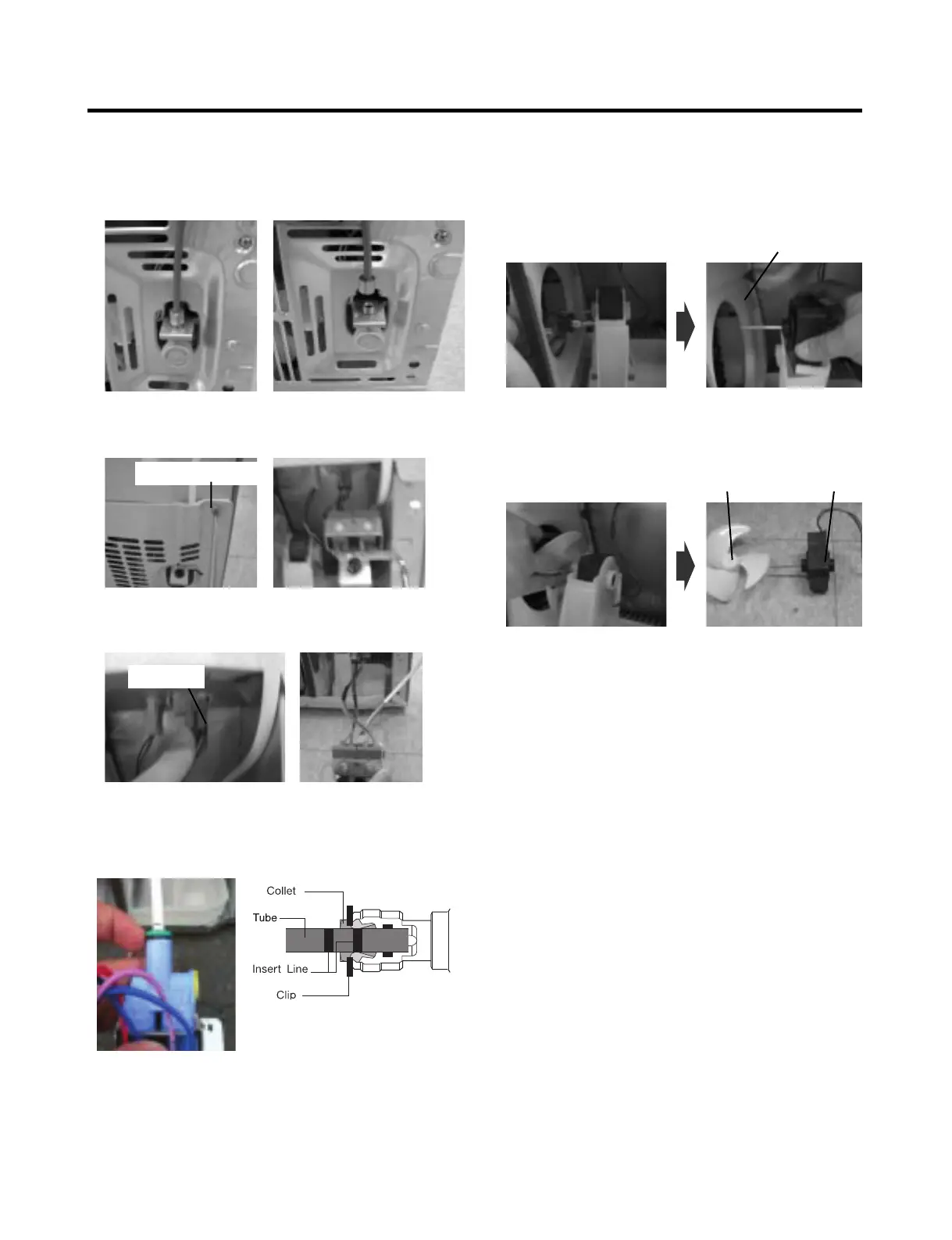

3-21 WATER VALVE DISASSEMBLY METHOD
1) Turn off the water to unit. Remove the waterline from the
valve.
3-22 FAN AND FAN MOTOR DISASSEMBLY
METHOD
1) Remove screws for the Drain Pipe Assembly and the 1
connected to the Motor Cover.
2) Remove cover and 1 screw from the valve.
3) Separate the housing and remove the valve.
4) Remove the clip, and press the collet to separate the
tube from the connector. Note: there maybe some water
in the line.
Mechanical Cover
Housing
MOTOR COVER
2) Separate the Fan Assembly and Motor, turn counter
clockwise to remove from the motor shaft.
FAN ASSEMBLY MOTOR
Assemble in reverse order. Taking care to avoid.
1. Do not to bend the tube during assembly.
2. Press the Water Dispenser button letting water pour out,
this checks for any leaks in the tube connection, this may
vary depending on the water pressure
( about 2 minutes.).
Figure 60
Figure 61
Figure 62
Figure 63
Figure 64
Figure 65
