4. Disassembly/Reassembly
- 17 -
4.1.4 Disassembly of Lower-Case Components

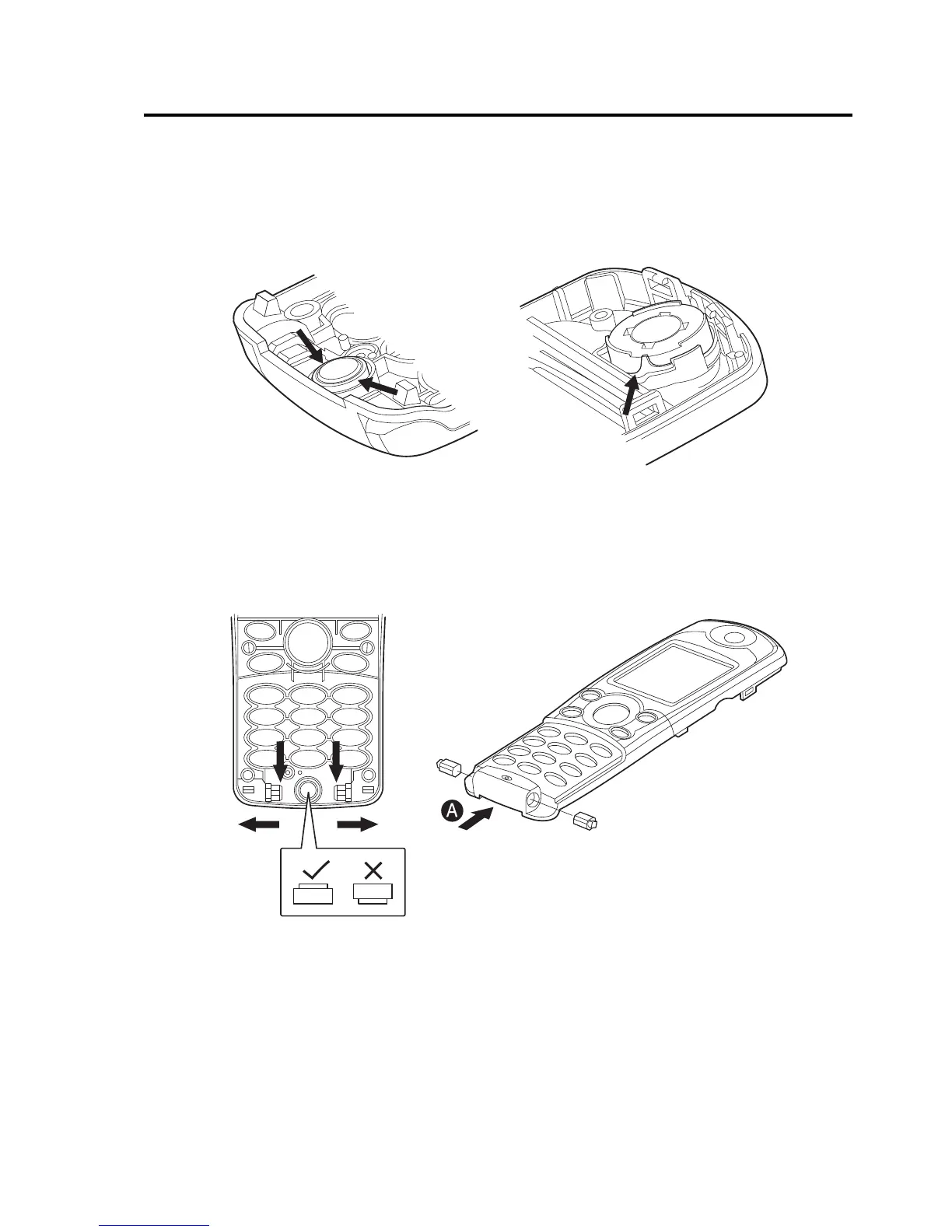

1. Use a pin to lift up the microphone to the direction as shown in fig. 4-7.
2. Use a pin to release the Receiver.
Figure 4-7. Removing the Receiver
3. Insert a '-'type driver between the hinge and the Lower case, and lift it up to remove the hinge.
4. See the cover from the A-direction shown in fig. 4-8, and assemble a pink hinge on its left and a
green hinge on its right.
Figure 4-8. Removing the Hinge
