LG LGSBWAC95

User Manual
PAGE :
DOCUMENT No :
REG. DATE : 2020.05.21
MODEL NAME: ETWCFMBC01(LGIT)
LGSBWAC95(LGE)
REV. DATE : 2020.05.21
REV.NO : V1.0
-
Copyrightⓒ. 2020. All Rights Reserved.
6 / 9

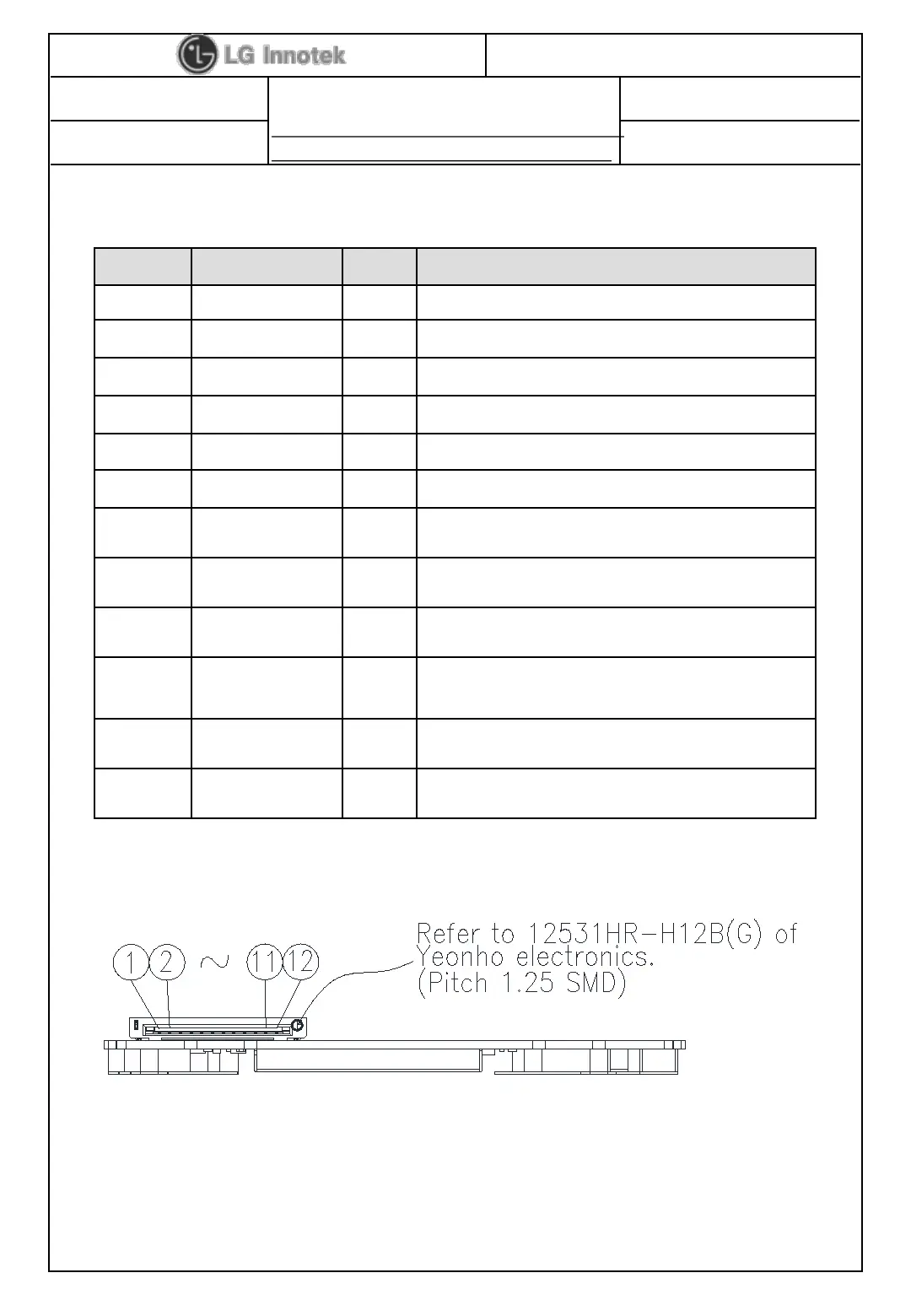

8. Pin Description
Pin No. Pin Name I/O Pin Description
1 VCC I VDD 3.3V
2 D- I/O USB Communication signal USB_DN
3 D+ I/O USB Communication signal USB_DP
4 GND - GND
5 WOWL O Wake On WLAN
6 VCC I VDD 3.3V
7 RESUME I SUSPEND_RESUME
8 GND - GND
9 RESET I Bluetooth device wake up (option)
10 WOBLE O
Host wake up.
(Signal from Wi-Fi module to the host)
11 GND - GND
12 VCC - VDD 3.3V
