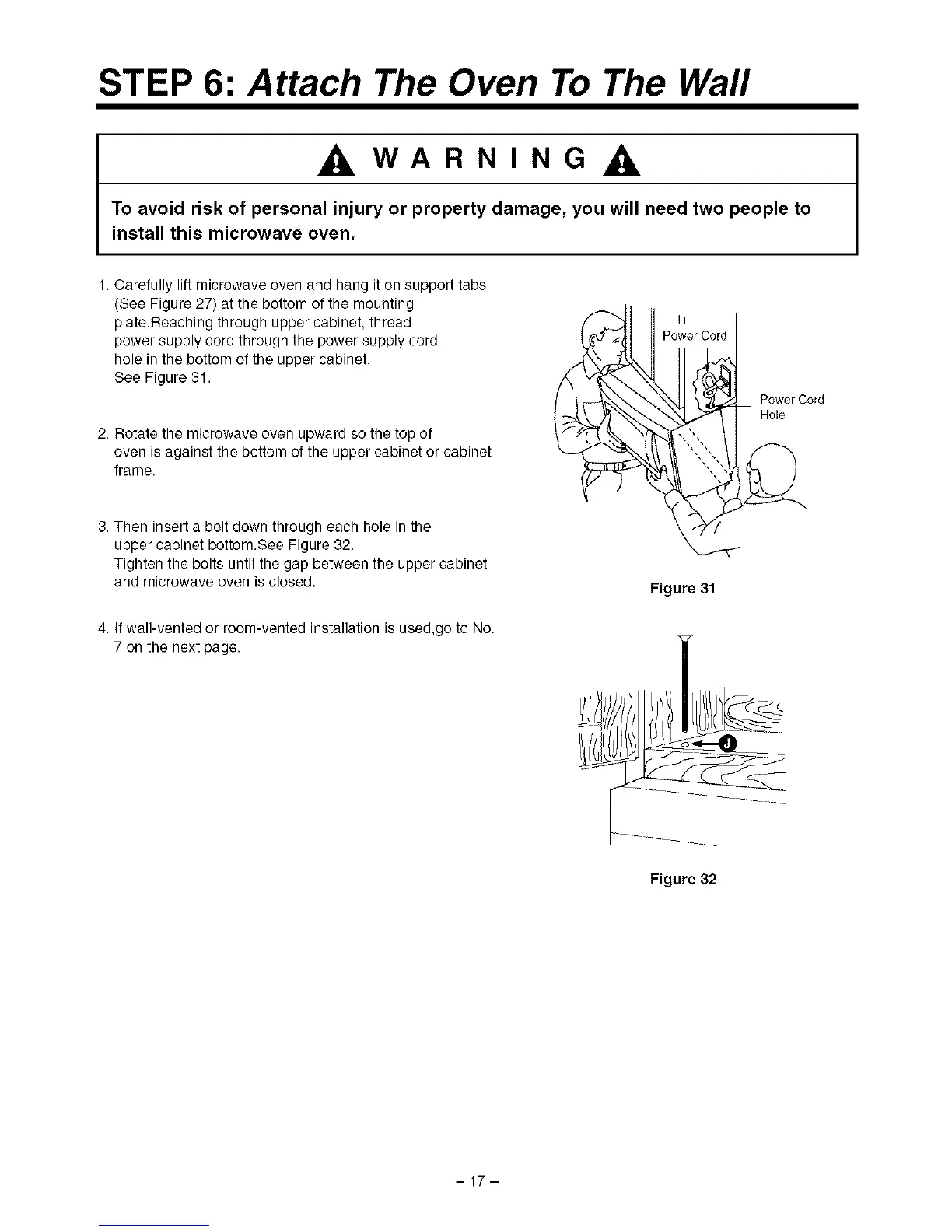

STEP 6: Attach The Oven To The Wall
_WARNING _IL
To avoid risk of personal injury or property damage, you will need two people to
install this microwave oven.
1. Carefully lift microwave oven and hang it on supped tabs
(See Figure 27) at the bottom of the mounting
plate.Reaching through upper cabinet, thread
power supply cord through the power supply cord
hole in the bottom of the upper cabinet.
See Figure 31.
2. Rotate the microwave oven upward so the top of
oven is against the bottom of the upper cabinet or cabinet
frame.
3. Then insert a bolt down through each hole in the
upper cabinet bottom.See Figure 32.
Tighten the bolts until the gap between the upper cabinet
and microwave oven is closed.
4. If wall-vented or room-vented installation is used,go to No.
7 on the next page.
II
Power Cord
Figure 31
Power Cord
Hole
Figure 32
-17-
To Next Page
