-38-

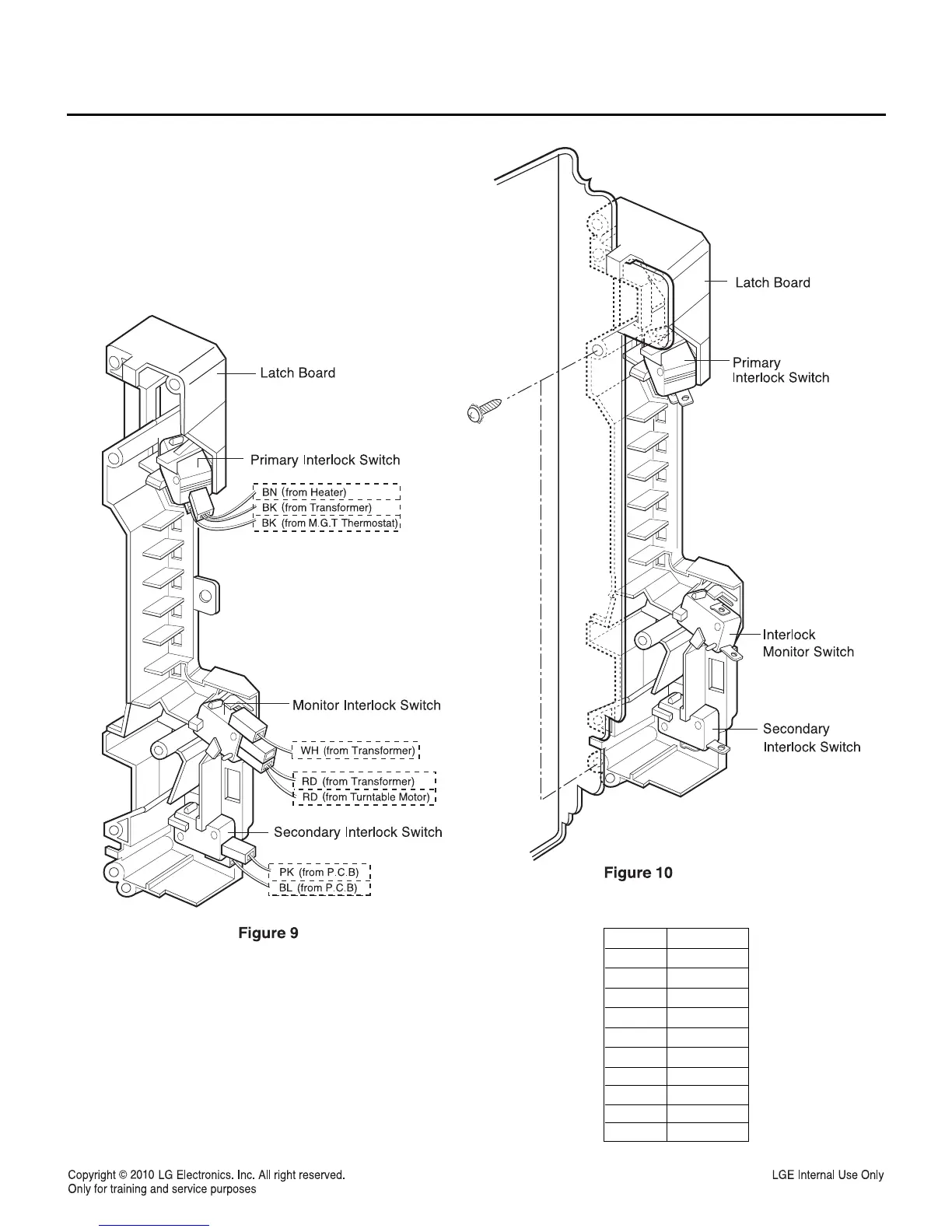

C REMOVING THE DOOR INTERLOCK
SWITCHES (Figures 9,10)
(1) Disconnect the wire leads from the interlock
switches.
(2) Remove two screws securing the Latch Board.
(3) Make necessary replacements and check
microwave energy leakage according to
ADJUSTMENT PROCEDURES on page 28
WIRE COLOR
SYMBOL COLOR
WH WHITE
BK BLACK
BN BROWN
RD RED
YL YELLOW
PK PINK
BL BLUE
GY GREY
GN GREEN
N.P.
Not Provided
