4.Reassembletheblowerwire.SeeFigure15.
5.Rotatetheunitsothattheexhaustportsfacetherearofthecabinet.SeeFigure17.Whenyouinsertblowerunit,
blowerwiremustbelikefigure16.
6.Placeblowerunitbackintocabinet.Checkthattheexhaustportsfacetowardstherearofthecabinet.SeeFigure
17.
7.Reattachtheblowerplatetocabinetsotheexhaustportsandblowerplateopeningarealigned.Attachwithone
blowerunitmountingscrewandthenoneblowerplatemountingscrew.SeeFigure18.

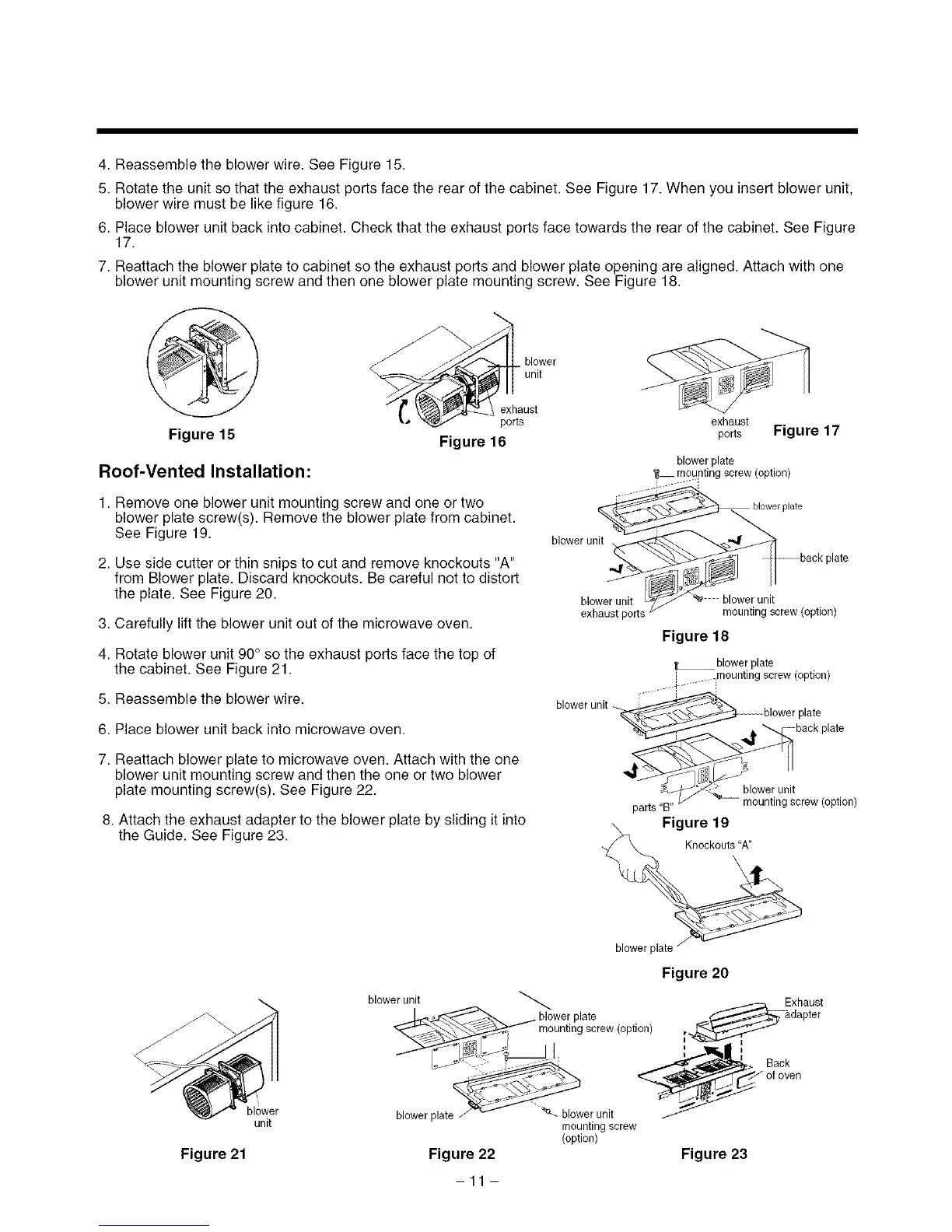

Figure 15
unitb'ewer
exhaust
ports exhaust
Figure 16 ports Figure 17
Roof-Vented Installation:
1. Remove one blower unit mounting screw and one or two
blower plate screw(s). Remove the blower plate from cabinet.
See Figure 19.
2. Use side cutter or thin snips to cut and remove knockouts "A"
from Blower plate. Discard knockouts. Be careful not to distort
the plate. See Figure 20.
3. Carefully lift the blower unit out of the microwave oven.
4. Rotate blower unit 90° so the exhaust ports face the top of
the cabinet. See Figure 21.
5. Reassemble the blower wire.
6. Place blower unit back into microwave oven.
7. Reattach blower plate to microwave oven. Attach with the one
blower unit mounting screw and then the one or two blower
plate mounting screw(s). See Figure 22.
8. Attach the exhaust adapter to the blower plate by sliding it into
the Guide. See Figure 23.
blower unit
blower plate
___ mounting screw (option)
blower plate
blower unit blower unit
exhaust ports mounting screw (option)
Figure 18
blower
blower plate
i .....mounting screw (option)
r . .d-- " i
plate
31ate
blower unit
parts "B" mounting screw (option)
Figure 19
Knockouts "A"
\
\
blower
unit
Figure 21
blower unit
blower plate
Figure 22
-11 -
blower plate
To Next Page
