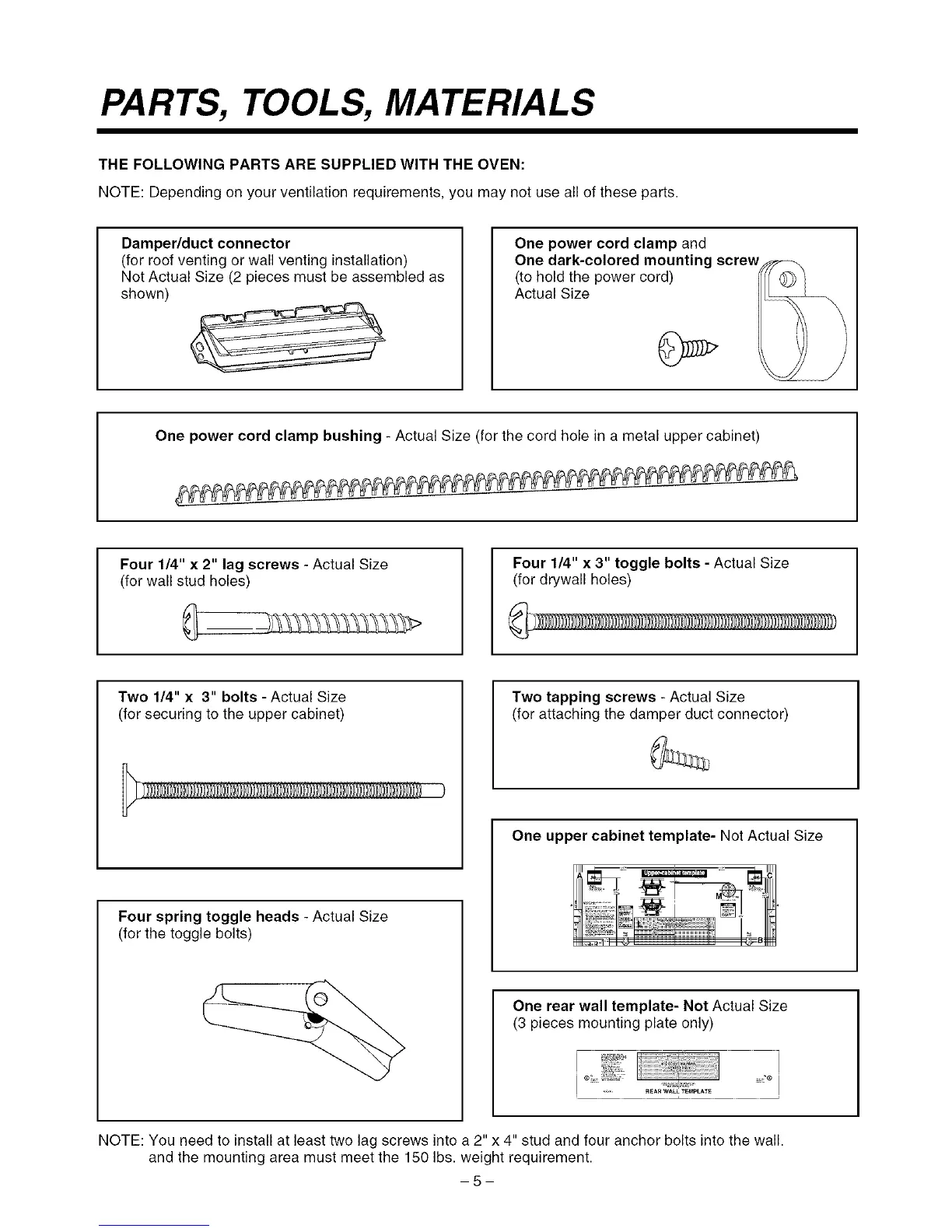

PARTS, TOOLS, MATERIALS
THE FOLLOWING PARTS ARE SUPPLIED WITH THE OVEN:
NOTE: Depending on your ventilation requirements, you may not use all of these parts.
Damper/duct connector
(for roof venting or wall venting installation)
Not Actual Size (2 pieces must be assembled as
shown)
One power cord clamp and
One dark-colored mounting screw
(to hold the power cord)
Actual Size
One power cord clamp bushing - Actual Size (for the cord hole in a metal upper cabinet)
Four 1/4" x 2" lag screws - Actual Size
(forwall stud holes)
C
Four 1/4" x 3" toggle bolts - Actual Size
(for drywall holes)
Two tapping screws - Actual Size
(for attaching the damper duct connector)
One upper cabinet template- Not Actual Size
Two 1/4" x 3" bolts - Actual Size
(for securing to the upper cabinet)
Four spring toggle heads - Actual Size
(for the toggle bolts)
One rear wall template- Not Actual Size
(3 pieces mounting plate only)
_EARWALLT_PLA_
NOTE: You need to install at least two lag screws into a 2" x 4" stud and four anchor bolts into the wall.
and the mounting area must meet the 150 Ibs. weight requirement.
--5--
