HOW TO REMOVE THE F.P.C. CONNECTOR

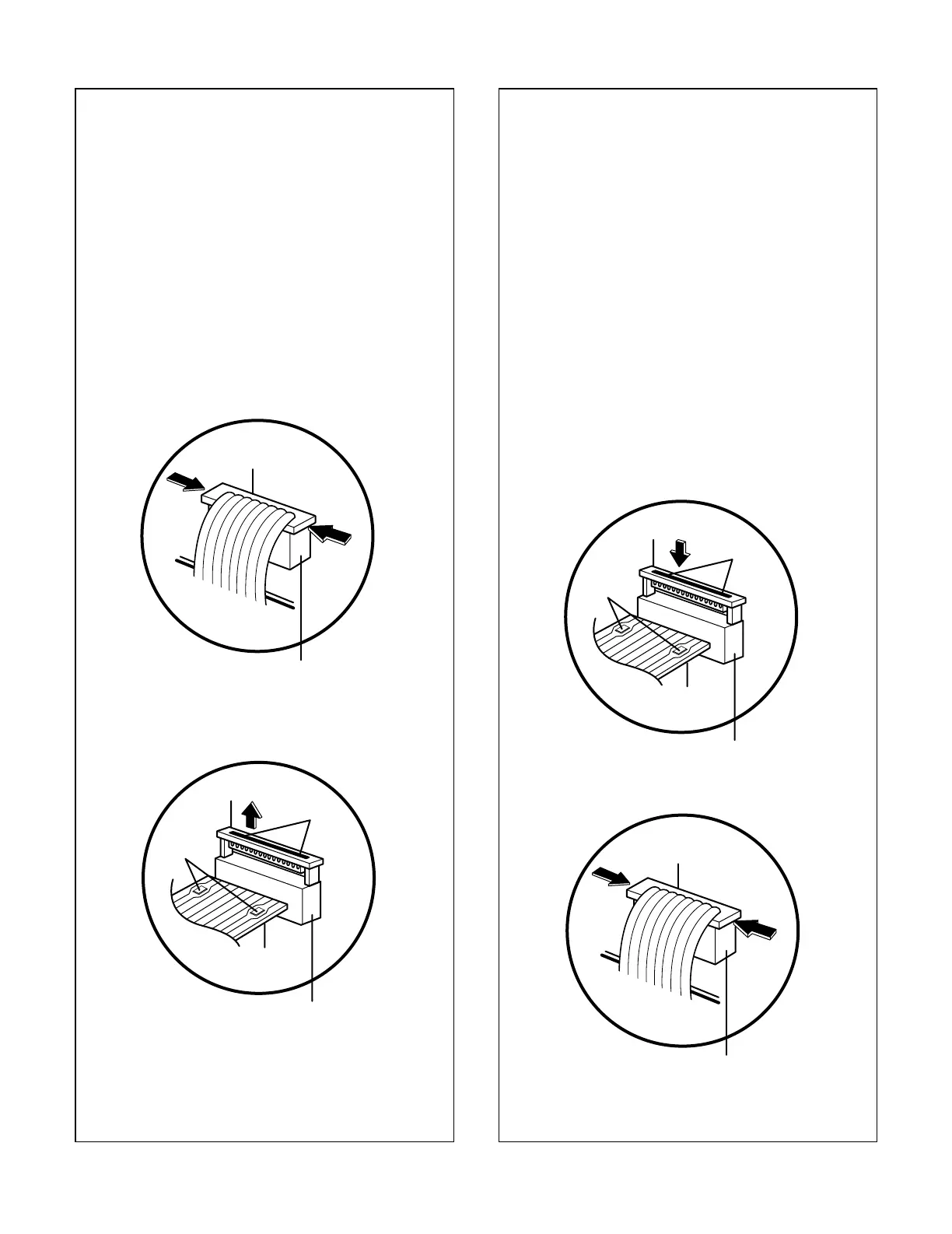

Follow the steps below as illustrated in Figures 4
and 5 to remove the F.P.C.connector.
(1) Hold the edges of the plastic fastener with
thumb and forefinger.
(Figure 4)
(2) Lift up the lever of the plastic fastener from
the terminal socket by lightly pressing the
lever end with forefinger.
(Figure 5)
(3) Remove the F.P.C.connector from the
terminal socket.
HOW TO INSERT THE F.P.C. CONNECTOR
Follow the steps below as illustrated in Figures 6
and 7 to insert the F.P.C. connector.
(1) Insert the F.P.C. connector into the terminal
socket securely with the fingers.
(2) Hold the plastic fastener with thumb and
forefinger of the other hand, and push it
slowly into the terminal socket. (Figure 6)
NOTE: When reconnecting the F.P.C.
connector make sure that the holes
on the F.P.C. connector are properly
engaged with the hooks on the plastic
fastener
(3) Lock the level of the plastic fastener into the
hook of the terminal socket securely by
releasing the fingers.
(Figure 7)
Figure 4
Figure 6
Figure 7
Figure 5
F.P.C.
Connector
Terminal
socket
Plastic
fastener
Holes
Hook
Plastic fastener
Terminal
socket
F.P.C.
Connector
Plastic
fastener
Terminal
socket
F.P.C.
Connector
Terminal
socket
Plastic fastener
Holes
Hook
