7-6
B. REMOVING THE OUTSIDE CASE
(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the outside case.
(2) Remove two screws securing it to the air duct.
(3) Remove the mounting plate by turning the screws
(1 or 2 screws)securing it to the out case.
(4) Remove two screws on the left central edge and
two screws on the right central edge of Base plate.
Remove the Mount, All from the outside case by
removing one screw securing it to the outside case.
(5) Remove four screws of the rear cavity.
(6) Remove the outside case.

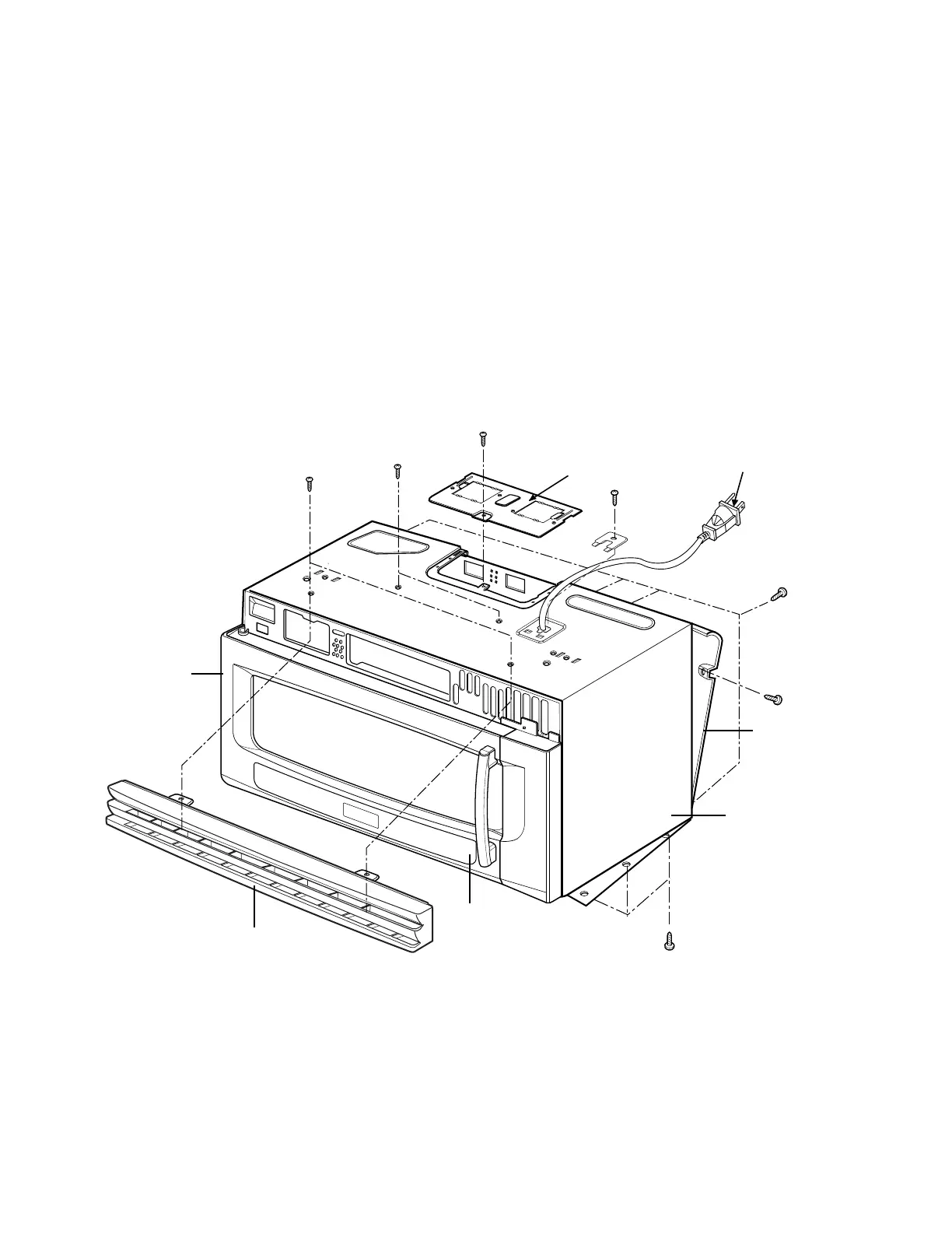

Mount,All
Vent Grille
Out Case
Mounting
Plate
Power cord
Door
Controller
Figure 8
To Next Page
