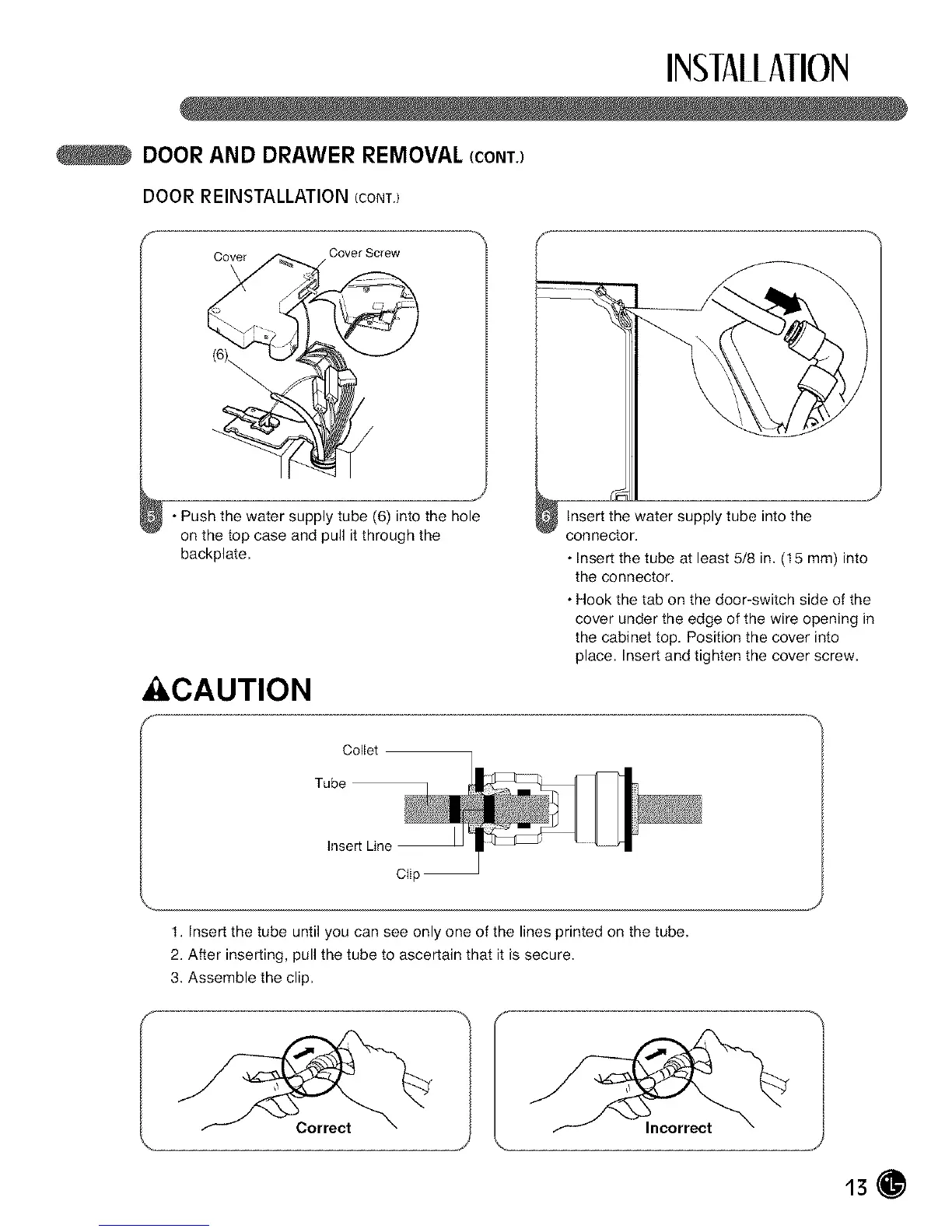

INSTAllATION
DOOR AND DRAWER REMOVAL (CONT.)
DOOR REINSTALLATION (cont.)
Cover Cover Screw
• Push the water supply tube (6) into the hole
on the top case and pull it through the
backplate.
&CAUTION
f
Insert the water supply tube into the
connector,
• Insert the tube at least 5/8 in, (15 mm) into
the connector,
• Hook the tab on the door-switch side of the
cover under the edge of the wire opening in
the cabinet top. Position the cover into
place, Insert and tighten the cover screw,
Collet
Tube
Insert Line
Clip
1. Insert the tube until you can see only one of the lines printed on the tube.
2. After inserting, pull the tube to ascertain that it is secure.
3. Assemble the clip.
Correct
J
Incorrect
J
13
