Applicable :only with symptoms with every repair

Bulletin Type: SVC Notice Parts Others


[SVC Guide] Using the Leg Stopper Assembly to prevent grinding against drain pans
Service Bulletin
Product : Washing Machine
Bulletin # : DFZ201900156-01
Release Date : 11/01/2019
Applicable for Serial Number : 901TN******* ~
Page 1
Applicable for models: WT7800CW (T1872EFHU); WT7800CV (T1872EFHU5); WT7900HBA (T1872EFHSLU)
Symptoms Grinding noise, no spin, burning smell
Cause
If the customer is using a drain pan with ribs on, the rotor
will make contact with the ribs or drain pipe when the tub is
full. During spin this will make a loud grinding noise.

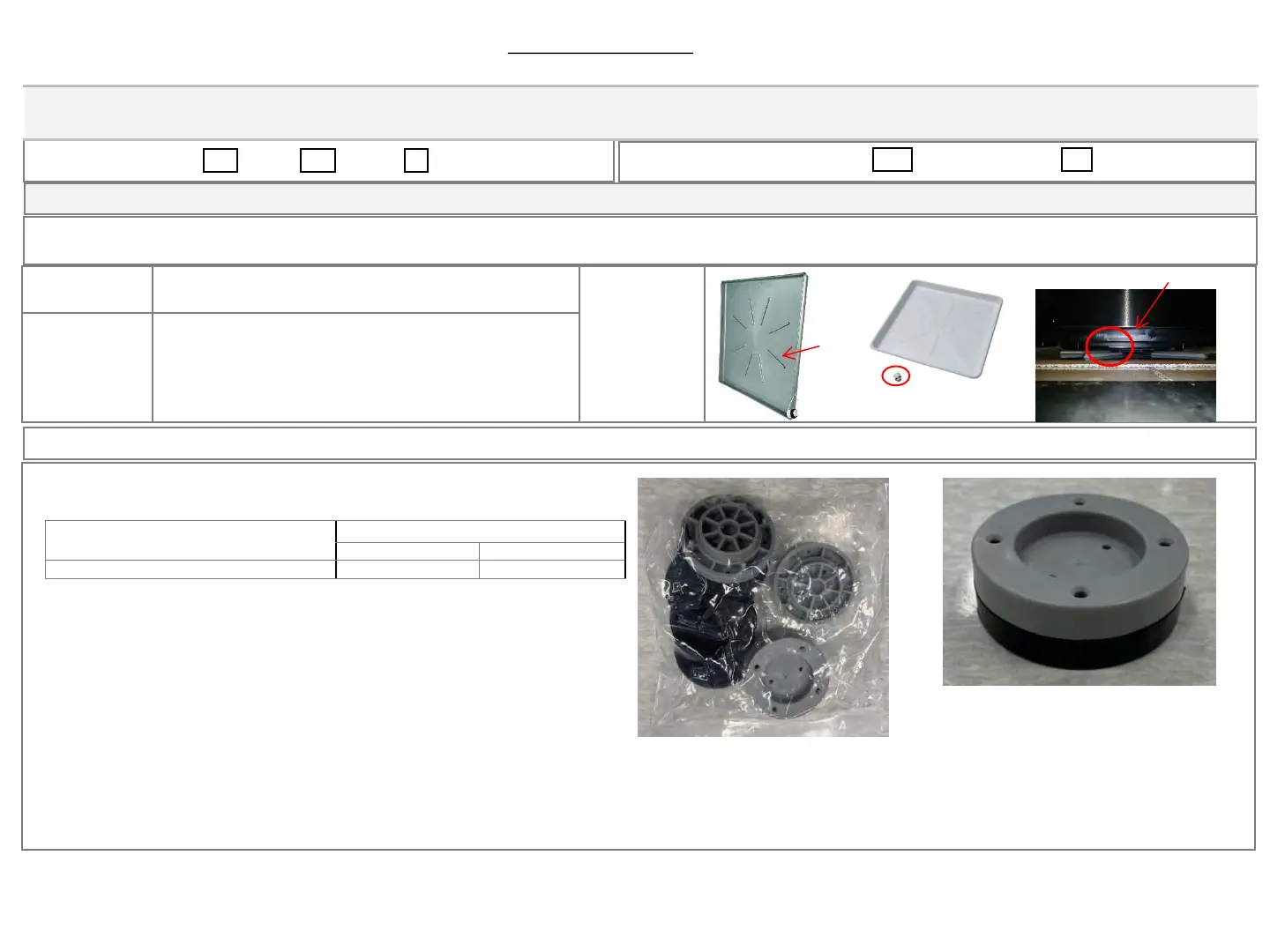

Current and New (Visual / Part number & Name etc)
Description
Adding Stopper
Before After
Leg Stopper Assembly
NA 4621ER2001K
Note: The repair instructions were moved to the second page.
Ribs
Drain pipe
Touching
Leg Stopper Assembly
Individual Leg Stopper
