2.2 AIR HANDLING PARTS
2.2.1 ELECTRIC HEATER
(ELECTRIC HEATER MODEL ONLY)
1. Remove the front grille.(Refer to section 2.1.1)
2. Remove the control box assembly.
(Refer to section 2.1.2)
3. Remove the 4 screws which fasten the Evaporator.
(See Figure 5)
4. Remove the top cover assembly, net steel, brace.
(See Figure 6)
5. Remove the 6 screws which fasten the Air-guide.
6. Pull the Air-guide assembly out from the unit.
(See Figure 7)
7. Remove the 2 screws which fasten the electric
heater in the left hand side.
8. Pull the electric heater towards left for a while and
then lift up vertically to disassemble it completely
from Air guide.

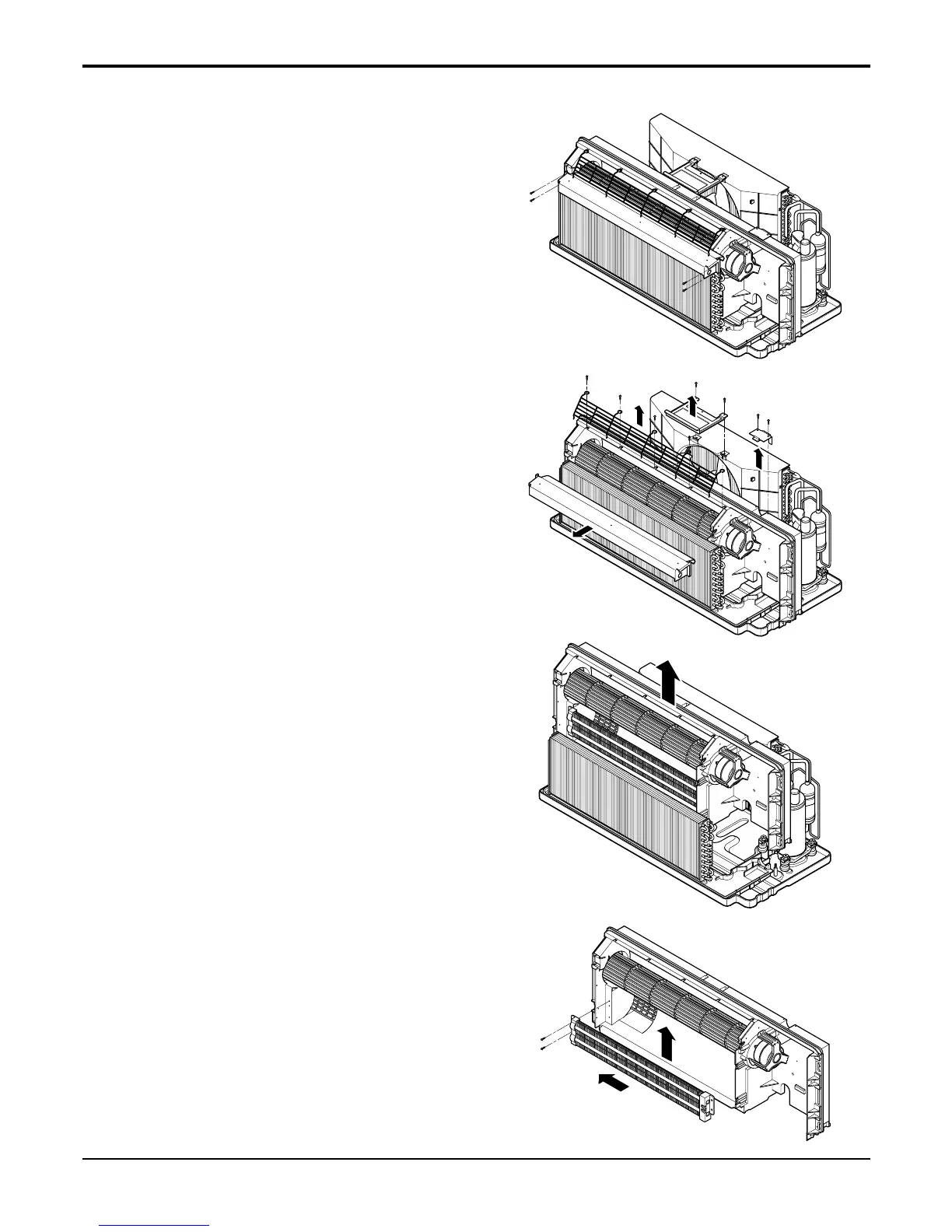

Figure 5
Figure 6
Figure 7
