8) LIGHTING CIRCUITS OF KEY BUTTON INPUT AND DISPLA
Y P
ARTS

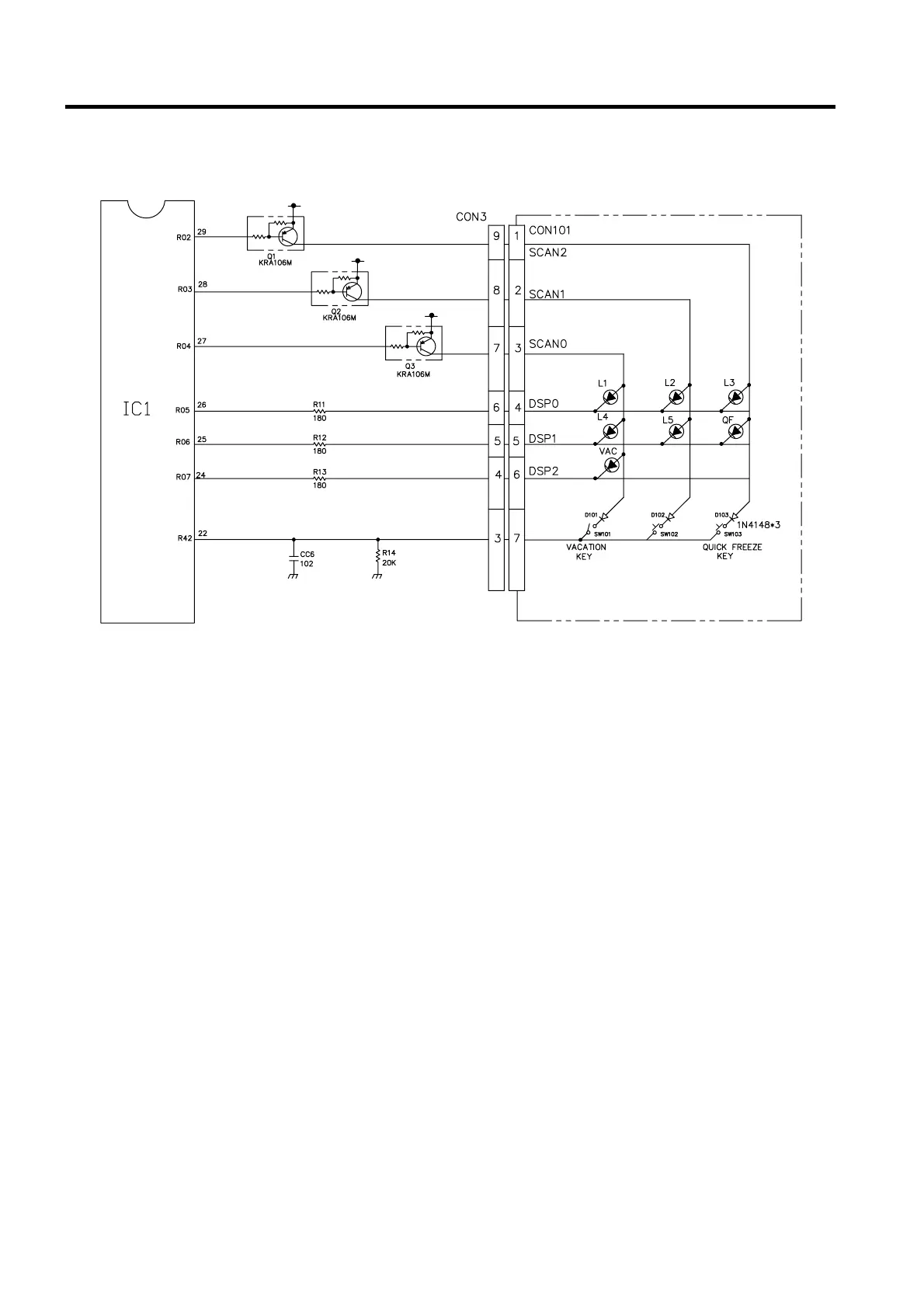

The above circuit is to judge the operation conditions of function key and to light each function indicating LED. It is operated
by SCAN method.
- 27
-
FREEZER TEMP
CONTROL KEY
DISPLAY PART
26
28
Table of Contents
Table of Contents
2
Safety Precautions
2
Servicing Precautions
3
Specifications
4
Parts Identification
5
Replacement of Door Opening Type
6
Disassembly
7
Door
7
Door Switch
7
Fan and Fan Motor
7
Def' Control Asm
8
Lamp
8
Adjustment
9
Compressor
9
Ptc-Starter
9
Olp (over Load Protector)
10
Circuit Diagram
10
Troubleshooting
11
Compressor and Electric Components
11
Ptc and Olp
12
Another Electric Component
13
Service Diagnosis Chart
14
Refrigerating Cycle
15
Micom Function & Pcb Circuit Explanation
17
Replacement Parts List
30
Exploded View
34
