LG LRBP1031T Service Manual

1. PRECAUTION
1) Before reversing the door, first of all, you should take
out food and accessories like shelves or trays which are
not fixed in the refrigerator.
2) Use Torque Wrench or Spanner to fix or remove the
bolt.
3) Don't lay the refrigerator down in working with it, it will
cause to get out of order.
4) Be careful not to drop the door in disassembling or
assembling the freezer or the refrigerator door.

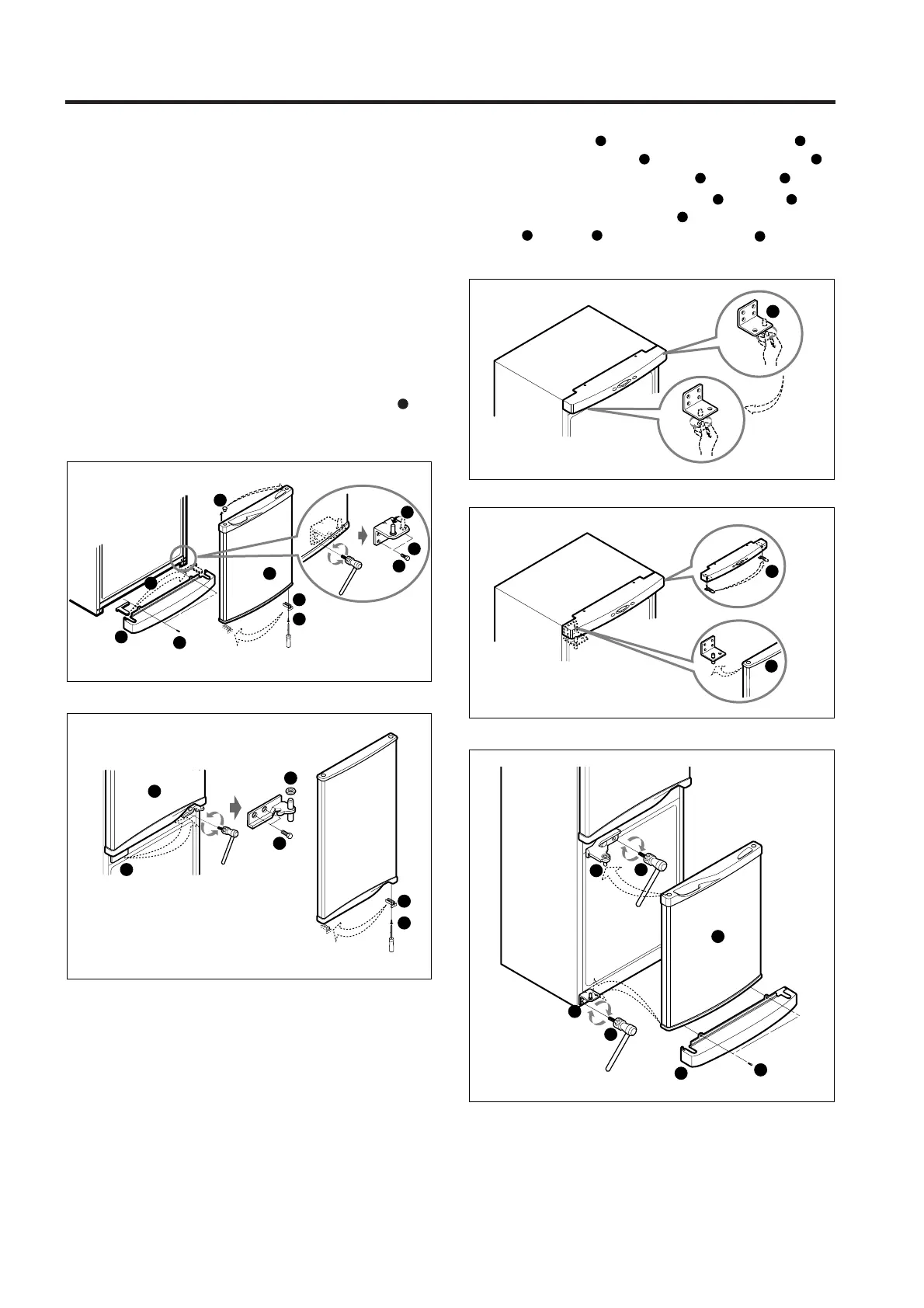

2. HOW TO REVERSE THE DOORS
1) Seperate screw ➋ and remove lower cover ➊ and move
cap lower cover
➌. And, seperate screw ➍, lower hinge
➎, and remove pin ➏. Separating the freezer door in
opening, and more the position the cap
➐.
Move the position of bracket door
➑ and screw ➒.
2) Separating screw and remove the center hinge
and the refrigerator door . Move the position of cap .
Move the position of bracket door and screw .
3) Move the position of upper hinge pin , and cap .
Assemble the refrigerator door . Assemble center
hinge and bolt . Assemble freezer door .
Assemble the lower hinge
➎, bolt ➍ and lower cover ➊.
REPLACEMENT OF DOOR OPENING TYPE
- 6 -
21
7
2
3
1
21
4
6
5
8
9
14
15
12
11
5
4
21
10
2
1
12
13
10
11
16
17
1110
12
16 17
13
15
12
11 10
21
14
Note: Reversing the doors is not covered by the
warranty.
