LG LRDCS2603 Series User Manual

14 INSTALLATION
Removing/Assembling the
Handles
When moving the refrigerator through a narrow
opening, removing the doors is preferred.
The appearance of the handles may vary from
what is shown.
WARNING
• When assembling or disassembling the
refrigerator handles, grasp the handle rmly to
avoid dropping it.
• Do not swing the handle into nearby people or
animals.
• Make sure that the bracket hole of the handle
ts properly into the stopper bolt of the door.
Assemble the set screws to x the handle into
place.
• Make sure that there is not a gap between the
door and handle after assembling the handle.
Tools Needed
• 3/32 in. Allen wrench
• 1/8 in. Allen wrench
• 1/4 in. Allen wrench

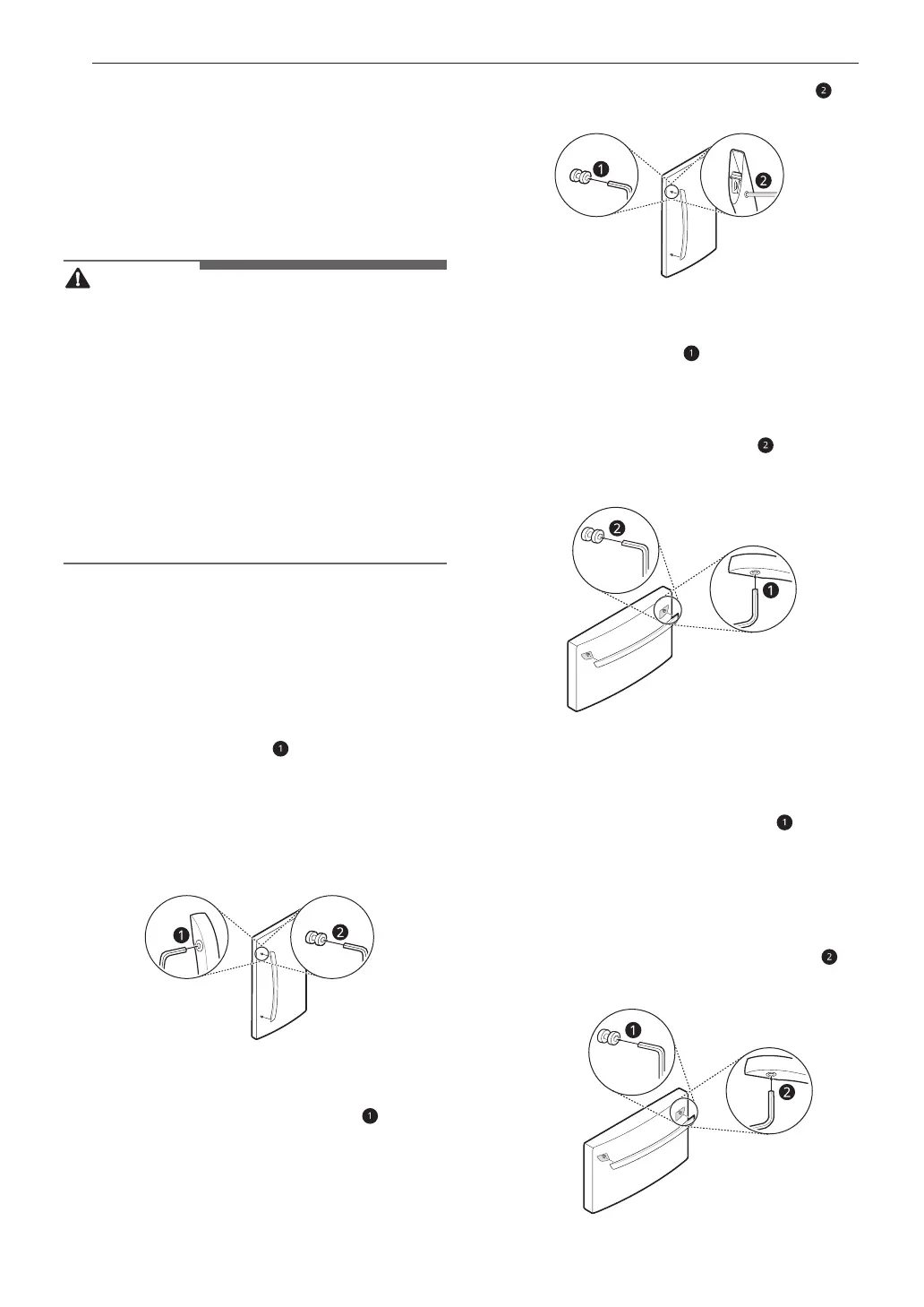

Loosen the set screws with a 3/32 in. Allen
wrench and remove the handle.
Loosen the set screws located on the lower
side of the handle with a 1/8 in. Allen wrench
and remove the handle.
Assemble the mounting fasteners at both
ends of the handle with a 1/4 in. Allen wrench.
Assemble the mounting fasteners at both
ends of the handle with a 1/4 in. Allen wrench.
Loosen the mounting fasteners that
connect to the refrigerator door and handle
using a ¼ in. Allen wrench, and remove the
mounting fasteners.
Loosen the mounting fasteners with a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Place the handle on the door by tting the
handle footprints over the mounting
fasteners and tightening the set screws
with a 1/8 in. Allen wrench.
Place the handle on the door by tting the
handle footprints over the mounting
Removing the Refrigerator Handles
Removing the Refrigerator Handles
Assembling the Freezer Drawer
Handle
Removing the Refrigerator Handles
1
1
1
1
2
2
2
2
fasteners and tightening the set screws
with a 3/32 in. Allen wrench.
