13INSTALLATION
ENGLISH
Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 27 inches (686 mm) in front of the refrigerator to open the
doors, and at least 2 inches (51 mm) between the back of the refrigerator and the wall.

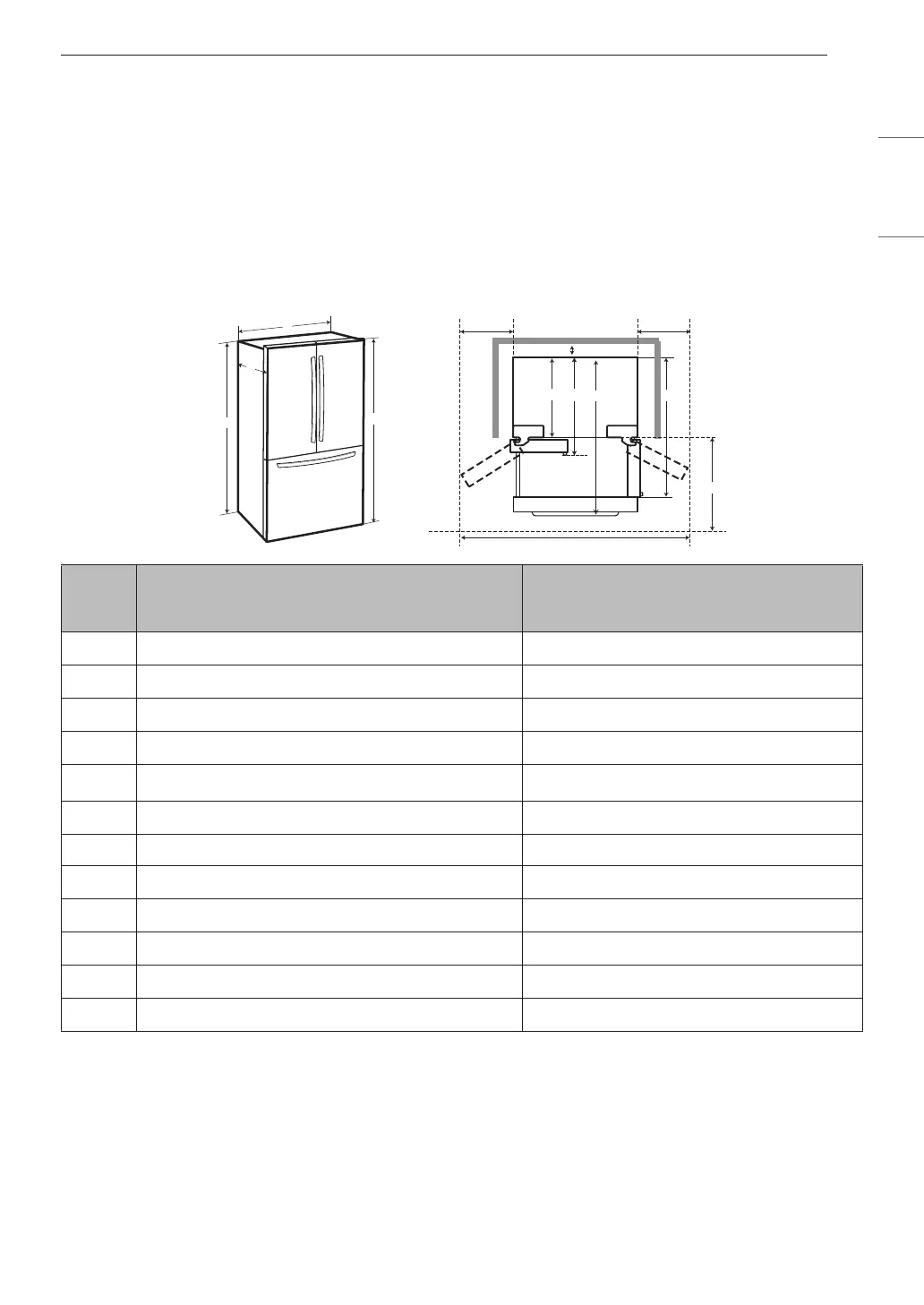

- Dimension/Clearance
LRFCS2503* / LRFCS2523* / LRFCS25D3*
LM65BGSK / LRFNS2503*
)mm 548( "4/1 33eldnaH tuohtiw htpeDA
)mm 338( "8/7 23htdiWB
)mm 0471( "2/1 86esaC fo poT ot thgieHC
)mm 4771( "8/7 96egniH fo poT ot thgieHD
)mm 15( "2ecnaraelC kcaBE
Case Edge Clearance (Door Fully Open) 14 5/8” (370 mm)
59” (1495 mm)
F
Width (Door Fully Open without Handle)
G
)mm 847( "2/1 92rooD tuohtiw htpeDH
)mm 998( "2/1 53eldnaH htiw htpeDI
J Depth (Total with Freezer Drawer Open) 53 3/8" (1355 mm)
K Depth (Total with Door Open 90°) 46 3/4" (1185 mm)
)mm 686( "72ecnaraelC tnorFL
B
A
C
D
H
G
K
J
E
F F
L
I
