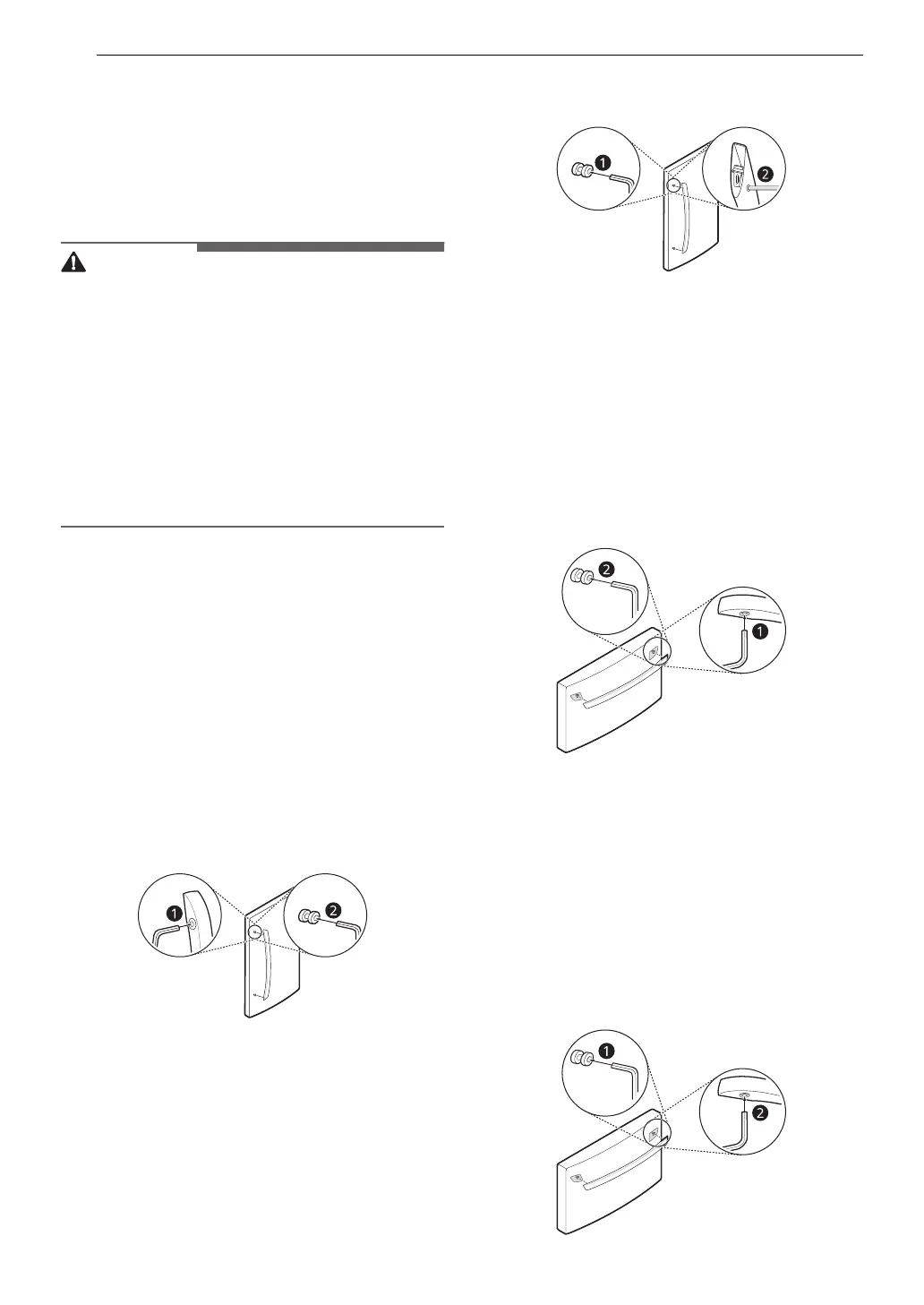

14 INSTALLATION
Removing/Assembling the
Handles
When moving the refrigerator through a narrow
opening, removing the doors is preferred.
The appearance of the handles may vary from
what is shown.
WARNING
When assembling or disassembling the
refrigerator handles, grasp the handle firmly to
avoid dropping it.
Do not swing the handle into nearby people or
animals.
Make sure that the bracket hole of the handle
fits properly into the stopper bolt of the door.
Assemble the set screws to fix the handle into
place.
Make sure that there is not a gap between the
door and handle after assembling the handle.
Tools Needed
3/32 in. Allen wrench
1/8 in. Allen wrench
1/4 in. Allen wrench
Removing the Refrigerator Handles
1 Loosen the set screws a with a 3/32 in. Allen
wrench and remove the handle.
2 Loosen the mounting fasteners b that
connect to the refrigerator door and handle
using a ¼ in. Allen wrench, and remove the
mounting fasteners.
Assembling the Refrigerator
Handles
1 Assemble the mounting fasteners a at both
ends of the handle with a 1/4 in. Allen wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws
b
with a 3/32 in. Allen wrench.
Removing the Freezer Drawer
Handle
1 Loosen the set screws a located on the lower
side of the handle with a 1/8 in. Allen wrench
and remove the handle.
2 Loosen the mounting fasteners b with a 1/4
in. Allen wrench, and remove the mounting
fasteners.
Assembling the Freezer Drawer
Handle
1 Assemble the mounting fasteners a at both
ends of the handle with a 1/4 in. Allen wrench.
2 Place the handle on the door by fitting the
handle footprints over the mounting
fasteners and tightening the set screws
b
with a 1/8 in. Allen wrench.
