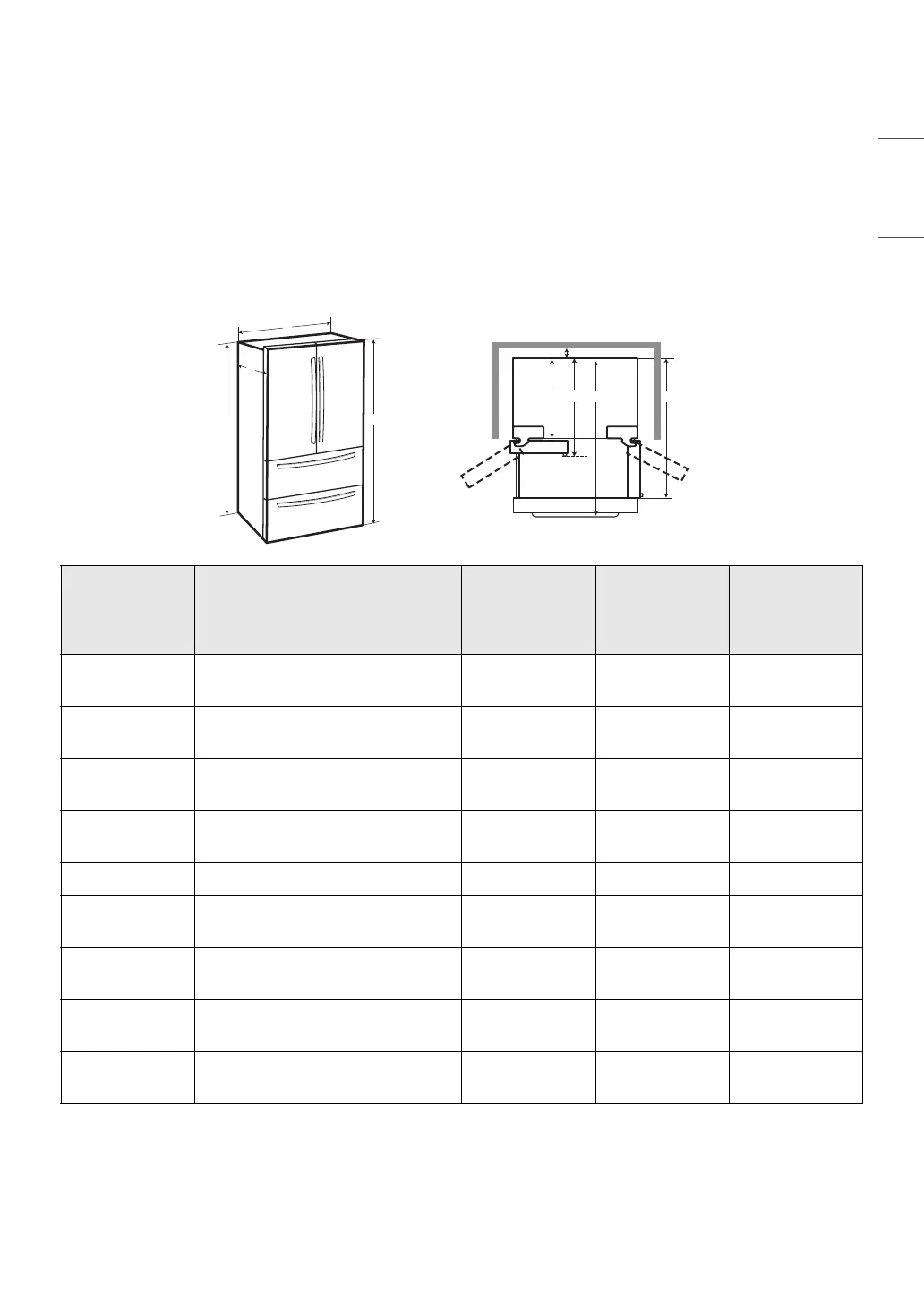

Dimensions and Clearances
• Check the dimensions of the appliance and the installation path to ensure there is sufficient room to
move the refrigerator through doors or narrow openings.
• If an opening is too narrow to fit the refrigerator through, remove the refrigerator doors. See Removing/
Assembling the Doors and Drawers in this manual.
• The installation location chosen for the refrigerator should allow space behind the unit for connections
and airflow and space in front to open the doors and drawers.
• Too small of a distance from adjacent items may result in lowered freezing capability and increased
electricity consumption charges. Allow at least 24 inches (610 mm) in front of the refrigerator to open the
doors, and at least 2 inches (50.8 mm) between the back of the refrigerator and the wall.
- Dimension/Clearance LRFCS29D6* LFCS27596*
LFCC23596*
LFCC22426*
LRFCC23D6*
A Depth without Handle 33 3/4" (857
mm)
32 3/8" (822
mm)
28 5/8" (728
mm)
B Width 35 3/4" (908
mm)
35 3/4" (908
mm)
35 3/4" (908
mm)
C Height to Top of Case 68 1/2" (1737
mm)
68 1/2" (1737
mm)
68 1/2" (1737
mm)
D Height to Top of Hinge 69 3/4" (1772
mm)
69 3/4" (1772
mm)
69 3/4" (1772
mm)
E Back Clearance 2" (50 mm) 2" (50 mm) 2" (50 mm)
F Depth without Door 29 7/8'' (759
mm)
28 1/2" (724
mm)
24 3/4" (628
mm)
G Depth with Handle 36 1/4" (921
mm)
34 7/8˝ (886
mm)
31 1/4˝ (792
mm)
H Depth (Total with Freezer Drawer
Open)
36 1/4" (921
mm)
54 3/4˝ (1391
mm)
51" (1297 mm)
I Depth (Total with Door Open 90°) 48 5/8'' (1234
mm)
47 1/8" (1197
mm)
43 3/8" (1103
mm)
B
A
C
D
F
I
H
E
G
