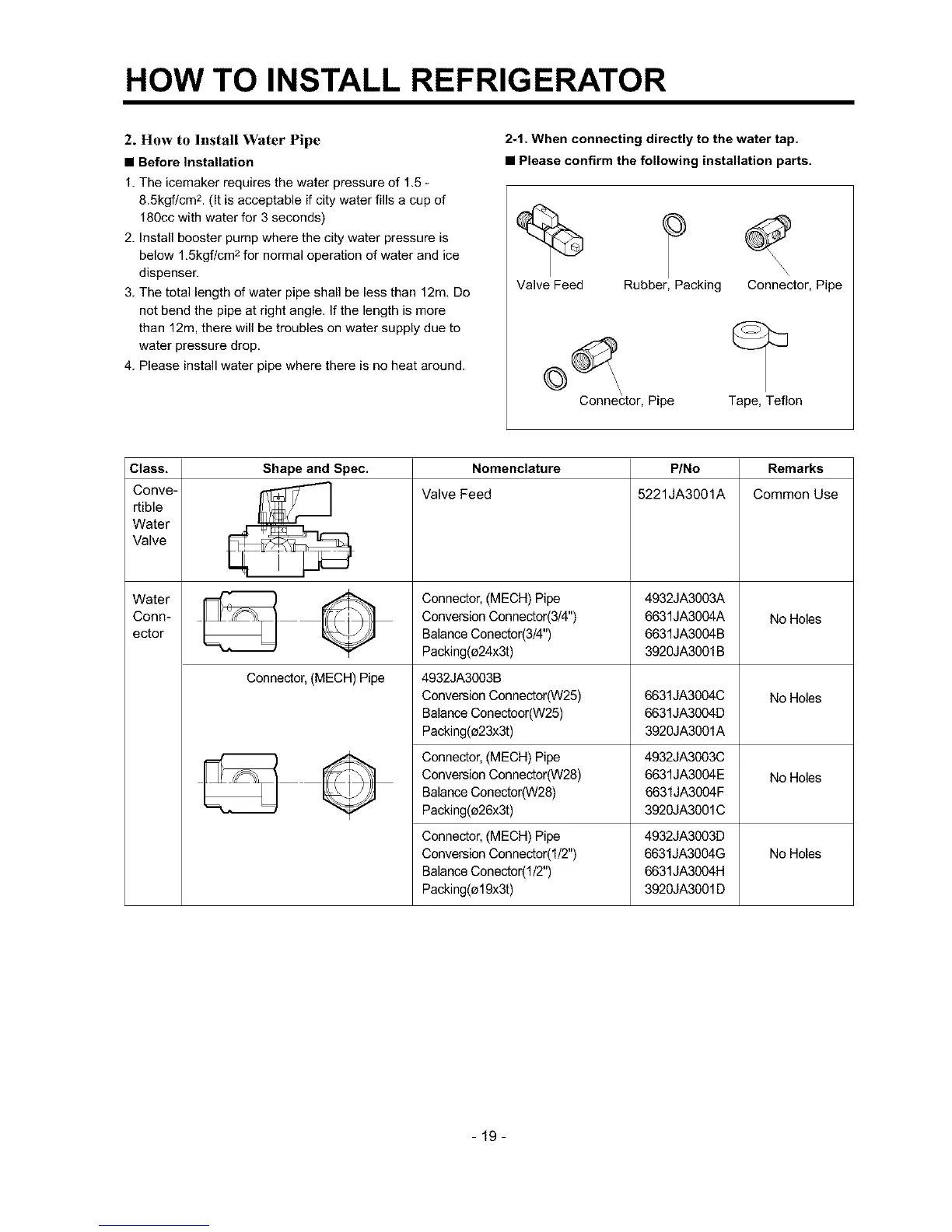

HOW TO INSTALL REFRIGERATOR
2. How to Install Water Pipe
• Before Installation
1. The icemaker requires the water pressure of 1.5
8.5kgf/cm 2. (It is acceptable if city water fills a cup of
180cc with water for 3 seconds)
2. Install booster pump where the city water pressure is
below 1,5kgf/cm 2 for normal operation of water and ice
dispenser.
3. The total length of water pipe shall be less than 12m, Do
not bend the pipe at right angle. If the length is more
than 12m, there will be troubles on water supply due to
water pressure drop.
4. Please install water pipe where there is no heat around.
2-1. When connecting directly to the water tap.
• Please confirm the following installation parts,
Valve Feed Rubber, Packing Connector, Pipe
Connector, Pipe Tape, Teflon
Class,
Conve-
rtible
Water
Valve
Water
Conn-
ector
Shape and Spec.
Connector, (MECH) Pipe
Nomenclature
Valve Feed
Connector,(MECH)Pipe
ConversionConnector(3/4")
BalanceCenector(3/4")
Packing(e24x3t)
4932JA3003B
ConversionConnector(W25)
BalanceConectoor(W25)
Packing(e23x3t)
P/No
5221JA3001A
4932JA3003A
6631JA3004A
6631JA3004B
3920JA3001B
6631JA3004C
6631JA3004D
3920JA3001A
Remarks
Common Use
NoHoles
NoHoles
Connector,(MECH)Pipe 4932JA3003C
ConversionConnector(W28) 6631JA3004E NoHoles
BalanceConector(W28) 6631JA3004F
Packing(e26x3t) 3920JA3001C
NoHoles
Connector,(MECH)Pipe
ConversionConnector(I/2")
BalanceConector(1/2")
Packing(e19x3t)
4932JA3003D
6631JA3004G
6631JA3004H
3920JA3001D
-19-
