Ch5. Removing and replacing a part
■ 1120 Audio Board
Remove the following parts in order before replacing this part
1. Battery Pack(1010) 2. Hard Disk Drive(1020) 3. W/L LAN Card(1030) 4. Keyboard(1040)
5. Retainer(1050) 6. Keyboard plate(1060) 7. Keyboard plate(1070) 8. Hinge Cover(1080)
9. Display Module(1090) 10. Display Module(1100) 11. Optical Disk Drive(1110)

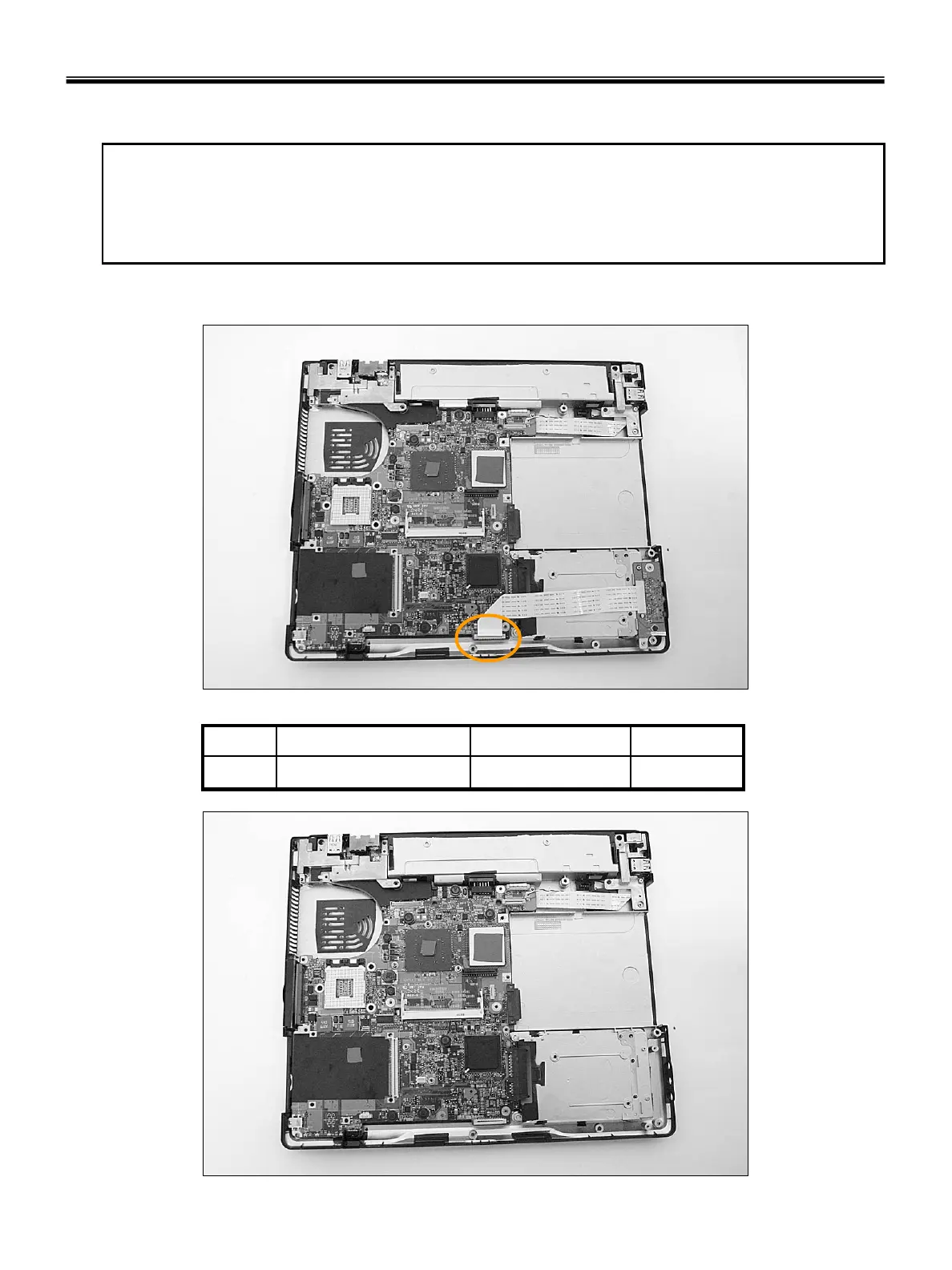

1. Remove 2 screws. Disconnect Audio connector and remove Audio Board.
2M2.0 X L3.51SZZBA4023A1
QtySpecificationFRU No.No.
