Ch5. Removing and replacing a part
■ 1140 Hinge Frame (L)

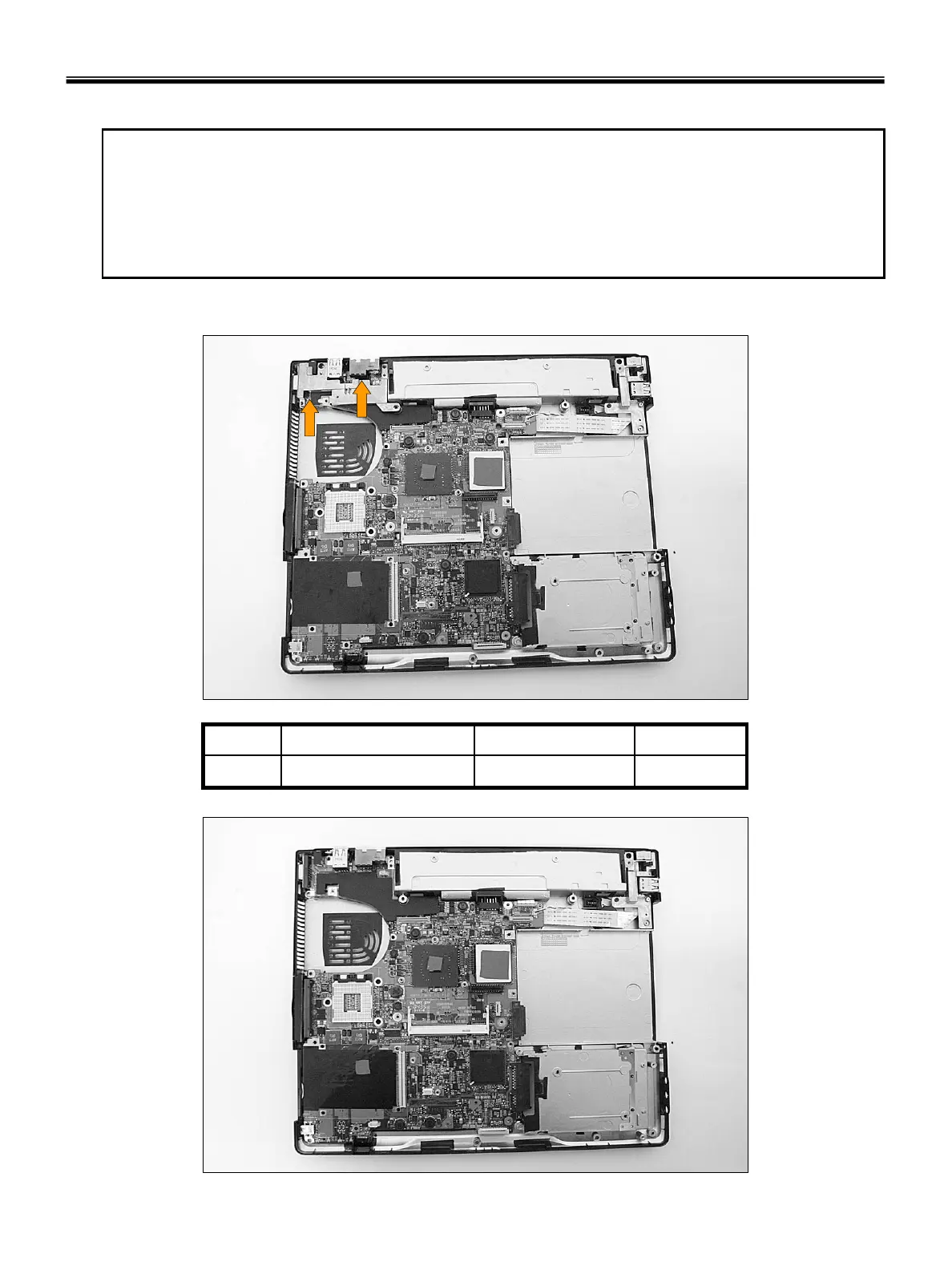

1. Remove 2 screws. Remove Hinge Frame (Left).
2M2.0 X L5.01SZZBZ4014A1
QtySpecificationFRU No.No.
Remove the following parts in order before replacing this part
1. Battery Pack(1010) 2. Hard Disk Drive(1020) 3. W/L LAN Card(1030) 4. Keyboard(1040)
5. Retainer(1050) 6. Keyboard plate(1060) 7. Keyboard plate(1070) 8. Hinge Cover(1080)
9. Display Module(1090) 10. Display Module(1100) 11. Optical Disk Drive(1110)
12. Audio Board(1120) 13. HDD Cover Block(1130)
