Ch5. Removing and replacing a part

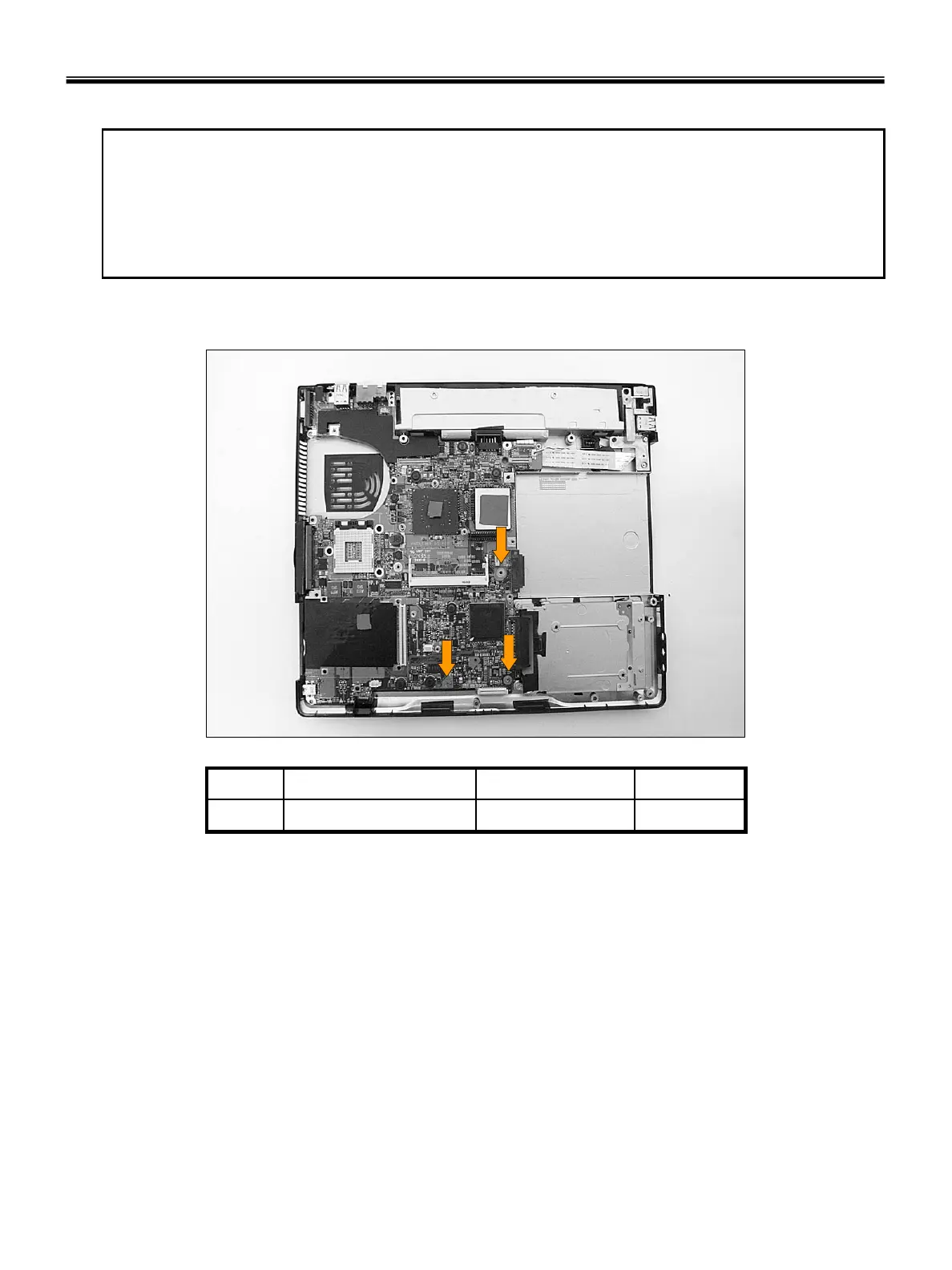

■ 1150 Main Board
1. Remove 3 screws. Disconnect RTC Battery and S-VIDEO connector. Remove Main Board.
Remove the following parts in order before replacing this part
1. Battery Pack(1010) 2. Hard Disk Drive(1020) 3. W/L LAN Card(1030) 4. Keyboard(1040)
5. Retainer(1050) 6. Keyboard plate(1060) 7. Keyboard plate(1070) 8. Hinge Cover(1080)
9. Display Module(1090) 10. Display Module(1100) 11. Optical Disk Drive(1110)
12. Audio Board(1120) 13. HDD Cover Block(1130) 14. Hinge Frame (L)(1140)
3M2.0 X L3.51SZZBA4023A1
QtySpecificationFRU No.No.
