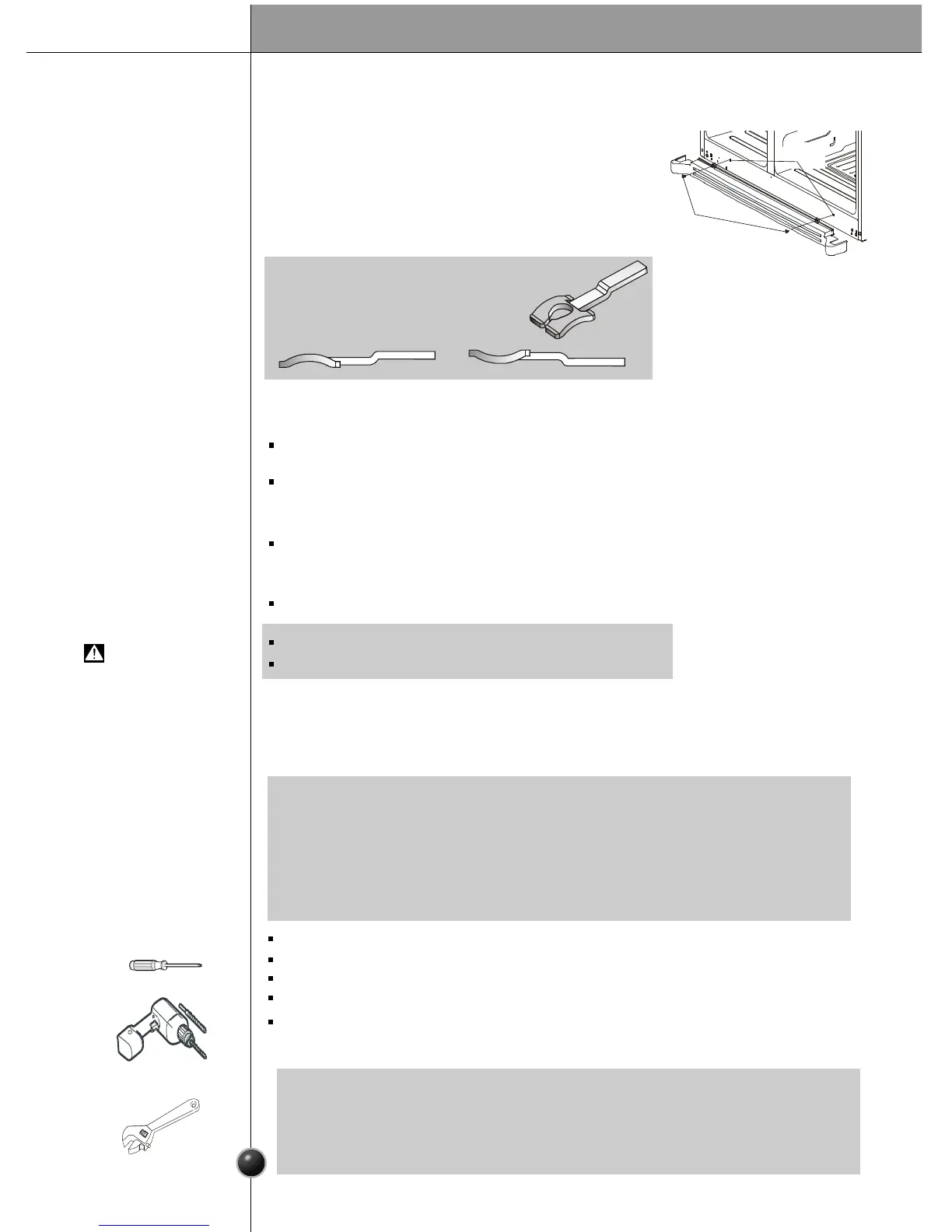

LG LSC27931 Series - Door Replacement; Water Pipe Installation; Water Connection Instruction Guide

Water pipe installation
Automatic icemaker operation needs water pressure of 21.3~121psi (lb/inch
2
) (That
is, a 7oz. paper cup will be lled within 3 sec.).
If water pressure does not reach the rated 21.3psi (lb/inch
2
) or below, it is necessary
to purchase a separate pressure pump for normal automatic icemaking and cool
water feed.
Keep the total length of the water feed tube within 40 feet and be careful not to
bend or kink the tube. If the tube is longer than 40 feet, the icemaker and water
dispenser will not operate properly.
Install the water feed tube at a place free from heat.
Connect to potable water supply only.
Refer to instructions with water lter kit for installation.
Before
Installation
WARNING
Installation
9
Water Connection Instruction Guide
Read all directions carefully before you begin.
Connecting
the Refrigerator
to a Water Source
•
If operating the refrigerator before installing the water connection, turn icemaker
to theOFF position to prevent operation without water.
•
All installations must be in accordance with local plumbing code requirements.
•
Use copper tubing and check for leaks.
•
Install copper tubing only in areas where temperatures will remain above freezing.
•
It may take up to 24 hours for your icemaker to begin producing ice.
IMPORTANT
Standard screwdriver.
7/16-inch and 1/2-inch open-end wrenches or two adjustable wrenches.
1/4-inch nut driver.
1/4-inch drill bit.
Hand drill or electric drill (properly grounded).
Tools Required
•
Your refrigerator dealer has a kit available with a 1/4-inch saddle-type shut-o valve,
a union, and copper tubing. Before purchasing, make sure a saddle-type valve
complies with your local plumbing codes. Do not use a piercing-type or 3/16-inch
saddle valve which reduces water ow and clogs more easily.
NOTE
Screwdriver
Adjustable wrenches
Electric drill
NOTE:
Check the direction of the level hinge.
Correct
Incorrect
Screw
Hole
Door replacement
Mount the doors in the reverse order of removal after the refrigerator is brought to the
installation area.
Install the base grille using a driver screw Phillip’s,
put one screw in each hole of base grille.
Base grille
installation
