16 INSTALLATION
Specified Power Cord Kit Rating
Case 1
Voltage: 120/240 volts (3-wire)
Range rating: 8,750 W - 16,500 W
Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 2
Voltage: 120/240 volts (3-wire)
Range rating: 16,501 W - 22,500 W
Specified rating of power supply-cord kit,
amperes: 50 A
Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
Case 3
Voltage: 120/208 volts (3-wire)
Range rating: 7,801 W- 12,500 W
Specified rating of power supply-cord kit,
amperes: 40 A or 50 A
Diameter (inches) of range connection opening
- Power cord: 1 3/8"
- Conduit: 1 1/8"
Case 4
Voltage: 120/208 volts (3-wire)
Range rating: 12,501 W - 18,500 W
Specified rating of power supply-cord kit,
amperes: 50 A
Diameter (inches) of range connection opening
- Power cord: 1 3/4"
- Conduit: 1 3/8"
3, 4 - Wire Electrical Wall Receptacle

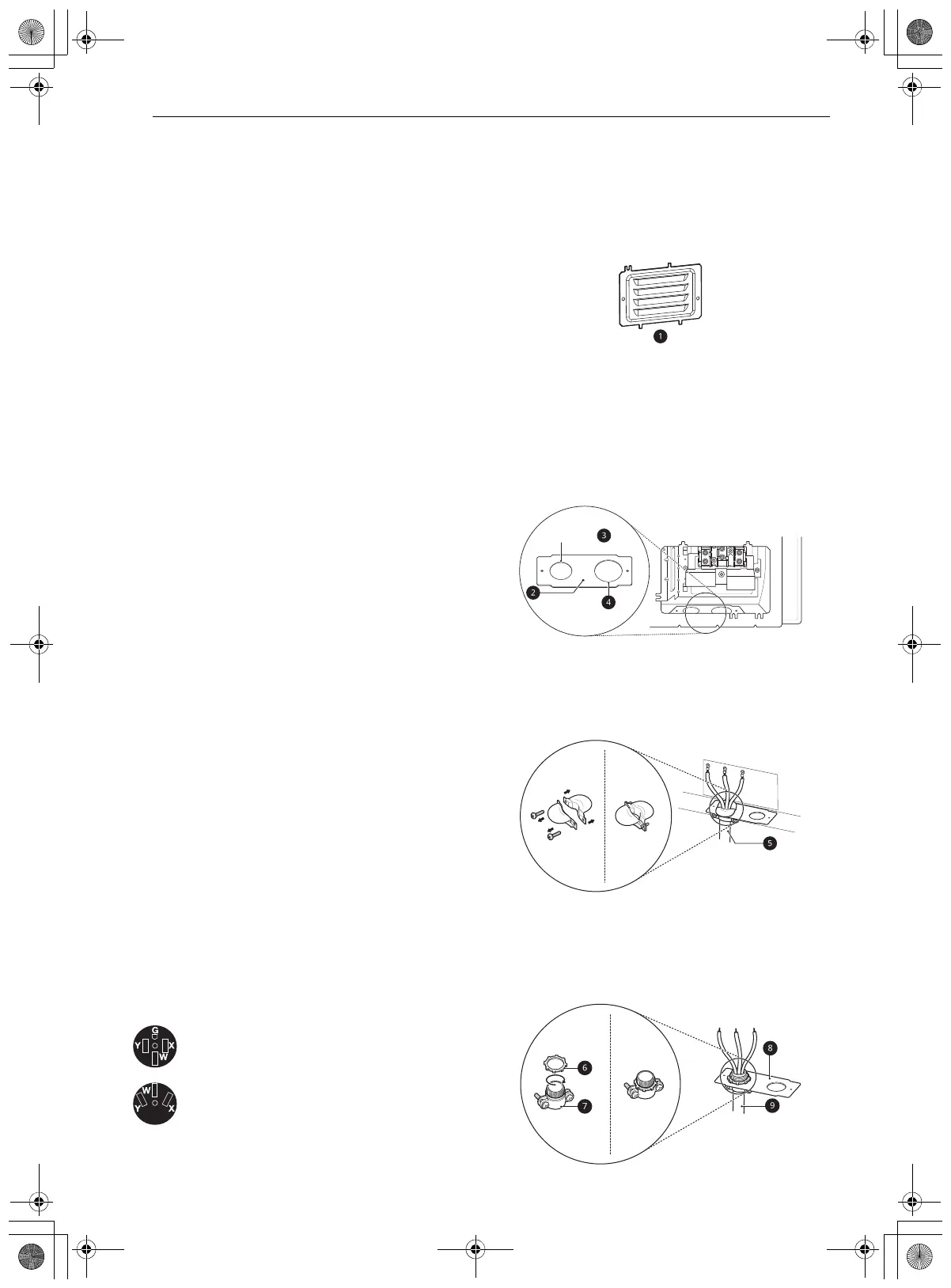

Connecting the Power Cord /
Conduit
The rear access cover a must be removed. Loosen
the two screws with a screwdriver. The terminal
block will then be accessible.
Use the cord/conduit connection plate
b to install
the power cord or conduit. Leave the connection
plate as installed for power cord installations.
Remove the connection plate for conduit
installations and use the smaller 1 1/8 in. (2.8 cm)
conduit hole c instead of the 1 3/8 in. (3.5 cm)
power cord hole
d.
For power cord
e installations, hook the strain
relief over the 1 3/8 in. (3.5 cm) power cord hole
located below the rear of the oven. Insert the
power cord through the strain relief and tighten it.
For conduit installations, insert the conduit strain
relief in the 1 1/8 in. (2.8 cm) conduit hole. Then
install the conduit through the body of the strain
relief and fasten the strain relief with its ring.
4 Wire receptacle (14-50R)
3 Wire receptacle (10-50R)
1
1
/
8
"
(2.8 cm)
1
3
/
8
"
(3.5 cm)
us_main.book.book Page 16 Wednesday, February 3, 2021 9:14 AM
