22
Multi F Standard Wall-Mounted Indoor Unit
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
MAX
MULTI
F
MULTI
F

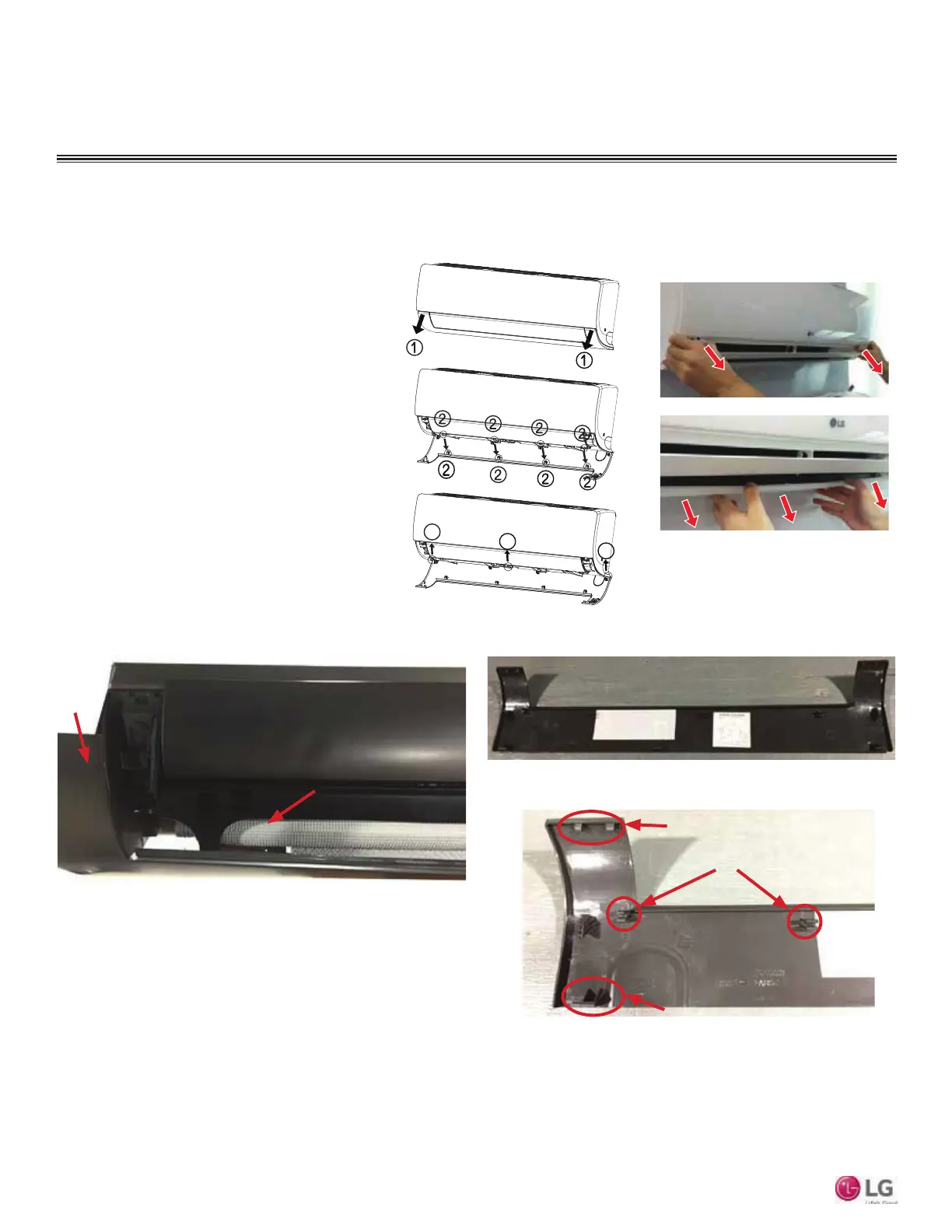

Figure 17: Removing the HSV5 Bottom
Cover.
To access the indoor unit piping port connections,
terminal block, and to make the indoor unit installation
procedure easier, it is recommended that the bottom
cover be removed first.
1. Unsnap the bottom cover at its top left and right
sides (Location 1).
2. Unsnap each of the three (3) or four (4) small
C-hooks located in the middle of the bottom cover
(Location 2). Number of C-hooks present depends
on model of indoor unit.
3. Lift the three (3) to four (4) hinges on the bottom
cover up and out of the channels molded to the
left, right, and middle of the indoor unit (Location
3). Number of hinges present depends on model
of indoor unit.
4. Set aside the bottom cover to re-install after all
procedures are complete.
3
3
3
Removing the Indoor Unit Bottom Cover — HSV5 Wall-Mounted Indoor Units
Figure 18: Removing the HSV5 Bottom
Cover (Appearances Will Vary Depending
on Indoor Unit Model).
Figure 19: Back of Bottom Cover Completely Removed from Indoor Unit
(Appearances Will Vary Depending on Indoor Unit Model).
Figure 20: Bottom Cover with Top and Middle Unsnapped, Front View
(Appearances Will Vary Depending on Indoor Unit Model).
Inside of Indoor Unit
Top Left Side of
Bottom Cover
Figure 21: Close Up of Bottom Cover Connections (Appearances Will
Vary Depending on Indoor Unit Model).
Hinge
Top Snaps
C-Hooks
3UHSDULQJIRU,QVWDOODWLRQ
INSTALLATION
