LG LTNS16121V /00 - Activation Current and LED Blinking 6 Times

Activation current and LED blinking 6 times (Activation Current) .2

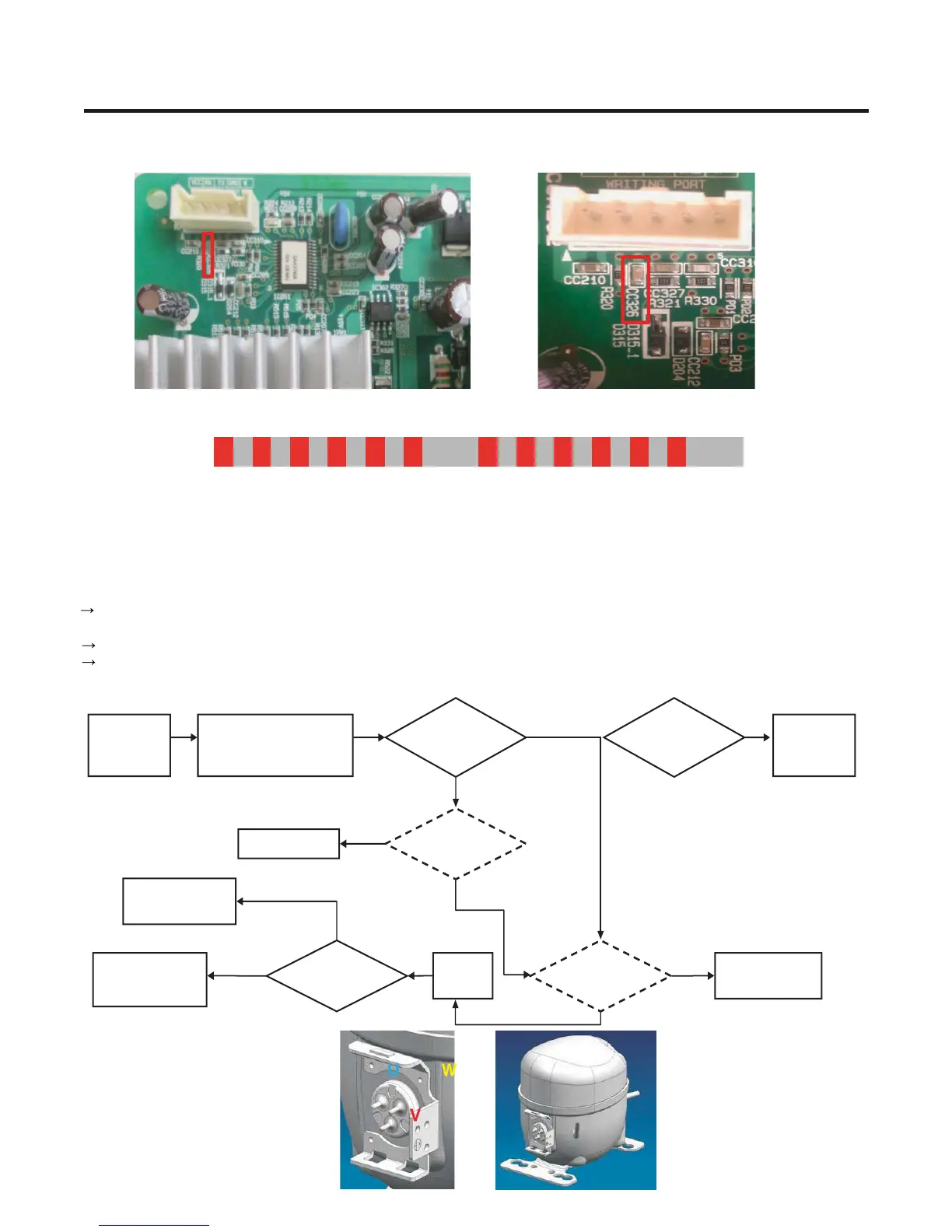

Blink Blink Blink Blink Blink Blink OFF
CC326
18
6 times blinking (activation current) may occur in a temporal disconnection situation like when refrigerator is turn on/off for 3
minutes.
1. If it’s blinking 6 times but there’s no a significant difference between the temperature inside the refrigerator and the set
temperature, there’s no problem in PCB, Compressor or refrigeration cycle
2. If it’s blinking 6 times and problem such as no cooling occurs, it means cycle leakage or cycle clogged (moisture, trash).
Cause: Cycle leakage or clogging, excessive increase in compressor temperature, compressor piston is locked, PCB IPM,
device is burned due to condenser fan defect.
Cause: Over-current protection.
Action: Check PCB output, verify compressor operation, leakage inspection and check cycle clogging (for re-vaccum, 30
minutes in additional vaccum).
Check
protection
logic.
Check current or LED that is
blinking 6 times (current trip)
Intermittent
operation of
compressor
Check PCB
output
Check
compressor
defect
Replace
compressor
Check inspection
procedure again
Did current
trip occur?
Power
Reset
Replace PCB
Check harness P
U.V.W.
Modify harness
P
Yes
Yes
Yes
Yes
No
No
No
No
Check PCB
output
