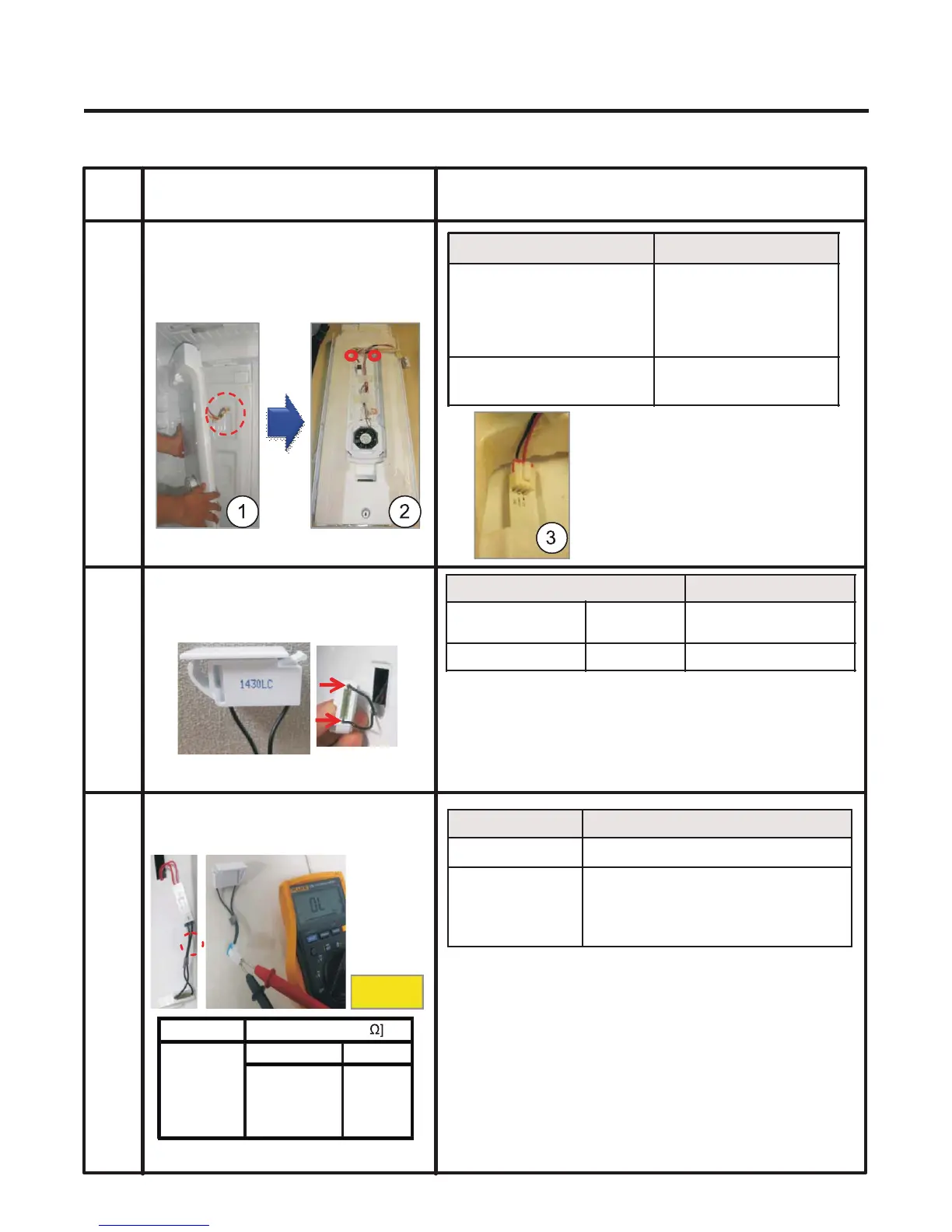

- LED is not working (Multiduct)
1
2
3
Damaged wires, dust,
dirt, lack of T.P.A.
Normal appearance and
correct connection
Go to step 2
Forced movement Normal
Change door switch
Free movement No normal Go to step 3
Result SVC Support
Firmly connected Go to step 4
Loose
49
* Yes: Replace the door magnetic switch.
Disassembly multi duct and check that all
the wires are firmly connected to LED, the
terminals must be secured with a T.P.A. and
the LED wire must be free of any damage.
Open the refrigerator door. Check visually
the door magnetic switch. Are the magnetic
switch wires loose?
Disconnect the magnetic switch and confirm
whether there is continuity between the
terminals. Is there continuity?
Door
Switch
Resistance [
Door
magnetic
switch
Normal
0
Infinite
Place the
magnet close
to magnetic
switch
* Yes: Replace the door magnetic switch.
Replace LED lamp. Is there
a problem?
Yes: Go to step 2.
No: Explain to customer.
Connect firmly, then check again (connect
and disconnect. Is there a problem?
Yes: Go to step 4.
No: Explain to customer.
Result SVC Support
No Checking Result and SVC countermeasure
Result SVC Support
To Next Page
