LG LTNS16121V /00 - Page 9

P/No & MFG

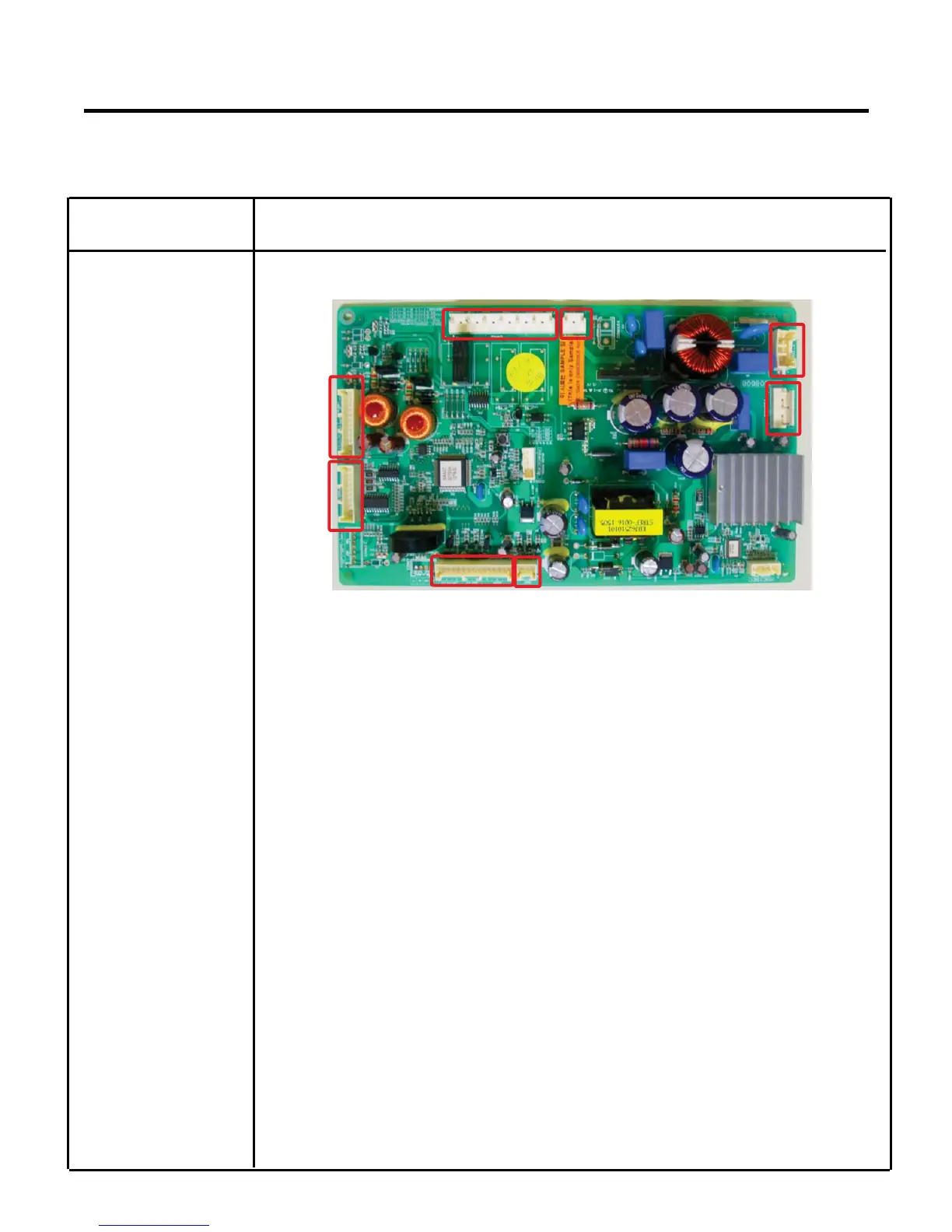

3.8 COMPONENTS: MAIN PCB
EBR808608**
9
CON1: Power Source
CON2: AC load
CON5: F-Fan Motor DC
CON6: Display
CON8: Sensor, R-Door Switch, R-LED Lamp
CON9: PCB Assembly Smart Buzzer (SDS)
CON102: OLP Inverter
CON201: Compressor Terminals
CON1
CON201
CON8
CON9
CON5
CON6
CON2
CON102
