2-19 2-20

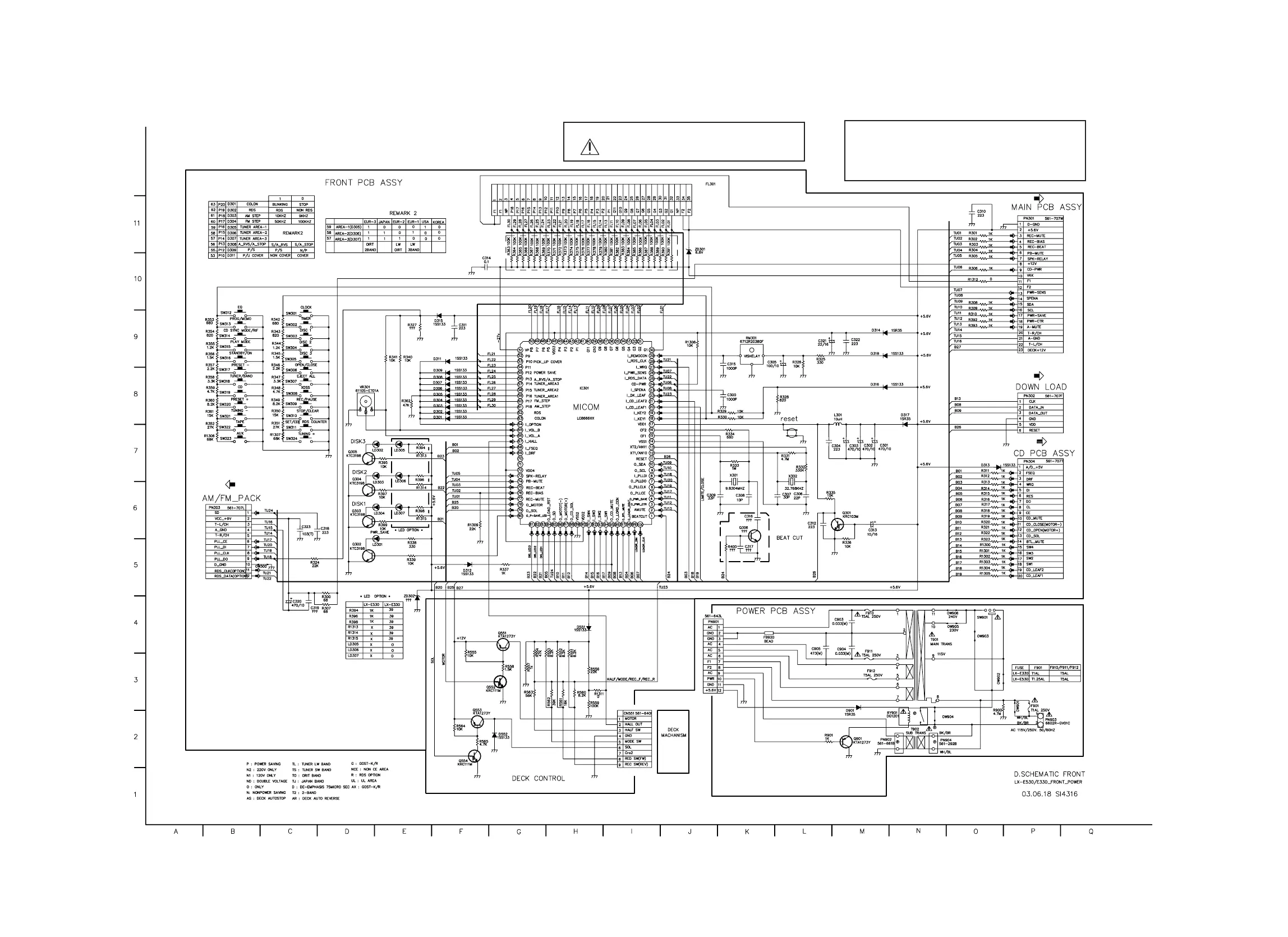

FRONT/POWER SCHEMATIC DIAGRAM
NOTE:
1. Shaded(
■) parts are critical for safety.Replace only
with specified part number.
2. Voltages are DC-measured with a digital voltmefer
during Play mode.
NOTE: Warning
Parts that are shaded are critical With respect
to risk of fire or electrical shock.
To Next Page
