PREPARATION

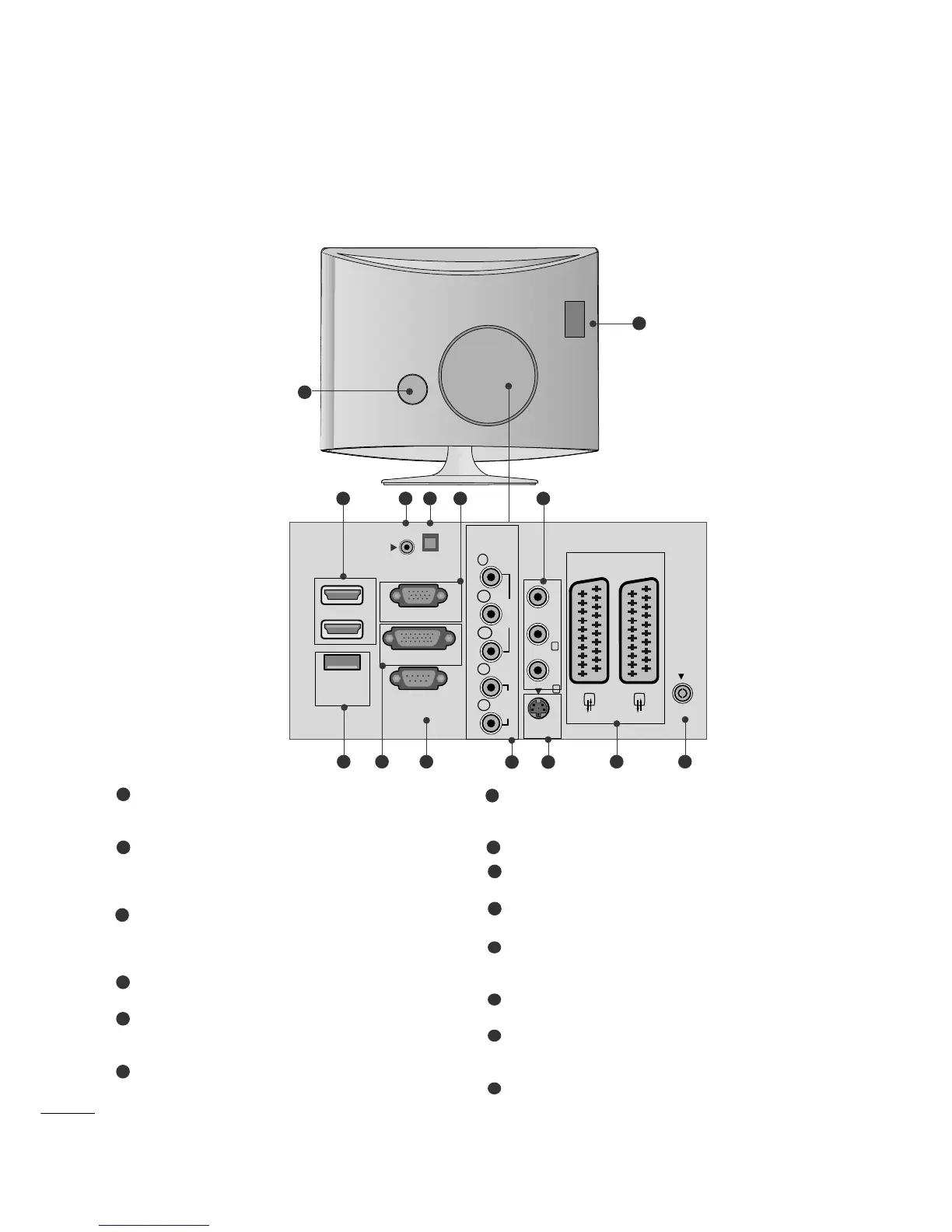

BACK PANEL INFORMATION
PCMCIA (Personal Computer Memory Card
International Association) Card Slot
(This feature is not available in all countries.)
Power Cord Socket
This set operates on AC power. The voltage is indicat-
ed on the Specifications page. Never attempt to
operate the set on DC power.
HDMI Input
Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI
cable.
RGB/DVI Audio Input
Connect the audio from a PC.
Optical Digital Audio Out
Connect digital audio from various types of eguip-
ment
RGB INPUT (PC)
Connect the output from a PC.
Audio/Video Input
Connect audio/video output from an external device
to these jacks.
SERVICE ONLY PORT
DVI-D Input
Connect the output from a PC.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
Component Input
Connect a component video/audio device to these
jacks.
S-Video Input
Connect S-Video out from an S-VIDEO device.
Euro Scart Socket (AV1/AV2)
Connect scart socket input or output from an exter-
nal device to these jacks.
Antenna Input
Connect over-the-air signals to this jack.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
■
This is a simplified representation of the back panel. The image shown may be somewhat different from your
set.
