10. HDMI1,2
10.1 Input ( DTV: For Video, PC is not Supported)
No. Resolution H-freq(kHz) V-freq(Hz) Pixel clock(MHz) Remark
1 720* 480 31.469 / 31.5 59.94 / 60 23.00/ 23.03 SDTV 480P
2 720* 576 31.25 50 54 SDTV 576P
3 1280* 720 37.500 50 74.25 HDTV 720P
4 1280* 720 44.96 / 45 59.94 / 60 74.17/ 74.25 HDTV 720P
5 1920* 1080 33.72 / 33.75 59.94 / 60 74.17/ 74.25 HDTV 1080I
6 1920* 1080 28.125 50.00 74.25 HDTV 1080I
7 1920* 1080 26.97 / 23 23.97 / 24 74.17/ 74.25 HDTV 1080P
8 1920* 1080 33.716 / 33.75 29.976 / 30.00 74.25 HDTV 1080P
9 1920* 1080 56.250 50 148.5 HDTV 1080P
10 1920* 1080 67.43 / 67.5 59.94 / 60 148.35/ 148.50 HDTV 1080P
10.2 EDID Data

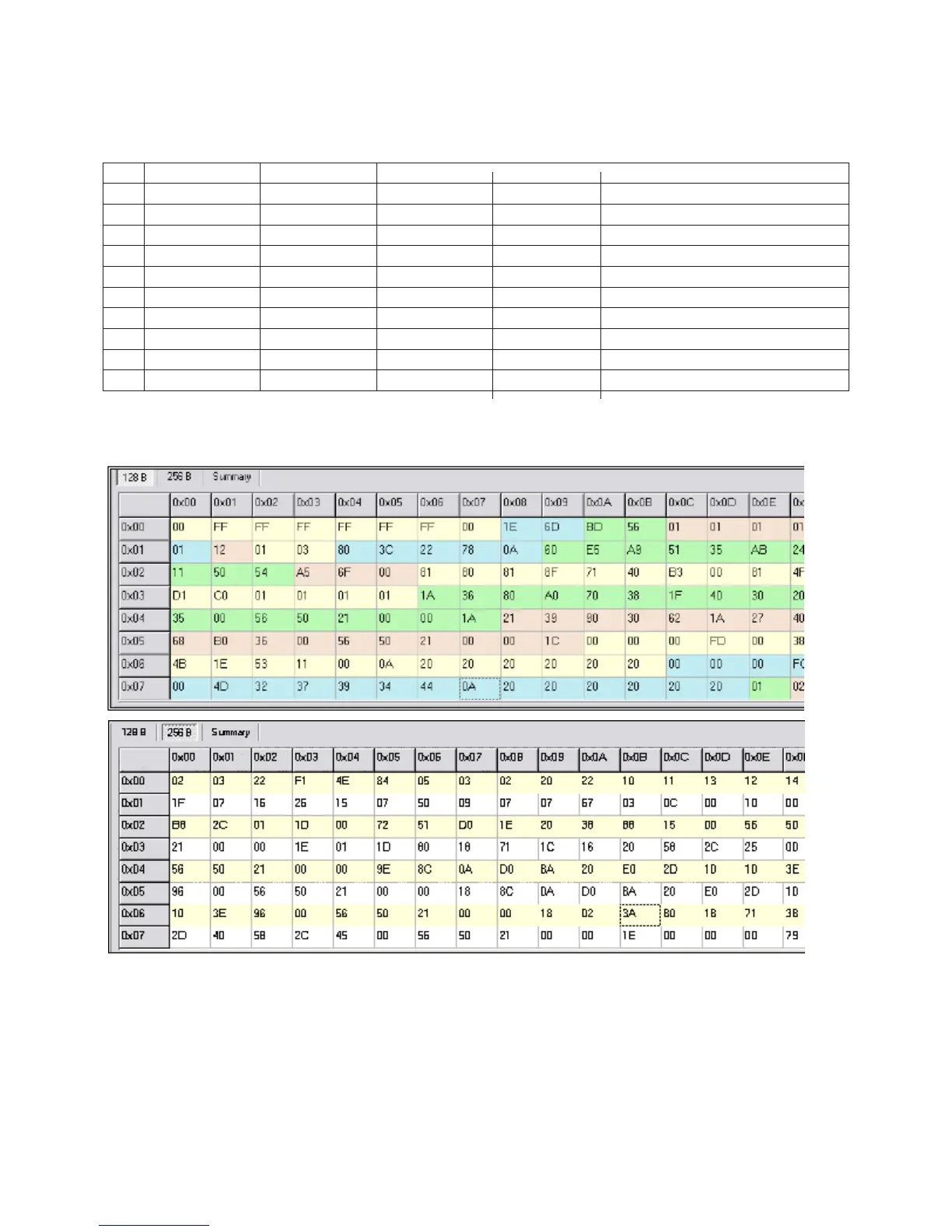

HDMI EDID - Product ID : 22205( HDMI1 and HDMI2 have the Same EDID)
1) HDMI 1
