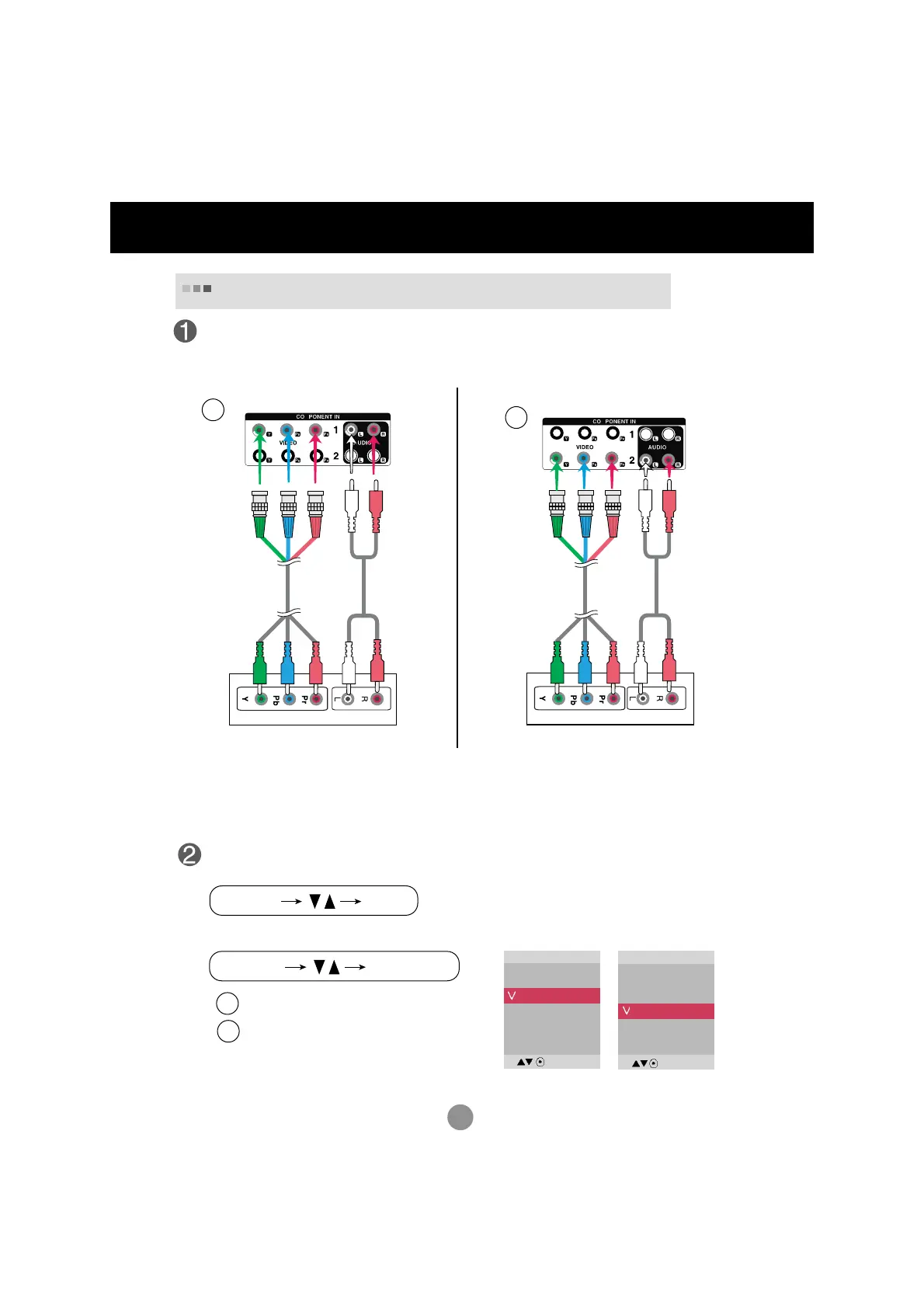

Connect the video/audio cable as shown in the below figure and then, connect the
power cord (See page 6).
•
Connect the input terminal with a proper color match.
BNC Cable
(not included)
Product
HDTV Receiver
Component Input (480i/480p/576i/576p/720p/1080i)
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE botton on the bottom of the product.
Audio Cable
(not included)
M
Product
HDTV Receiver
B
A
BNC Cable
(not included)
Audio Cable
(not included)
Connecting to External Devices
Note
- Some devices may require HDCP in order to display HD signals.
- Component doesn't support HDCP.
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
To Next Page
