Connecting to External Devices
When connecting with an BNC cable.
•
Select AV.
When connecting with an S-Video cable.
•
Select AV.
B
A
IN
OUT
When connecting with a S-Video cable.
•
Connect to the S-Video input terminal to
watch high image quality movies.

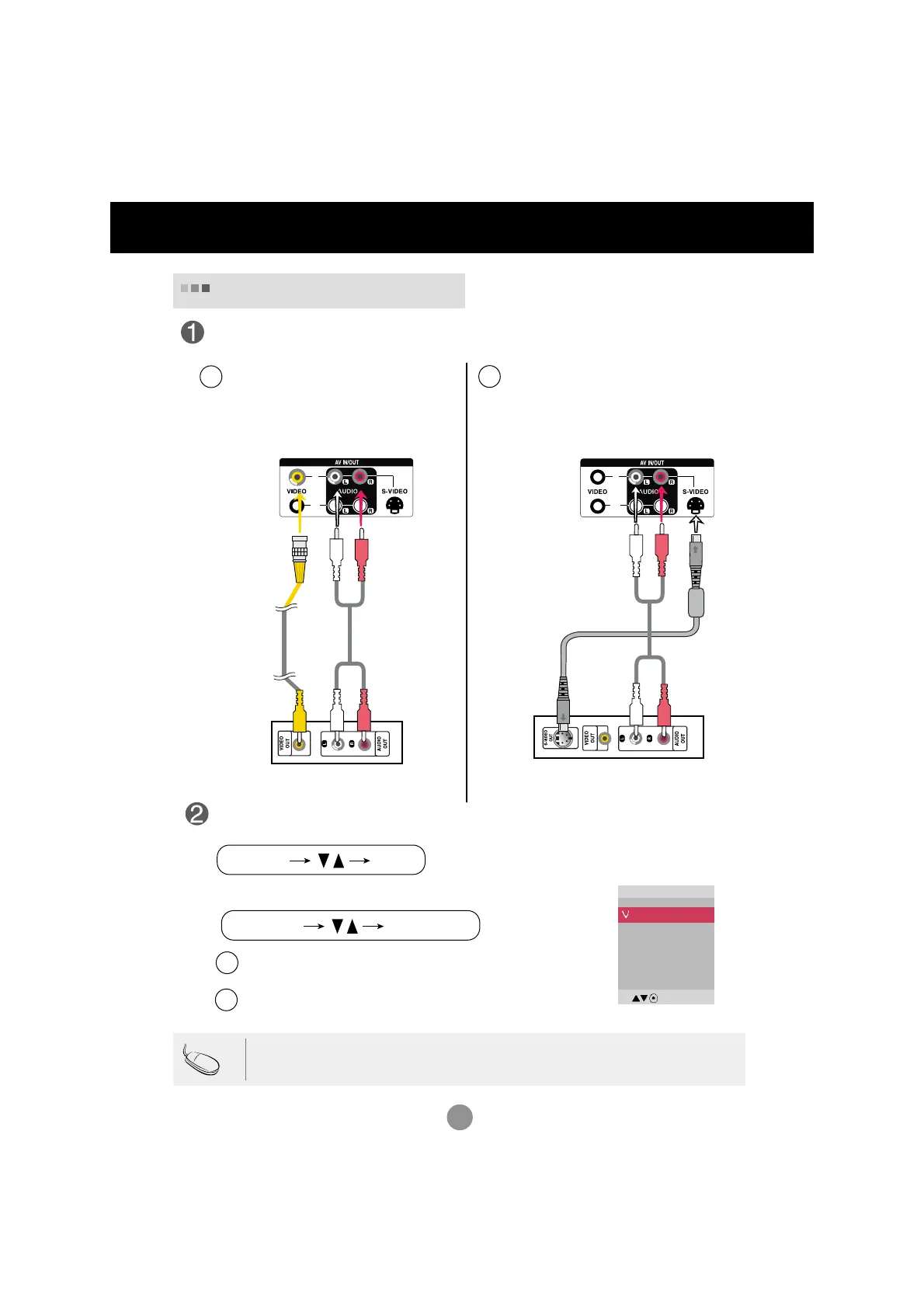

Connect the video cable as shown in the below figure and then connect the power
cord (See page 6).
B
When connecting with a BNC cable.
•
Connect the input terminal with a
proper color match.
A
BNC Cable
(not included)
Product
VCR/DVD Receiver
Video Input
Select an input signal.
Press the INPUT button on the remote control to select the input signal.
Or, press the SOURCE botton on the bottom of the product.
• When the BNC cable is connected simultaneously with S-Video cable, S-Video input has a priority.
Note
Audio Cable
(not included)
IN
OUT
S-Video Cable
(not included)
Audio Cable
(not included)
Product
VCR/DVD Receiver
Input
AV
Component1
Component2
RGB PC
HDMI/DVI
