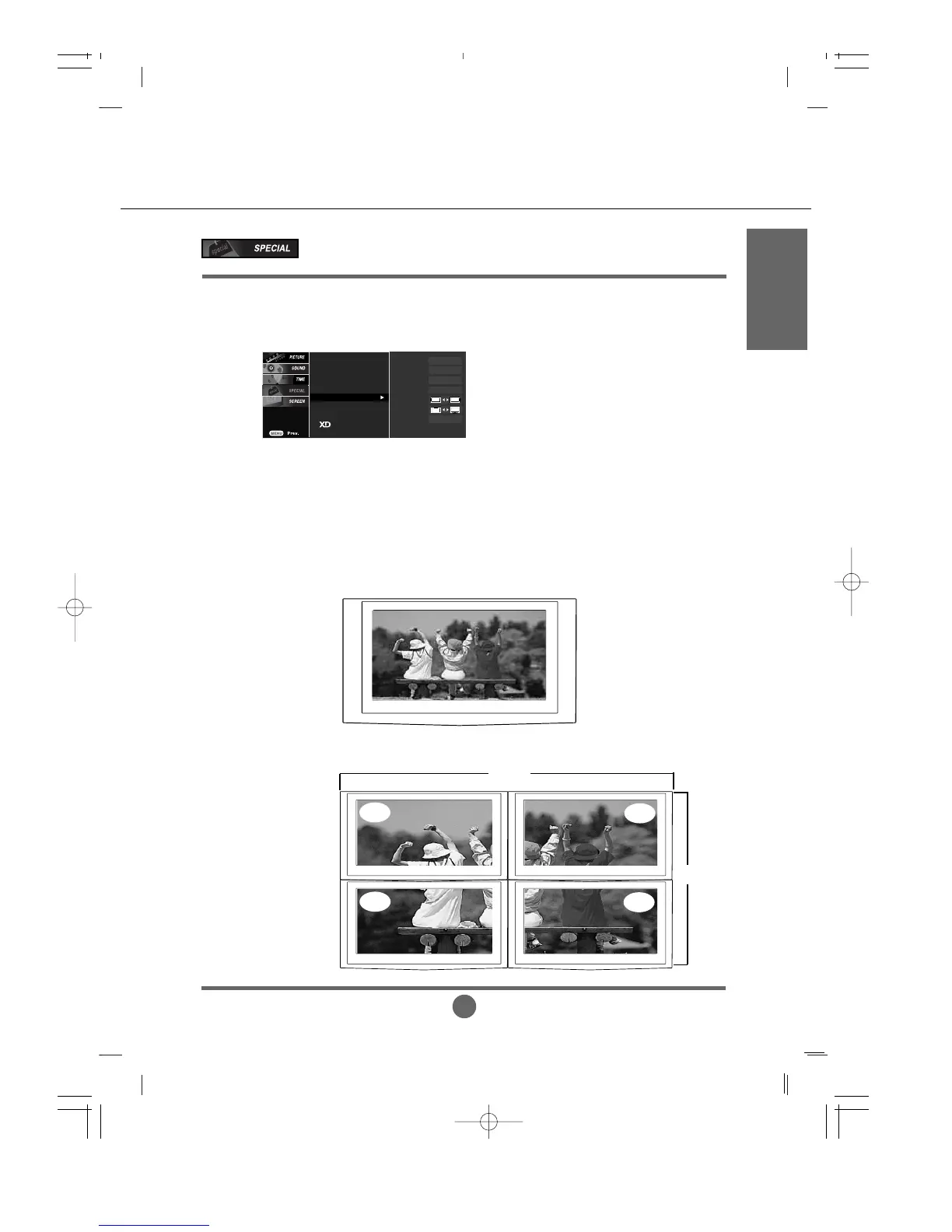

Selecting the options
Tile mode
Tile mode and choose Tile alignment and set the ID of the current product to set
location.
* Only after pressing the SET button the
adjustments made to the settings will be saved.
Language
Child lock
ISM Method
Set ID
Tile Mode
Power Indicator
Logo Light
Tile Mode
Tile ID
H-Size
V-Size
H-Position
V-Position
Reset
Demo
Off
0
0
0
To set
It is used to enlarge the screen and also used with
several products to view screen.
• To use this function
- Must be displayed with various other products.
- Must be in a function that can be connected to RS-232C or RGB Out
• Tile Mode
- Tile mode : row x column ( r = 1, 2, 3, 4 c = 1, 2, 3, 4)
- 4 x 4 available.
- Configuration of an integration screen is also available as well as
configuration of One by one Display.
ID 1
ID 2
ID 3
ID 4
- Tile mode (product 1 ~ 4) : r(2) x c(2)
row
column
