2-6

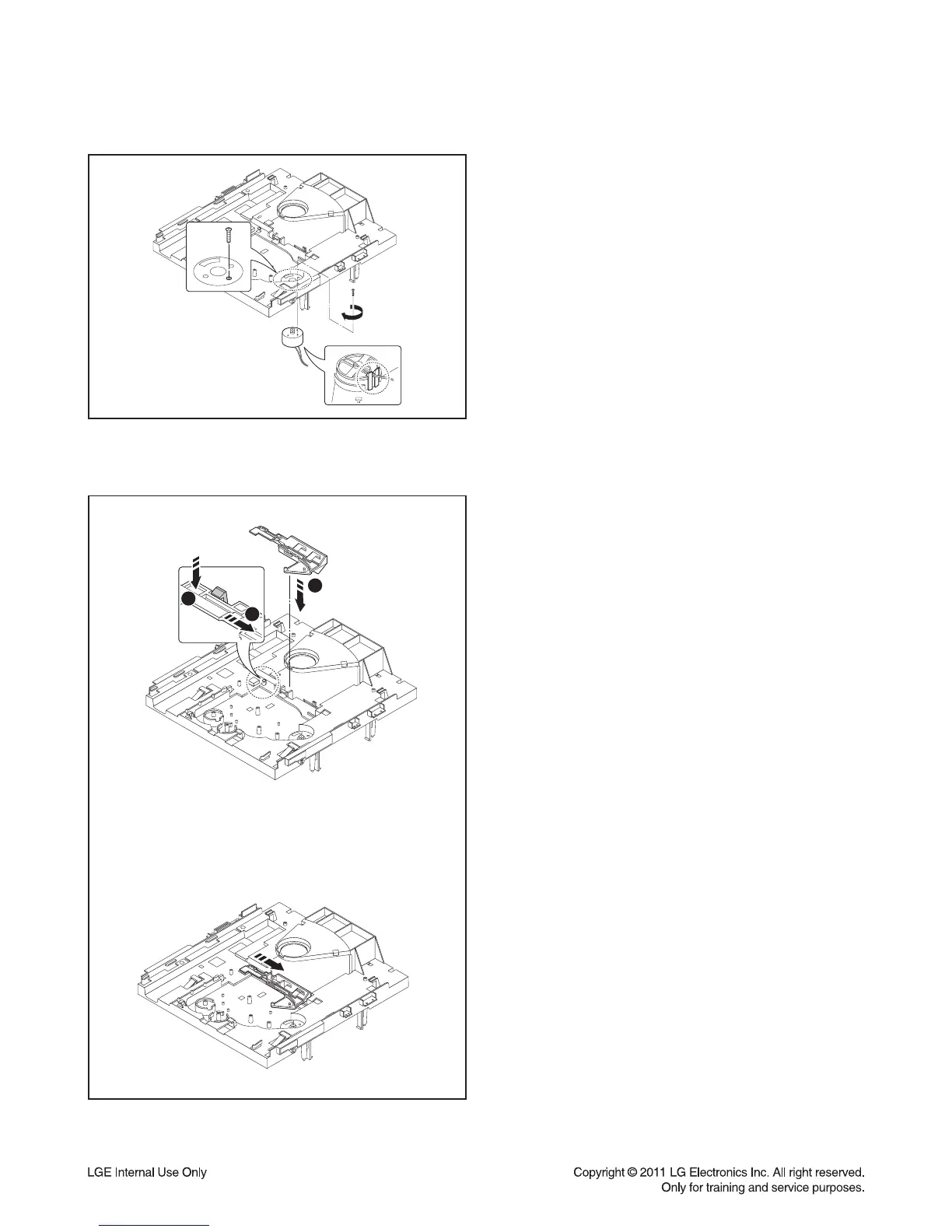

2. ORDER OF ASSEMBLY FOR MECHANISM DECK
1) Assemble the Loading Motor Assy to the Base Main.
(When assembling the Motor Assy, use the hook on
the surface of the Base Main to preassemble, and then
tighten the screws.)
Figure 1
Figure 2
1
2
3
2) Set the Guide UD on the Base Main.
After setting the part, push it in direction 3.
