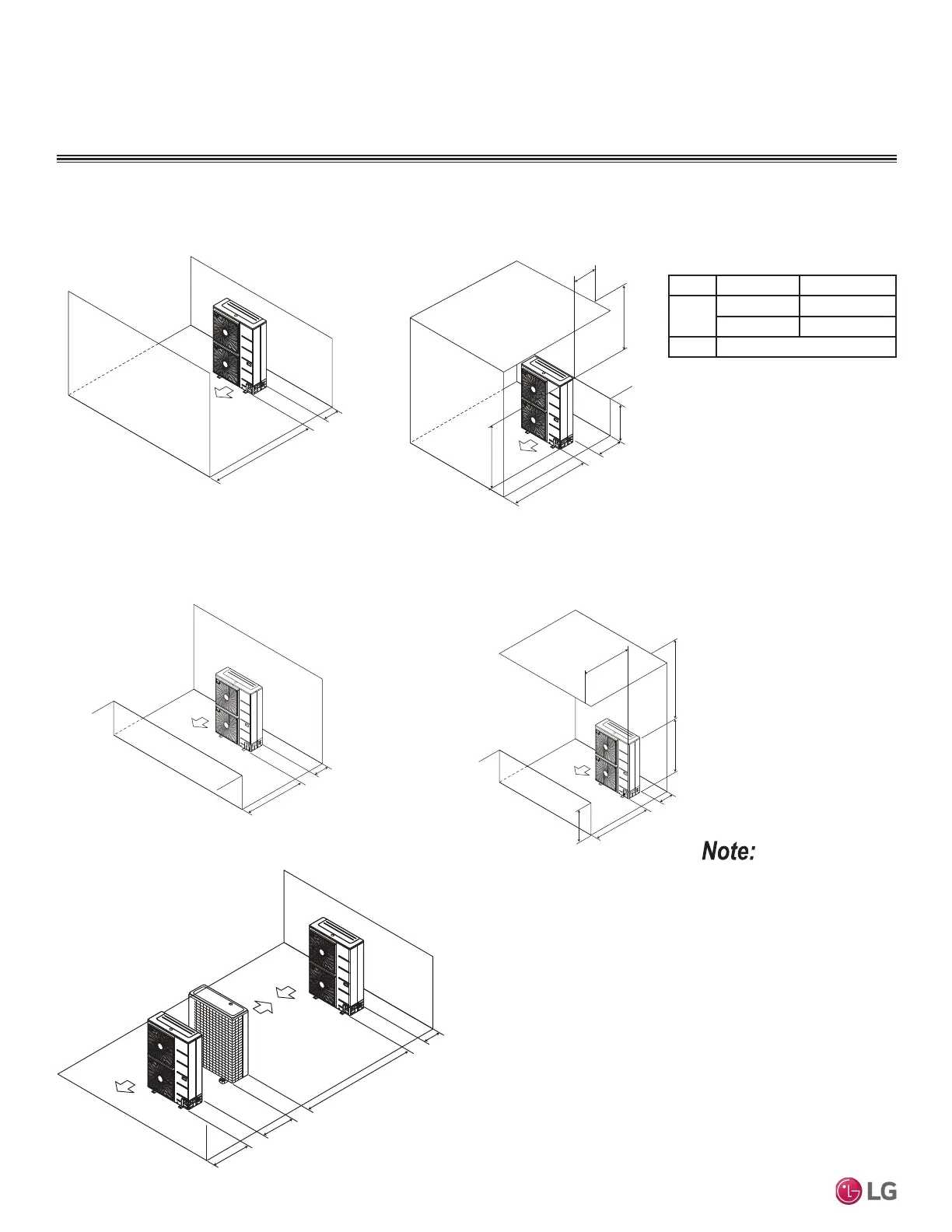

PLACEMENT CONSIDERATIONS
6HOHFWLQJWKH%HVW/RFDWLRQIRUWKH2XWGRRU8QLW
L
Minimum 40"
Minimum 40"
Maximum 20"
Minimum 12"
Where there are obstacles on both suction
and discharge sides (discharge side obstacle
is lower than the outdoor unit).
Where there are obstacles above, and on both
suction and discharge sides (discharge side obstacle
is lower than the outdoor unit).
Minimum 20"
Minimum 12"
H
Minimum 12"
Minimum 79"
Minimum 24"
Minimum 40"
Series installation
³/´PXVWEHORZHUWKDQ³+´,ID
stand is necessary, it must be
contained (not open frame) to
prevent the discharge air from
short cycling.
Where there are obstacles on both suction
and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Minimum 20"
Minimum 12"
Table 8: Ratio among H, A, and L.
If a stand is necessary, it must be contained (not
open frame) to prevent the discharge air from
short cycling.
LA
L
 H
/+ 30 inches
1/2 H < L 40 inches
H < L 6HW6WDQGDV/+
Where there are obstacles above, and on both
suction and discharge sides (discharge side obstacle
is higher than the outdoor unit).
Maximum 20"
Minimum 12"
Minimum 40"
L
H
A
