9
Multi V 5 Cooling Only
Installation of Outdoor Units
6. Refrigerant piping Installation
6.1 Precautions on Pipe connection / Valve operation
WARNING
• Always careful not to leak the refrigerant during welding.
• The refrigerant generates poisonous gas harmful to human body if combusted.
• Do not perform welding in a closed space.
• Be sure to close the cap of the service port to prevent gas leakage after the work.
CAUTION
Please block the pipe knock outs of the front and side panels after installing the pipes.
(Animals or foreign objects may be brought in to damage the cables.)
Pipe connection is done by connecting from the end of the pipe
to the branching pipes, and the refrigerant pipe coming out of
the outdoor unit is divided at the end to connect to each indoor
unit. Flare connection for the indoor unit, and welding
connection for the outdoor pipe and the branching parts.

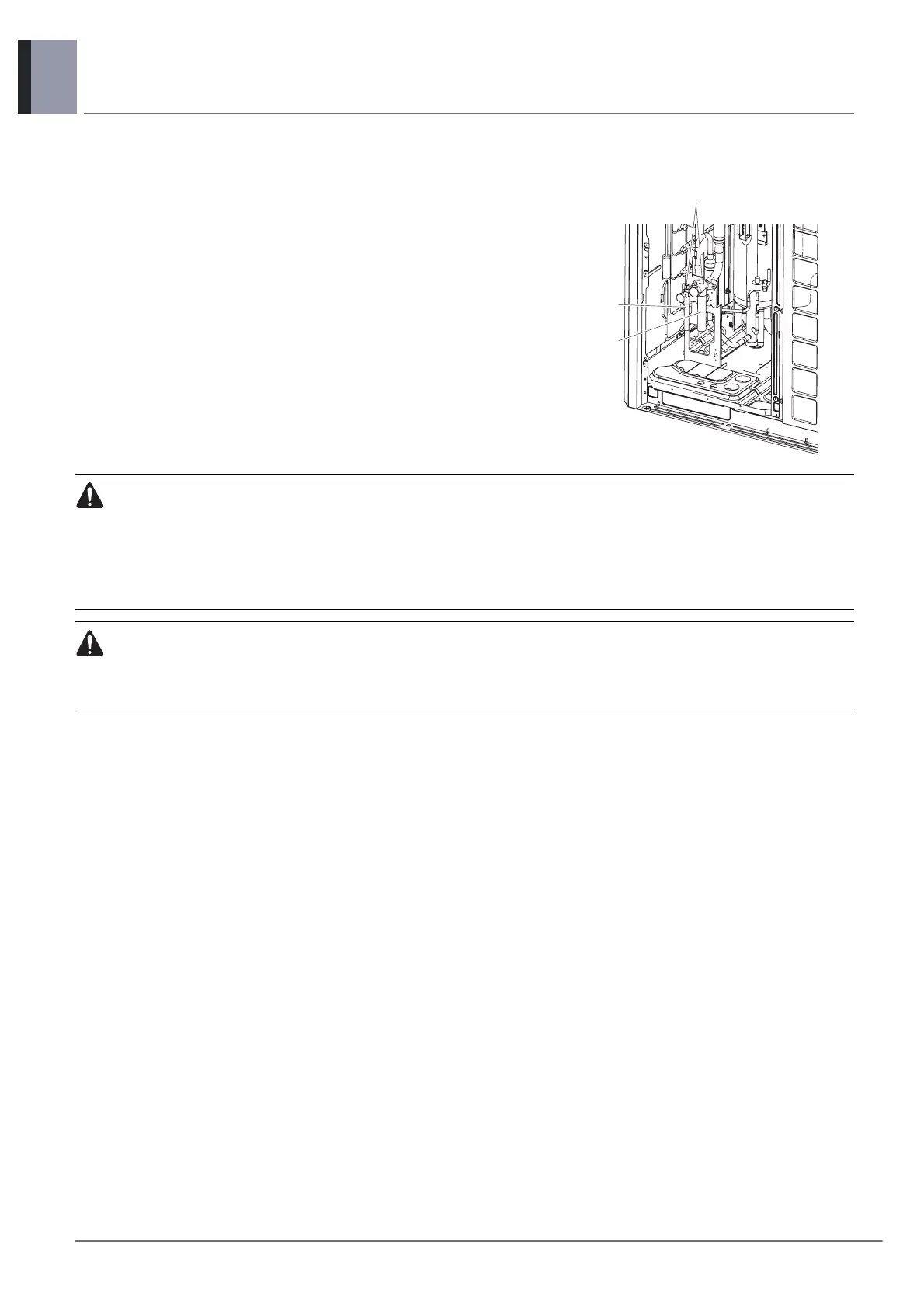

• Use hexagonal wrench to open/close the valve.
Service Port
Liquid pipe
Gas pipe
