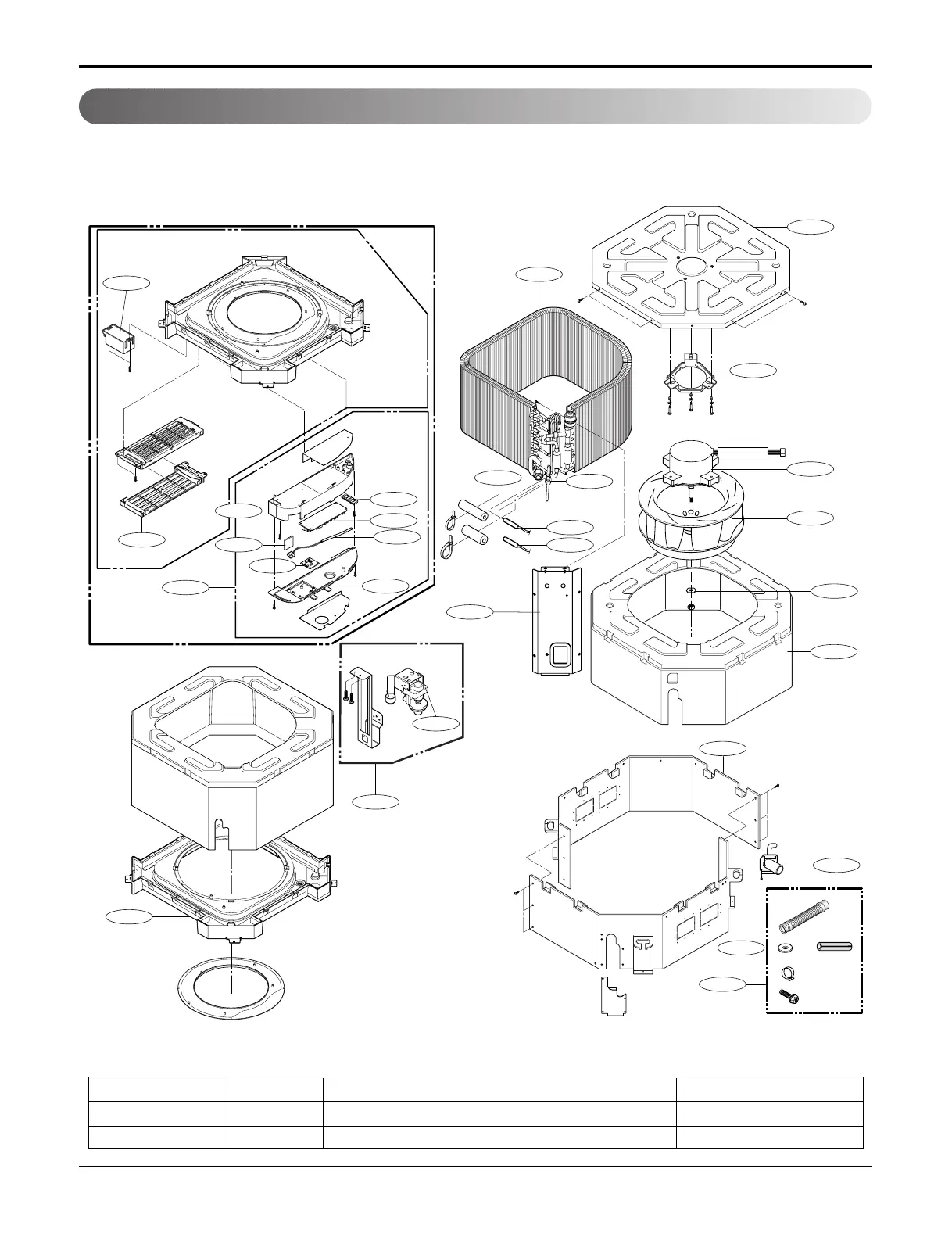

5. Exploded View TE(Plasma model)
W50011
130911C
130911B
352150
352118
352115
330870
268711C
W6640
268711D
249951
135511
263230A
263230B
263230C
158580
158591
354211
266090
159830
130412
140570
130911A
359012
349600
346810
W49810
THERMISTOR 1
THERMISTOR 2
THERMISTOR 3
268711E
130400
Thermistor 1 263230A Air Housing color : yellow
Thermistor 2 263230B Eva. in Housing color : white
Thermistor 3 263230C Eva. out Housing color : red
