- 17 -
Wiring Diagrams

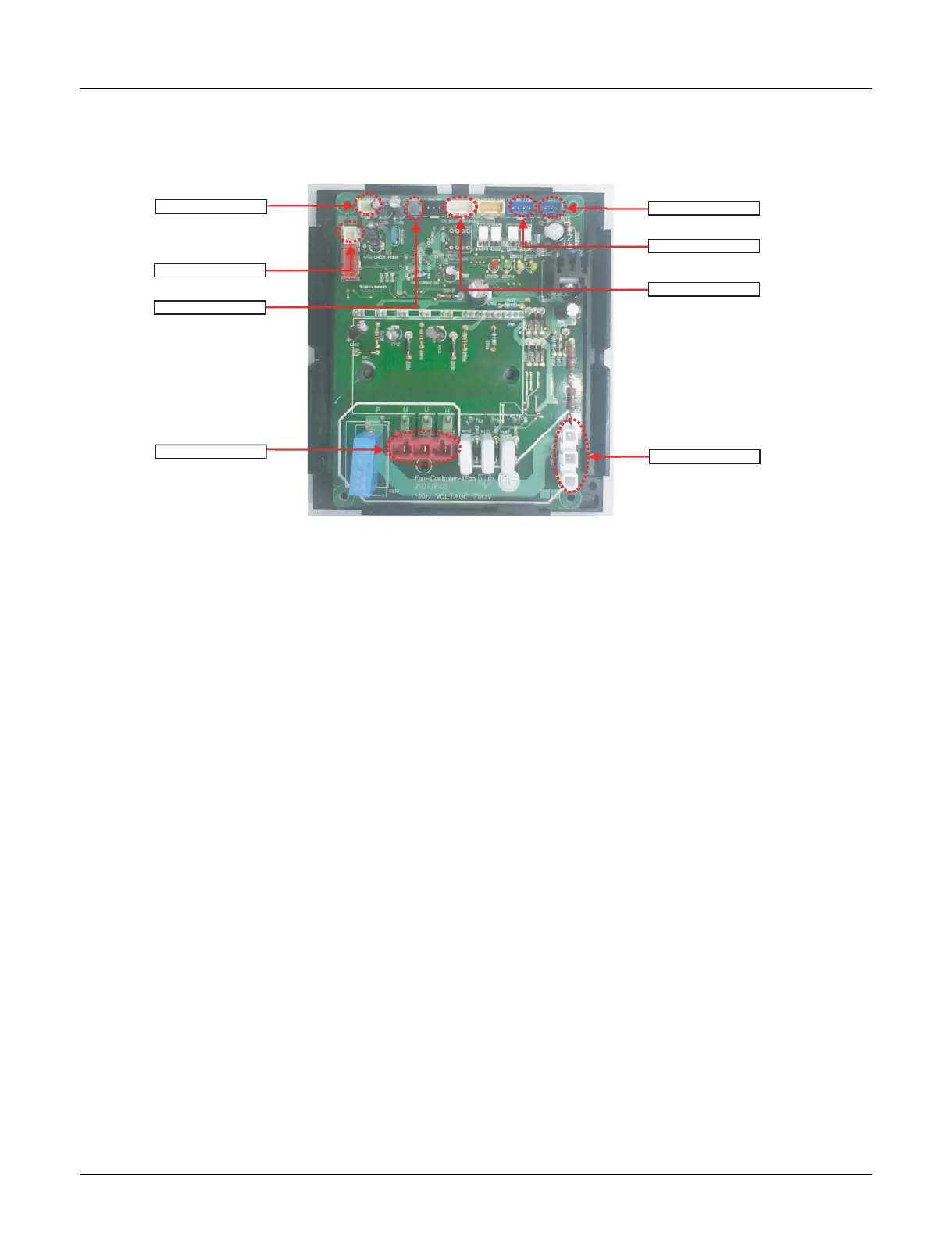

n FAN PCB
CN FLASH WRITER
(Onboading Short Terminal)
CN HEAT SINK
(Onboading Short Terminal)
SW01B
(Reset button)
CN FAN
(Fan Motor Power Terminal)
(Communication Terminal to INV PCB)
CN INV_COM
(DC15V Power Input Terminal)
CN 15V
CN_MICOM WRITING
(INV Onboarding Terminal)
CN DC LINK
(700V DC LINK)
