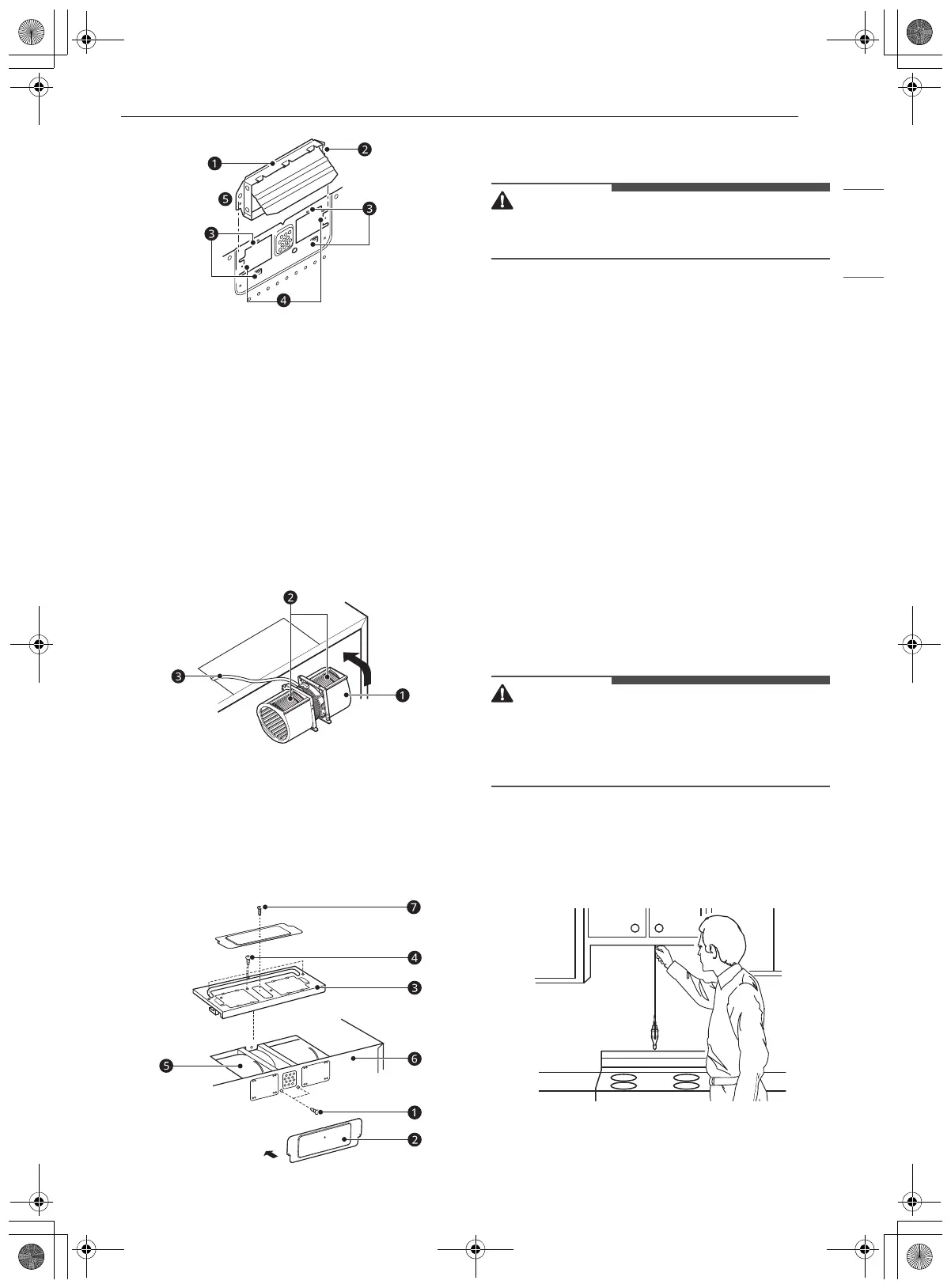

11INSTALLATION
ENGLISH
b Damper (hinge side up)
c Guides
e Slide exhaust adapter into guides on rear
panel.
Room-Venting Installation
1 Follow steps 1 and 2 under Wall-Venting
Installation.
2 Rotate and reinstall the blower unit a so that
the exhaust ports
b face the front of the
cabinet. When you insert the blower unit, the
blower wire c must be routed as shown.
3 Attach one or two blower unit mounting
screw(s)
a. Attach the cover plate b on the
back. Attach the blower plate
c to the
microwave oven. Attach one or several blower
plate mounting screw(s) d. Attach the cover
plate
b on the blower plate and attach the
screw g
e
Blower unit
f Back plate
• Fire hazard! Correctly install the vent fan before
use.
When changing the vent fan position for wall
venting or room venting:
• Properly align the ventilation fan openings and
blower plate knockouts.
• Ventilation fan openings should be completely
exposed to the outside.
• After installation, check the air ventilation path.
Refer to step 2 for proper vent selection.
Improper installation can cause problems such as:
• Inability to assemble the blower plate or
ventilation motor correctly
• Abnormal noise during product operation
• Weak ventilation
• Product overheating and the possibility of
product breakdown or fire
Step 4: Prepare the Wall and Upper
Cabinet
• To avoid personal injury or property damage, do
not attempt to install this microwave oven if you
cannot find a wall stud. Consult a carpenter or
contractor.
Measure and Attach Templates
1 Using a plumb line and (metal) measuring
tape, find and mark the vertical center line on
the back wall of the opening.
2 Find and mark one or two points where the
studs are on the wall. (Studs are normally 16
us_main.book.book Page 11 Friday, February 11, 2022 8:16 AM
