7INSTALLATION
ENGLISH
• If you have brick or masonry walls, you will need
special hardware and tools.
• The ductwork you need for the installation is not
included. All wall and roof caps must have a
back-draft damper (shown in Parts section).
• Wear proper gloves to protect your hands from
injury.
Installing the Microwave
Oven
Step 1: Prepare the Electrical
Connection

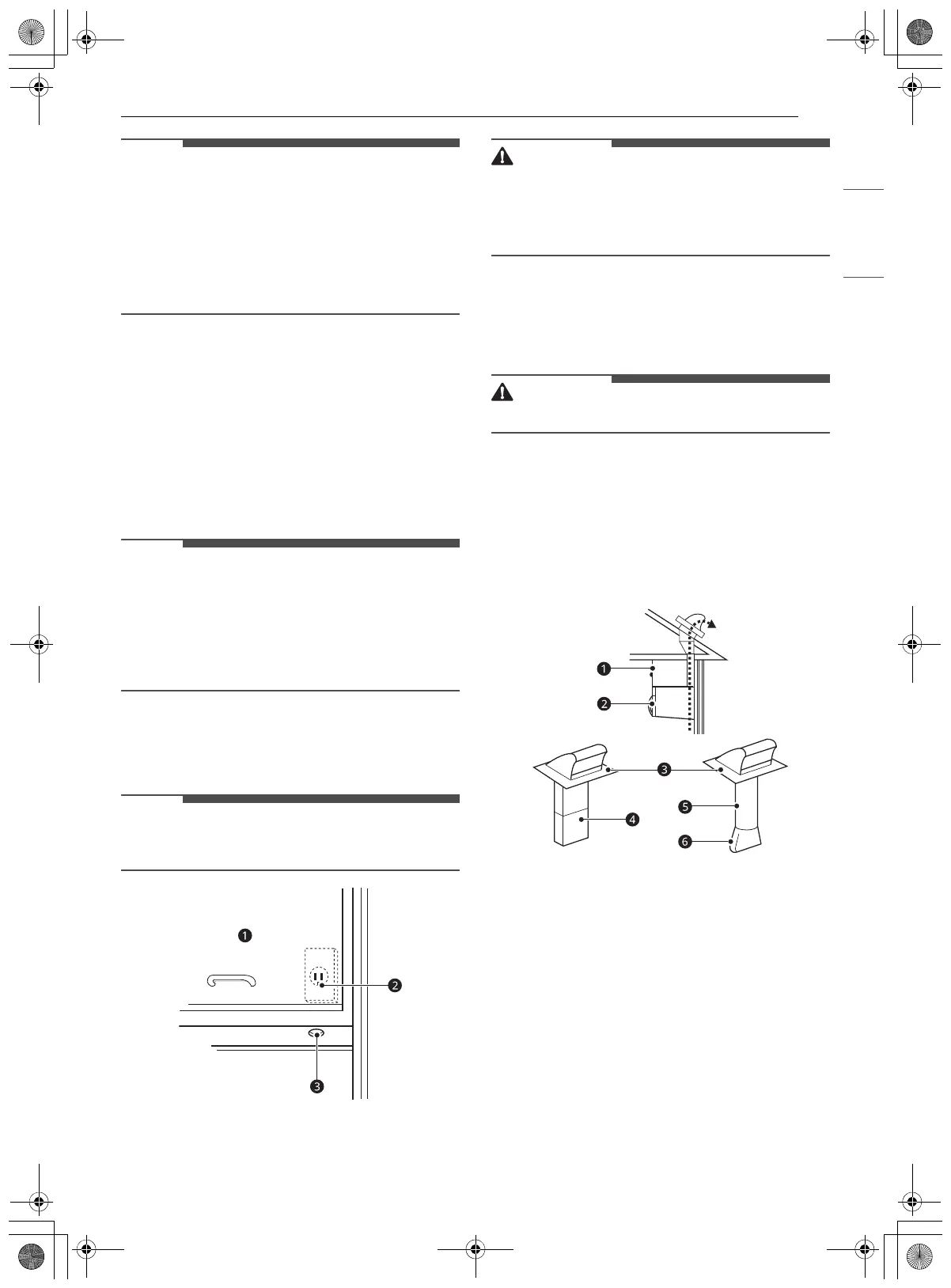

1 Locate the grounded electrical outlet b for
this oven in the upper cabinet a.
• The outlet should be on a circuit dedicated to the
microwave oven (120V, 60 Hz., AC only) with a 15
or 20 A fused electrical supply.
• Important: If you do not have the proper wall
outlet, you MUST have one installed by a
qualified electrician.
2 You will cut the hole c for the power supply
cord later when you prepare the wall and
upper cabinet in Step 4.
• Do not use an extension cord. Keep the power
cord dry and do not pinch or crush it.
• Avoid electric shock. This appliance must be
grounded.
• Improper grounding could result in electric
shock or other personal injury.
Do not, under any circumstances, remove the
power supply cord grounding prong.
Step 2: Prepare the Venting System
• This oven must be properly vented.
You may vent your ductwork in one of three ways.
Do not vent into a wall cavity, an attic, or an
unused area.
Roof Venting
The oven is located on an outside wall near the
roof: 3 1/4" x 10" duct
d or minimum 6" diameter
round duct
e.
a Cabinet
b Oven
c Roof Cap
d 3 1/4" x 10" duct
e Minimum 6" diameter round duct
f 3 1/4" x 10" to 6" round duct transition
