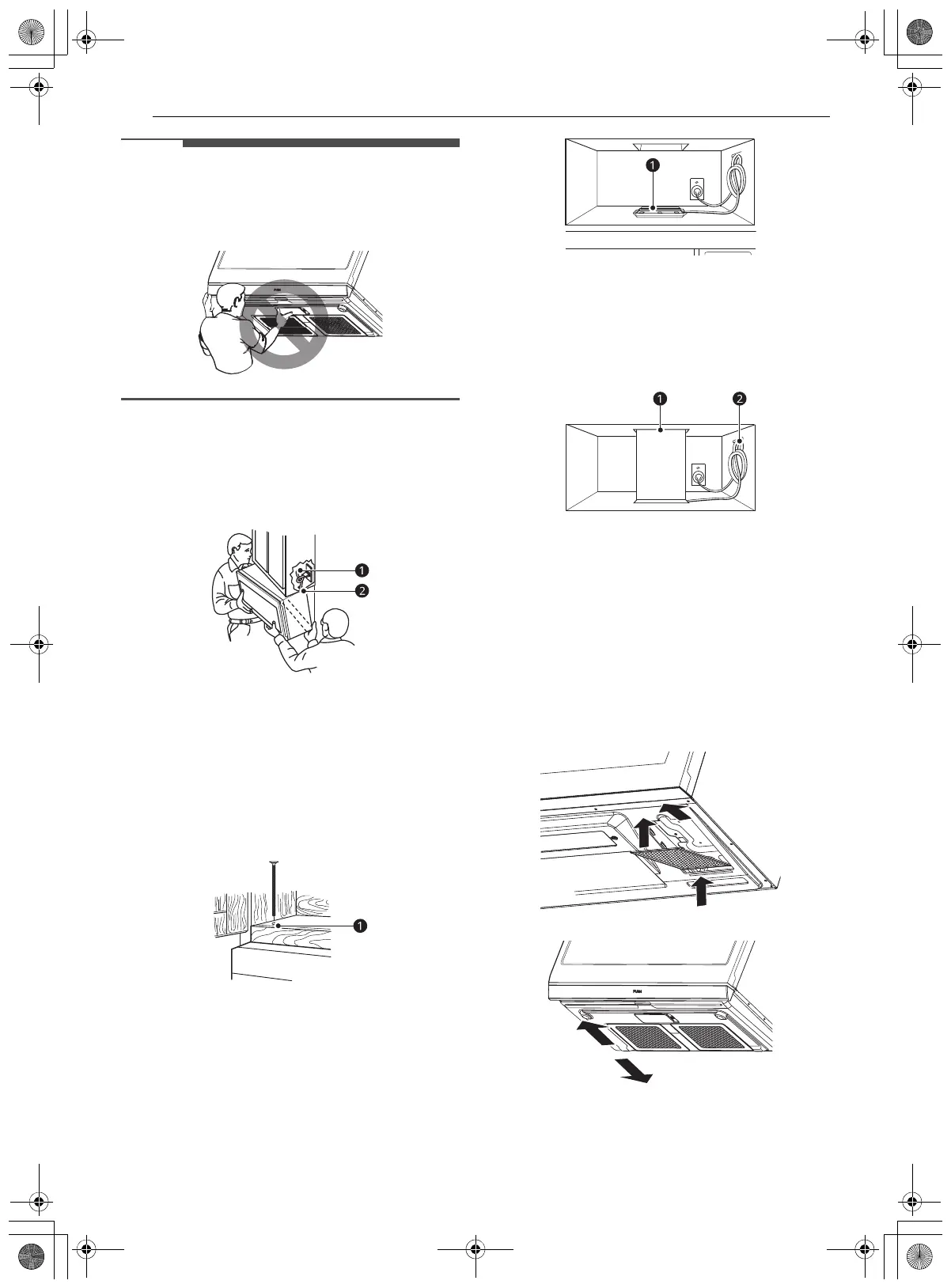

14 INSTALLATION
• Do not remove the packing tape on the slide-out
vent during installation. Once the product is fully
installed, remove the tape and check that the
vent easily slides open and closed with a push.
1 Carefully lift the microwave oven and hang it
on the support tabs at the bottom of the
mounting plate. Reaching through the upper
cabinet, thread the power supply cord
a
through the power supply cord hole b in the
bottom of the upper cabinet.
2 Rotate the microwave oven upward so the top
of the oven is against the bottom of the upper
cabinet or cabinet frame.
3 Then insert a bolt down through each hole a
in the upper cabinet bottom. Tighten the bolts
until the gap between the upper cabinet and
microwave oven is closed.
4 Roof venting installation: Install the ductwork
through the vent opening in the upper
cabinet. Use a caulking gun to seal the
exterior roof opening around the exhaust cap.
a Damper
5 Use the power supply cord clamp b to bundle
the power supply cord. Install the power
supply cord clamp to the inside of the cabinet
using a screw.
a Duct
6 Grasp the filter screen with one hand holding
the ring and the other hand holding the
opposite end. Insert the end of the filter
screen without the ring into the opening and
slide towards the side of the microwave oven.
Insert the ring end of the filter screen into the
opening and slide the entire screen towards
the center of the microwave until the screen is
securely in position. Repeat for the other filter
screen.
