LG NB3532A - Page 37

A
1
2
3
4
5
6
7
8
9
10
11
12
B C D E F G H I J K L M N O P Q R ST
POWER
EAX65067301_4.1.3_MAIN_SD_4
2012.12.20
3-343-33
RECEIVER BAR CIRCUIT DIAGRAMS

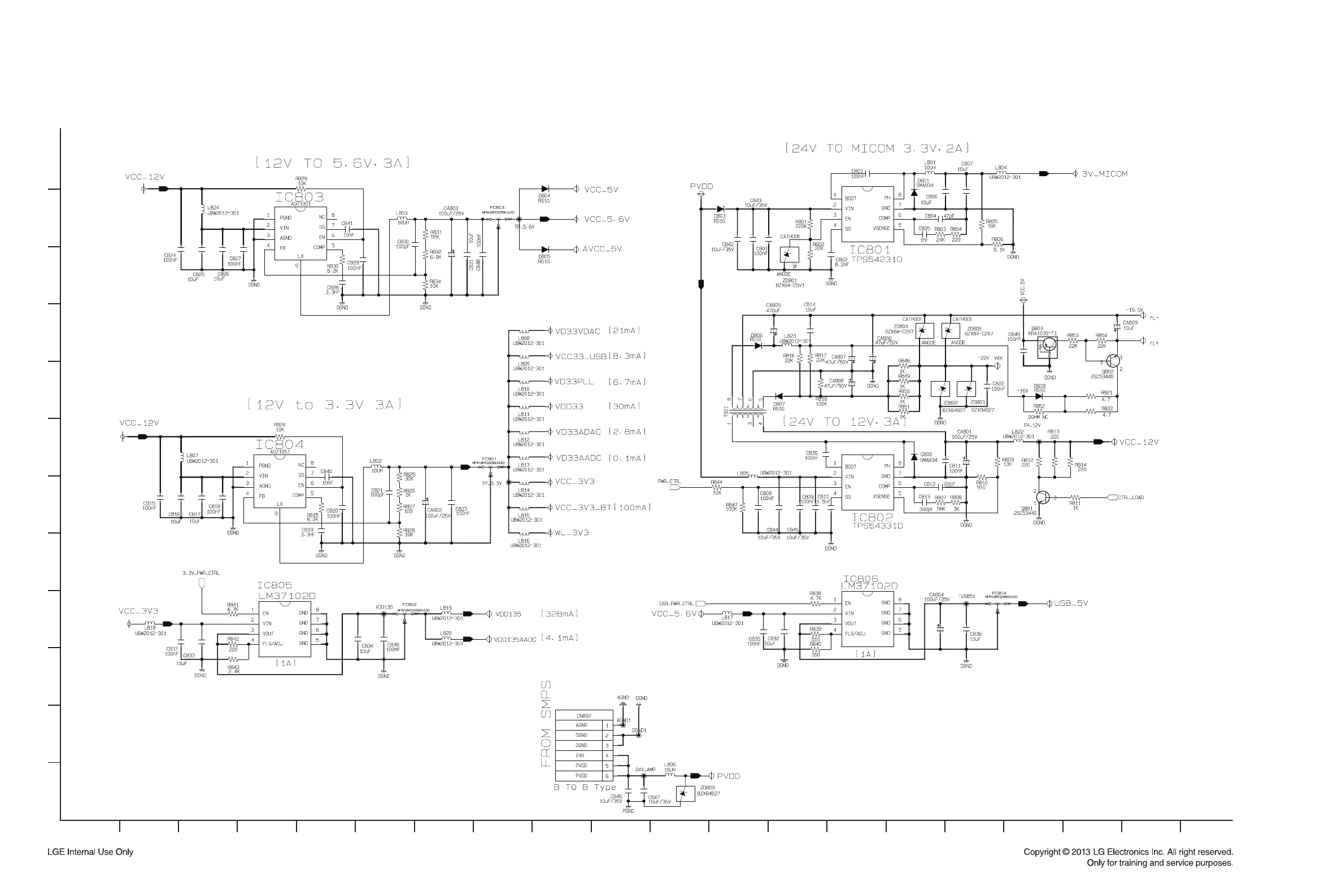

1-5. MAIN-POWER CIRCUIT DIAGRAM
