Standard Repair Process Detail Technical Manual
Revised
date
A1
Error
symptom
Content
Check Vx1 lock
A. Video error_No video/Normal audio
A1

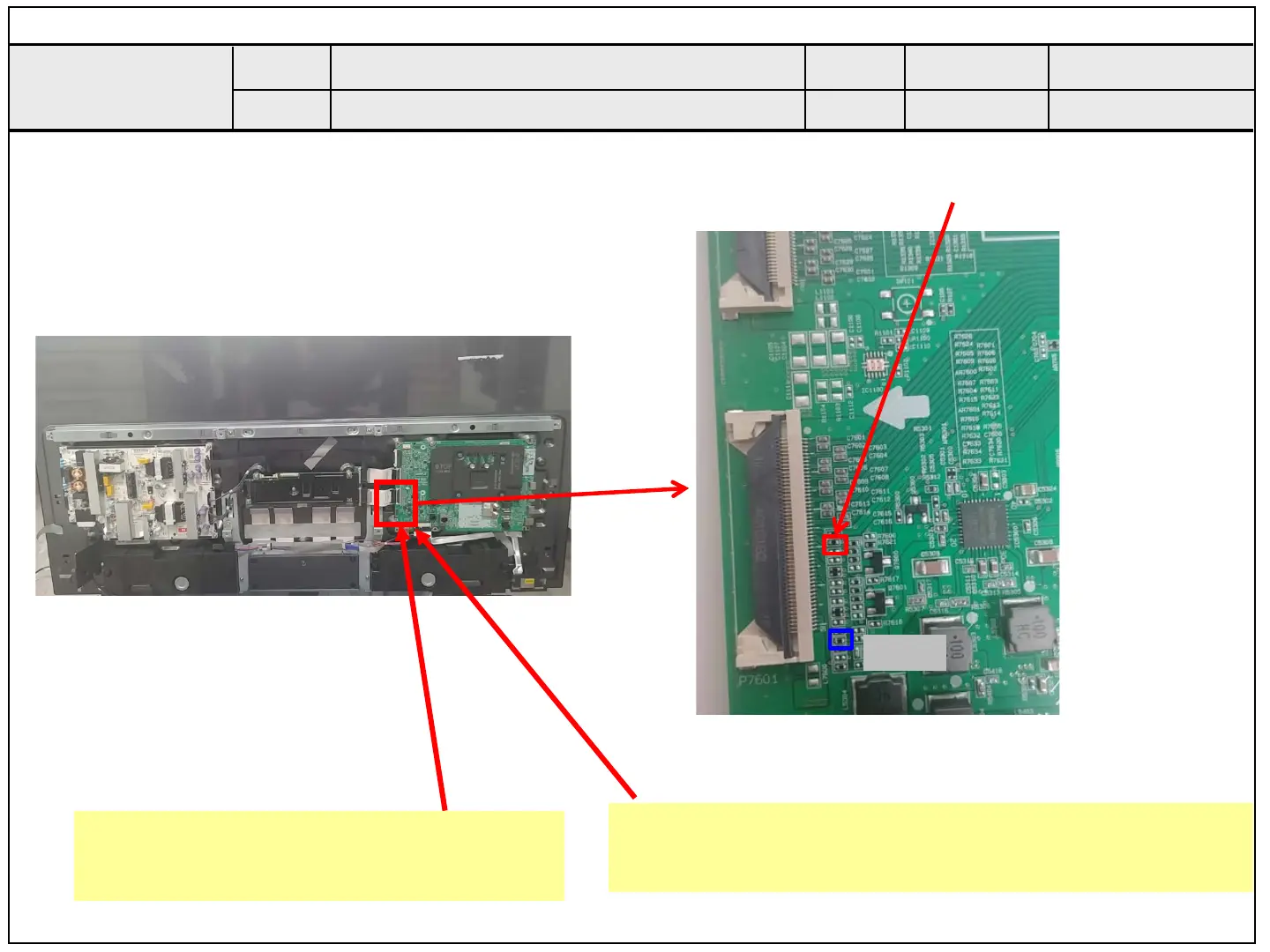

Check a voltage of R7624 (Blue) after turn on
the TV.
If the voltage is low, Vx1 is locked.(OK)
※ Reference: Burnt Detect Measurement Point
Check the voltage of R7632 (Red) while turning on TV power
Low (0V) : Normal, High (3.3V) : Burnt Detect
R7624: TV On -> Low(0V), Vx1 : OK
R7632
To Next Page
