LG OLED48C2 Series User Manual

Established
date
Standard Repair Process Detail Technical Manual
Revised
date
A9
Error
symptom
Content
Check power input voltage and ST-BY 7.8V

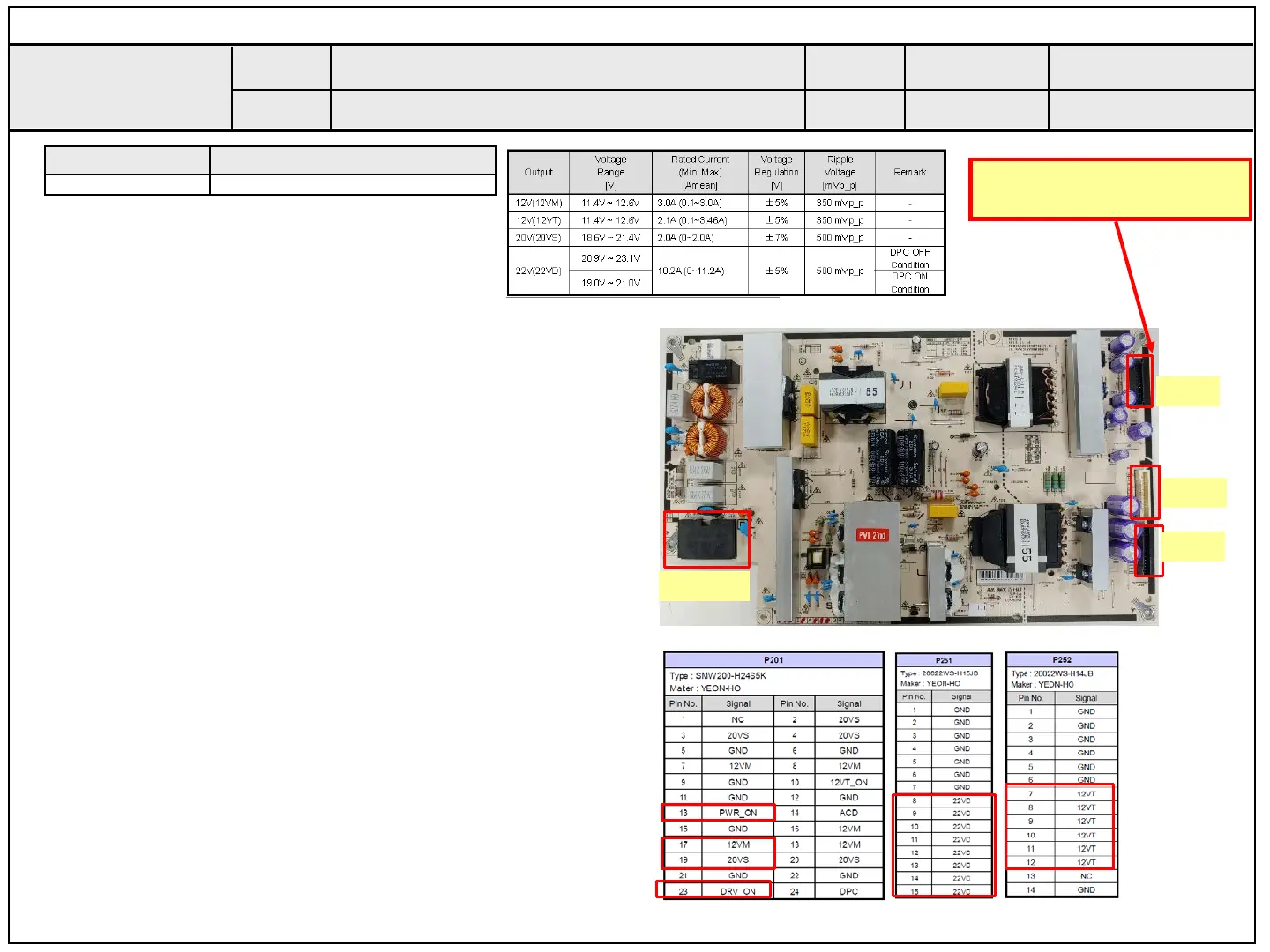

B. Power error _No power
Power Check Sequence
1. AC input Check : 100~240Vac
2. PWR-ON Check : P201
- SET On : above 3V
- SET St-by : 0V
3. 12V Level Check : P201
- SET On : 12V
- SET St-by : 7.8V (swing between 7V to 10V)
4. DRV_ON Check : P201
- SET On : above 2.5V
- SET St-by : 0V
5. T-CON 22V Check : P251
- SET On : above 22V
- SET St-by : 0V
6. T-CON 12V Check : P202
- SET On : above 12V
- SET St-by : 0V
All condition meets, Power Board OK.
A9
SET Model
Power P/N, Name
OLED48C2 EAY65768827, LGP48CX-20OP
DC 12VM Line Check (ST-
BY : 7.8V, Normal : 12V)
AC INPUT
P201
P251
P252

LG OLED48C2 Series Specifications

General

Display Type	OLED
Screen Size	48 inches
Refresh Rate	120Hz
Processor	α9 Gen5 AI Processor 4K
Operating System	webOS
HDMI Ports	4
USB Ports	3
Bluetooth	Bluetooth 5.0
Ethernet	Yes
Audio Output	40W
Resolution	3840 x 2160
HDR	HDR10, Dolby Vision, HLG
Wi-Fi	Wi-Fi 6
VRR	Yes
