LG OLED55B6P

Standard Repair Process Detail Technical Manual
Wifi operation checking method
A15
Established
date
Revised
date
Error
symptom
Content
A15
D. Function error
① ②
P4000
1 GND
2 M_RFModule_RESET
3 NOT USE
4 WOL/WIFI_POWER_ON
5 GND
6 WIFI_DP
7 WIFI_DM
8 3.5V_WIFI

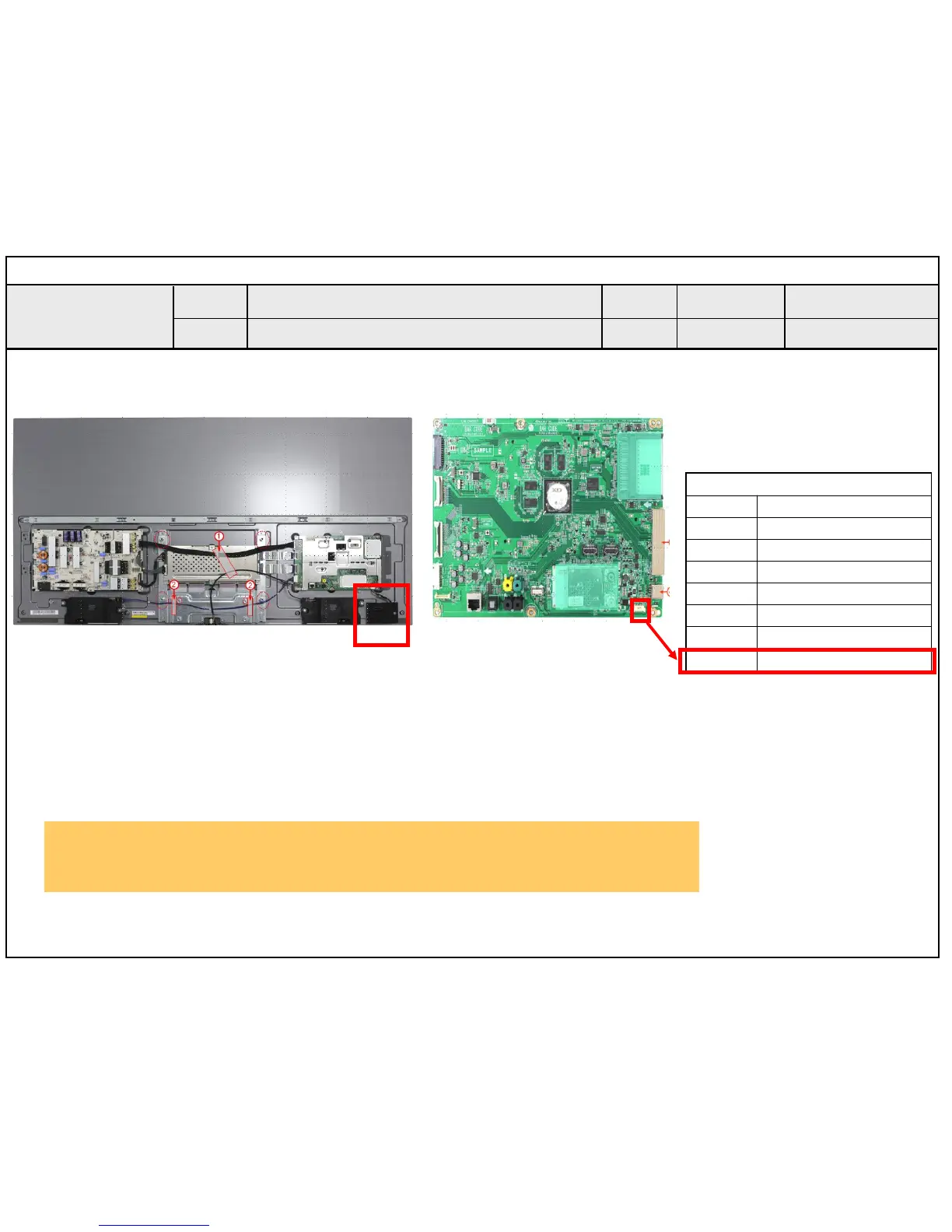

Checking order
1, 2. Check Wifi cable condition between Wifi assy & Main board.
3. Check the 3.3V on the terminal 8.
OLED TV
③
