LG OLED55BXPUA - Page 56

Established
date
Standard Repair Process Detail Technical Manual
Revised
date
A10
Error
symptom
Content
Check power input voltage and ST-BY 3.5V
A10
B. Power error _No power

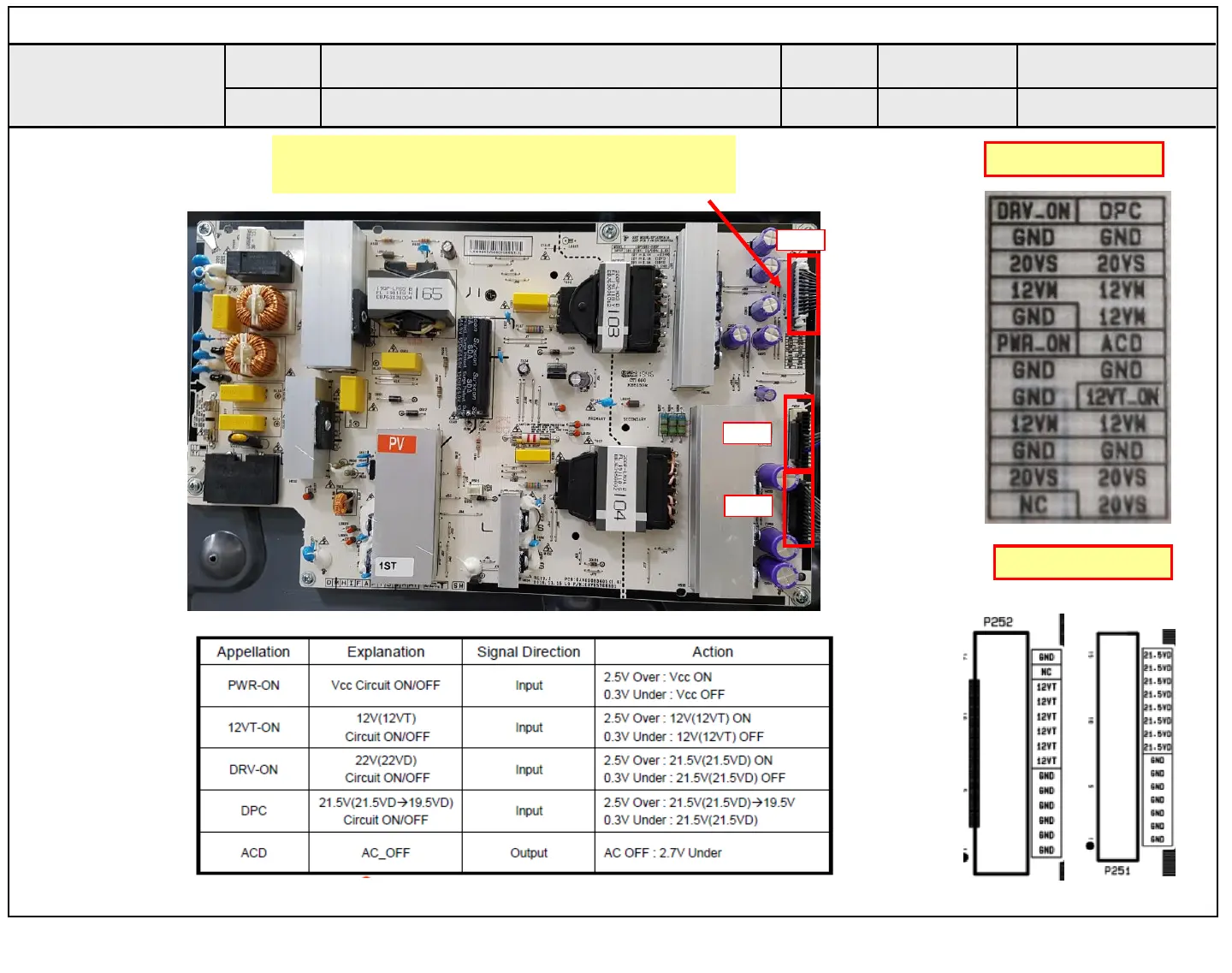

Check 12VM line for ST-BY Voltage
ST-BY status : 7.8V, Power on(DC On) status : 12V
P201
Power To Main B’d
Power To Module
55/65BX
P252
P251
Copyright © 2020 LG Electronics Inc. All rights reserved.
Only for training and service purposes.
