LG OLED55BXPUA - Page 61

Standard Repair Process Detail Technical Manual
Wi-Fi / Motion Remote operation checking method
D. Function error
A16
Established
date
Revised
date
Error
symptom
Content
A16
Checking order

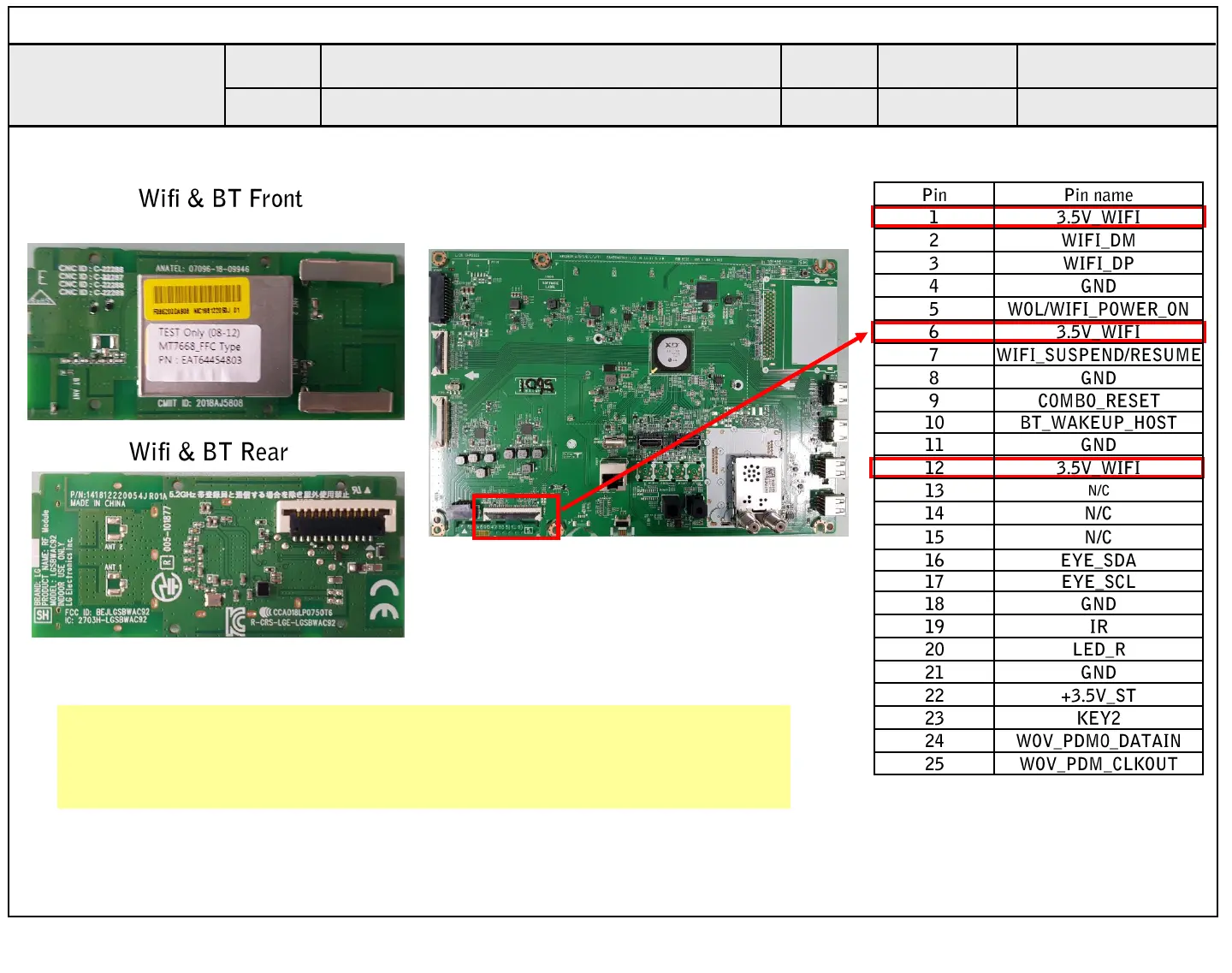

1. Check BT/Wifi cable condition between BT/Wifi assy & Main board.
2. Check the 3.5V on the terminal 1, 6.
③
②
①
